Detail Information

Item:	1313 RGBW	Power:	8W
Color Temperature:	2900-3100K	RA:	90
Current:	150 MA	Voltage:	8-10 V
High Light:	10V Tunable COB LED , 8W Tunable COB LED

Product Description

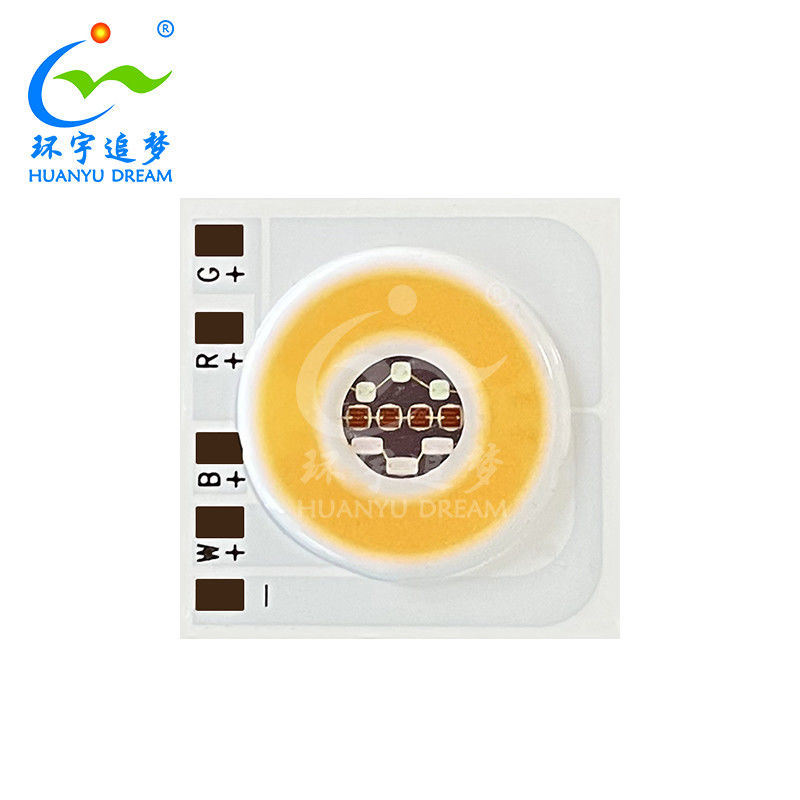

8W 1313 RGBW COB Led Chip Introduction

What is the difference between RGB RGBW and RGBCW/WW

RGB with three-channel LED chips that allow for a custom color mix.

These are perfect for applications where there is no need for a pure white. White light can be achieved with a RGB led chip by mixing the colours equally with equal brightness. However this can be hard to achieve and can cause discolouration. Therefore it is recommended chose a strip with a pure white channel to achieve a clean white colour.

RGBW and RGBCW/WW have one simple difference, RGBW have a single channel of pure white with one colour temperature. RGBCW/WW have a two white channels which allows adjustment between two colour temperatures.

There are a huge amount of colour changing LED strip lights including RGB, RGBW and Colour temperature adjustable LED tape. They all have benefits and limitations for different applications. Therefore it is important to buy the right strip that is suitable for the unique installation.

8W 1313 RGBW COB Led Chip Features

Dimension 13.5mm×13.5mm×1.0mm

Wide viewing angle : 120°

RoHS compliant

sulphation corrosion resistance

Manual Soldering

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 0

8W 1313 RGBW COB Led Chip Package Dimension

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 1

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 2

Red 4S1P

Green 3S1P

Blue 3S1P

White 3S4P

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 3

49PCS/Tray 10Tray/ESD Shieding Bag:490pcs

Electrical - Optical Characteristics at Ta=25℃

Type	Symbol	Test condition	Value			Unit
			Min.	Typ.	Max.
WaveLength(B)	λd	IF=150mA	460	--	470	nm
WaveLength(R)	λd	IF=150mA	620	--	630	nm
WaveLength(G)	λd	IF=150mA	520	--	530	nm
Correlated Colour Temperature	CCT	IF=300mA	2900		3100	k
Luminous Flux(B)	φv	IF=150mA	20		30	LM
Luminous Flux(R)	φv	IF=150mA	70		90	LM
Luminous Flux(G)	φv	IF=150mA	80		100	LM
Luminous Flux(W)	φv	IF=300mA	800		1100	LM
Forward Voltage(B)	VF	IF=150mA	8		10	V
Forward Voltage(R)	VF	IF=150mA	8		10	V
Forward Voltage(G)	VF	IF=150mA	8		10	V
Forward Voltage(W)	VF	IF=300mA	8		10	V
Power(B)	PD	IF=150mA		1.5		W
Power(R)	PD	IF=150mA		1.5		W
Power(G)	PD	IF=150mA		1.5		W
Power(W)	PD	IF=300mA	3		6	W
Thermal resistance	Rth(j-s)	IF=150mA	--	--	0.85	℃/W

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

8W 1313 RGBW COB Led Chip Applications

Smart lighting.

Stage lighting.

Spot light

Down light

General use.

Package Dimension

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 4

Production Process

1313 RGBW 10V 8W Tunable COB LED Adjustable CCT Wide Viewing Angle 5

FAQ

Q1: Are you a factory or a trade company?

We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?
Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?
It will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: How many years of warranty of products you offer? And how do you deal with the LED working issues?
We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q5: Do you accept customized products?
A5: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Tag:

Place of Origin:	China
Brand Name:	HYZM
Certification:	RoHS
Model Number:	HY-1310RGBW30-01-8-D3

Minimum Order Quantity:	1
Price:	5
Packaging Details:	49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Supply Ability:	10000 pcs/month
