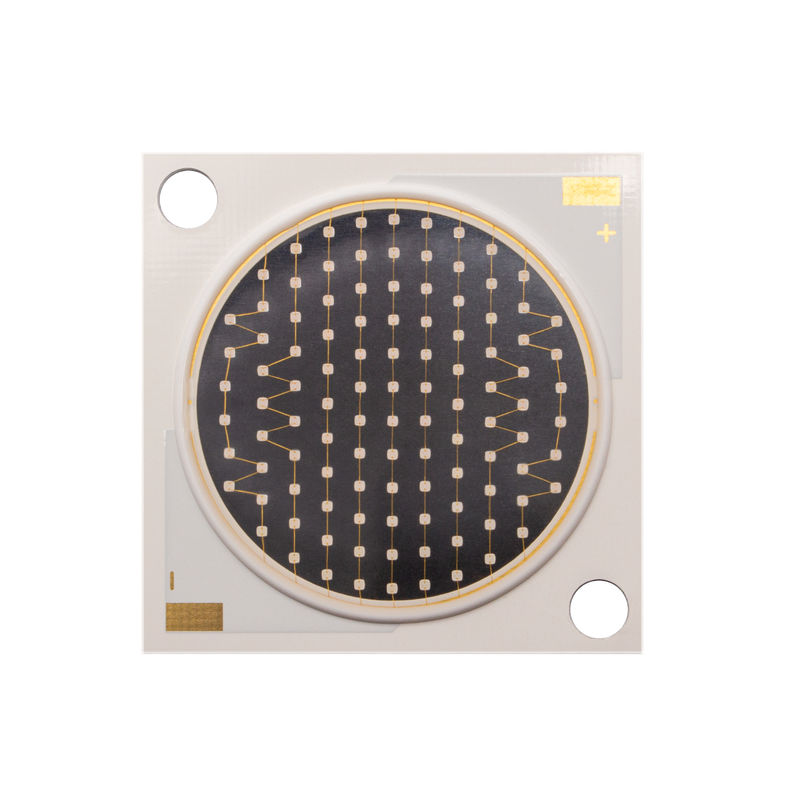

100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY2825-purple
Minimum Order Quantity: 1piece
Price: Negotiated
Packaging Details: 16 pcs/Tray
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 30000 units per day
Detail Information
Product Name: 2825 COB Led Chips Power: 100W
Type: COB Color Rendering Index(ra): 80
Operating Temperature(℃): -40 - +80 Lifespan: 50000 Hours
High Light:

100w COB LED Chip

,

COB LED Chip 2825

,

COB LED Chip 100W


Product Description

2825 COB led chips Features



Advantages of a CoB LED


A single CoB LED can contain hundreds of chips forming a dense array. This dense array enables a CoB LED to produce more light output from a smaller area than is generally possible with an array of packaged LEDs.

Using a single LED can result in simpler design and product as well as providing optical advantages for uniform light and efficient optics.





100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 0



* Dimension 28.0 mm×28.0 mm×1.5 mm

* CRI: 80

* Wide viewing angle : 120°

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering





2825 COB led chips Details

100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 1



100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 2



Product Name
HY02828-57D3-1210B
Material
99.99%, Gold wire, Ceramics
Power
60W
Voltage
36-39V
Current
1500mA
Application
Spot light, flood light, outdoor lighting, track lighting.
Series&Parallel
12S10P
Efficiency(LM/W)
120-150LM/W
SDCM
≤3
Size(MM)
28*28mm
Light Area(mm)
φ23mm



Absolute Maximum Ratings at Ta=25

Parameter Symbol Rating Units
Power Dissipation Pd 100 W
Forward Current IF 2800 mA
Peak Forward Current IFP 3000 mA
Junction temperature Tj 115
Solder temperature Ts 350
Operating Temperature Topr -40 ~ + 85
Storage Temperature Tstg -40 ~ + 100









2825 COB led chips Optica Characteristic curve



100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 3

100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 4





100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 5















2825 COB led chips Applications



* Indoor/outdoor lighting.

* Spot light

* Down light

* General use.

100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 6









Delivery

100w COB LED Chip 2825 Corrosion Resistance Wide Viewing Angle 7



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you test or check all your goods before delivery?

A: Yes, we have 100% test and check all goods before delivery.



Q4: How do you make our business long-term and good relationship?

A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
