5050RGBW SMD LED Chip 0.8W 60mA 4-Channel

Name: 5050RGBW SMD LED Chip 0.8W 60mA 4-Channel
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054RGBW40-0.8W
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY-5054RGBW40-0.8W

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 1000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T,Paypal,Ali Pay

Supply Ability: 200KKpcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                5050RGBW SMD LED chip 4-channel, RGBW SMD LED 0.8W, 5050RGBW LED chip 60mA


Type:	5050RGBW LED CHIP	Power:	0.8W
Voltage:	2.0-2.4V/3.0-3.4V	Current:	60mA*4
White Lumens:	20-24lm	Warranties:	3 Years

Type:	5050RGBW LED CHIP
Power:	0.8W
Voltage:	2.0-2.4V/3.0-3.4V
Current:	60mA*4
White Lumens:	20-24lm
Warranties:	3 Years

5050RGBW SMD LED Chip 0.8W 60mA 4-Channel

Light Strip LED 5050 5054 RGBW 0.2W 0.8W SMD 20mA*4 60mA*4 LED CHIP

Key Specifications

Attribute	Value
Type	5050RGBW LED CHIP
Power	0.8W
Voltage	2.0-2.4V/3.0-3.4V
Current	60mA*4
White Lumens	20-24lm
Warranties	3 years

Product Description

The 5050RGBW four-in-one LED is an SMD (surface mount) LED light source that integrates four chips: red (R), green (G), blue (B) and white (W). Requires a 4-channel controller (independent control of R/G/B/W) to support dynamic effects (gradient, flashing, etc.) or static white light adjustment. Features optimized energy efficiency and wider color display.

Applications

Photography lights
Decorative lighting: LED light strips, ambient lighting, advertising light boxes (both dynamic color and white light)
Architectural lighting: Contour lighting, landscape lighting (using white light to highlight structures and RGB to enhance artistic effects)
Home/commercial lighting: Smart bulbs, downlights (for use in settings requiring a high CRI, such as galleries and retail stores)
Stage lighting

Technical Specifications

Model No.	HY-5054RGBW40-0.8W
LED Package	5.0mm*5.4mm
Data Color	Red \| Green \| Blue \| White
Wave Length	620nm-625nm \| 520nm-525nm \| 460-465nm \| 4000-4500K
Flux	8-12LM \| 16-22LM \| 4-6LM \| 20-24LM
Typical Forward Voltage	2.0-2.4V \| 3.0-3.4V \| 3.0-3.4V \| 3.0-3.4V
DC Forward Current	60mA*4
Typical Power Dissipation	0.8W

Available in a broad range of CCT (2700-6500K). Contact us for specific requirements and wavelength options.

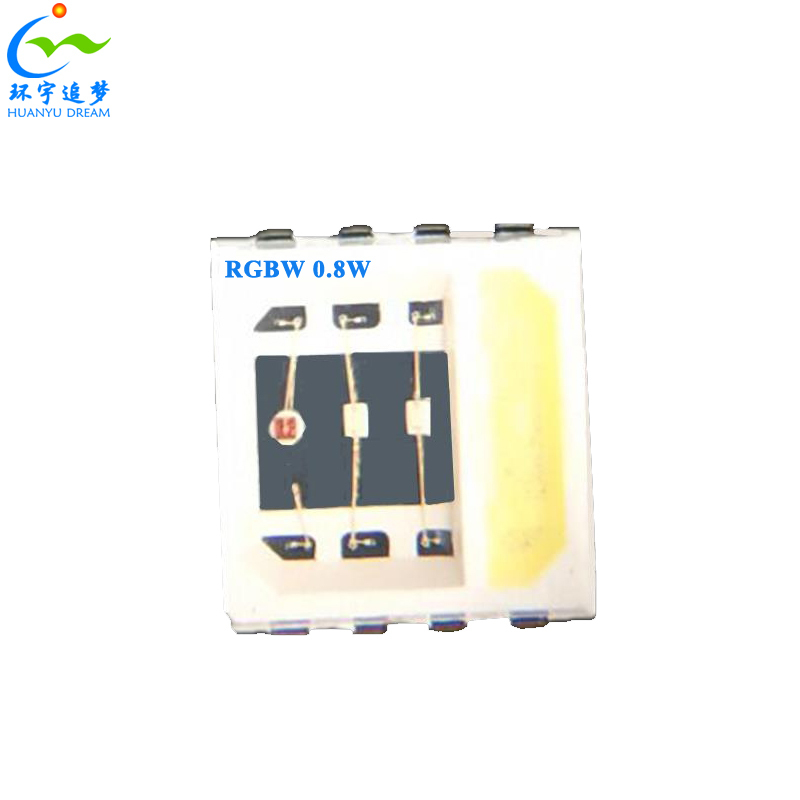

Product Image
