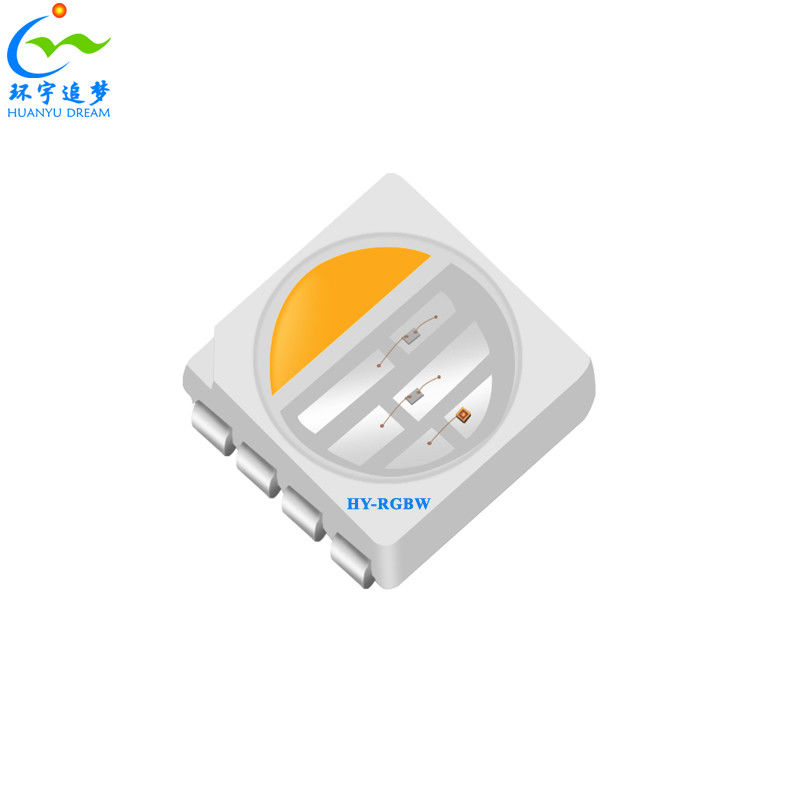

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

Name: 4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054RGBWL160-4S-4W
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY-5054RGBWL160-4S-4W

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 1000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 200KKpcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                High Power Multi Color SMD LED, Multi Color SMD LED 5054, High Power SMD LED 5054


Type:	5054RGBW	Power:	4W
Voltage:	2.0-2.4V/3.0-3.6V	Current:	300mA*4
Warranties:	3 Years	Spanlife:	50000 Hours

Type:	5054RGBW
Power:	4W
Voltage:	2.0-2.4V/3.0-3.6V
Current:	300mA*4
Warranties:	3 Years
Spanlife:	50000 Hours

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

4W 5054 RGBW Smd Led Chip Features

5054 SMD LEDRGBW 4in1
1W monochrome, 4W total 4 channel separate control
Mixing light and color is good
High brightness, High light efficiency.
Small, Convenient and Flexible.

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 0

Electrical/Optical Characteristics (At TA=25°C):

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 1

Parameter		Symbol			Conditions	Min.	Typ.	Max.	Units
DC Forward Voltage	VF		R	IF=300mA		2.0	2.2	2.4	V
			G	IF=300mA		2.8	3.0	3.2
			B	IF=300mA		3.0	3.2	3.4
			W	IF=300mA		3.0	3.2	3.4
Viewing Angle		2Θ1/2			IF=300*4mA	--	120	--	Deg

Main wavelength	λD		R	IF=300mA		620	--	625	nm
			G	IF=300mA		520	--	525
			B	IF=300mA		455	--	460
	CCT		W	IF=300mA		2900	--	3100	K
Luminous flux	Ф		R	IF=300mA		25	--	30	Lm
			G	IF=300mA		50	--	60
			B	IF=300mA		12	--	17
			W	IF=300mA		75	--	85

Absolute Maximum Rating(At TA=25°C):

Parameter	Symbol	Value	Units
Operating current range	IF	300*4	mA

Junction Temperature	TJ	125	°C

Operating Temperature Range	TOPR	-20°C To +85°C

Pacakage Dimension(Units:mm)

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 2

5054 RGBW Appliation

High Power LED Lamp
Down light, wall lamp, garden light
Stage lighting
Spot lighting, ceiling light
Decorative lighting, show lighting Landscape lighting, lighting engineering

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 3

About US

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 4

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 5

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White 6

Advantages

Good quality guarantee, 50000 hours lifespan, 3 years warranty.

Professional engineers and experienced workers.

Short delivery time, normally 1-7 working days.

Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.

Service

· Reply your inquiry within 12 working hours

· Well-trained and experienced staffs to answer all your inquiries in fluent English.

· Strict quality control procedures before shipment.

· Customized design is available.OME and ODM are welcomed

· Delivery the goods to our customer all over the world with speed and precision.
