Home > products > Multi Color SMD LED > 5050RGBW 5054 PLCC8 High Power RGB LED Chip 2W 4W 3 Years Warranty

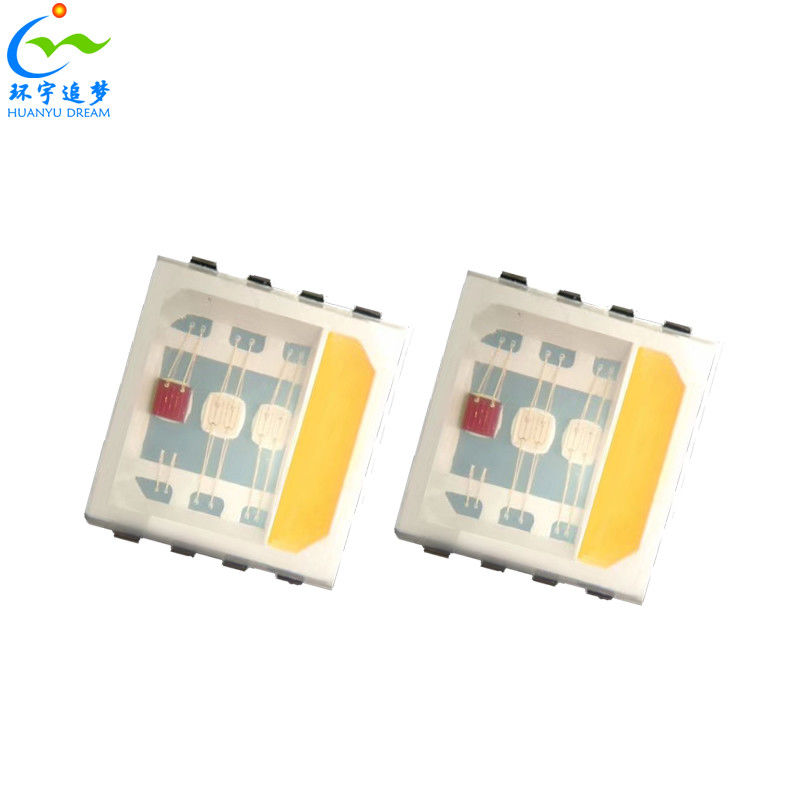

5050RGBW 5054 PLCC8 High Power RGB LED Chip 2W 4W 3 Years Warranty

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY-5054RGBW

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 1000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 200KKpcs/Month

Get Best Price
Highlight:

5050 RGBW LED

,

High Power RGB LED Chip 2W

,

PLCC8 High Power RGB LED Chip

Type:
5054RGBW 4 IN 1
Power:
2W
Voltage:
2.0-2.4V/3.0-3.6V
Current:
150mA*4
White Lumens:
58-63lm
Warranties:
3 Years
Type:
5054RGBW 4 IN 1
Power:
2W
Voltage:
2.0-2.4V/3.0-3.6V
Current:
150mA*4
White Lumens:
58-63lm
Warranties:
3 Years
5050RGBW 5054 PLCC8 High Power RGB LED Chip 2W 4W 3 Years Warranty

5050RGBW 4 in 1 LED CHIPS 2W  4W

     HuanYu Dream  5054 SMD LED RGBW 4in1, availiable in 0.3W, 0.8W, 2W, 4W. 4 channel separate control,  Mixing light and color is good, With High brightness and high light efficiency.



 Appliation

  • High Power LED Lamp
  • Down light, wall lamp, garden light
  • Stage lighting
  • Spot lighting, ceiling light
  • Decorative lighting, show lighting Landscape lighting, lighting engineering







Model No.

RGBW SMD 5054 LED

HY-5054W40-2W

LED Package 5.0mm*5.4mm
Data Color Red Green Blue White
Wave Length 625nm-635nm 520nm-530nm 465nm-475nm 4000-7000K
Flux 20-25LM 33-38LM 10-12LM 58-63LM
Typical Forward Voltage 2.0-2.4V 3.0-3.4V 3.0-3.4V 3.0-3.4V
DC Forward Current 150mA*4
Typical Power Dissipation 2W





Model No.

RGBW SMD 5054 LED

HY-5054W40-4W

LED Package 5.0mm*5.4mm
Data Color Red Green Blue White
Wave Length 625nm-635nm 520nm-530nm 465nm-475nm 4000-7000K
Flux 38-43LM 75-80LM 17-19LM 120-130LM
Typical Forward Voltage 2.0-2.4V 3.0-3.4V 3.0-3.4V 3.0-3.4V
DC Forward Current 300mA*4
Typical Power Dissipation 4W
Emitting Color RGB W
Viewing angle 120°
Operating Temperature -40℃~+100℃
Storage Temperature -40℃~+100℃

 Note: Available in a broad range of CCT 2600-7000K) ,you can contact me for specific requirement and wavelength







Pacakage Dimension(Units:mm)
