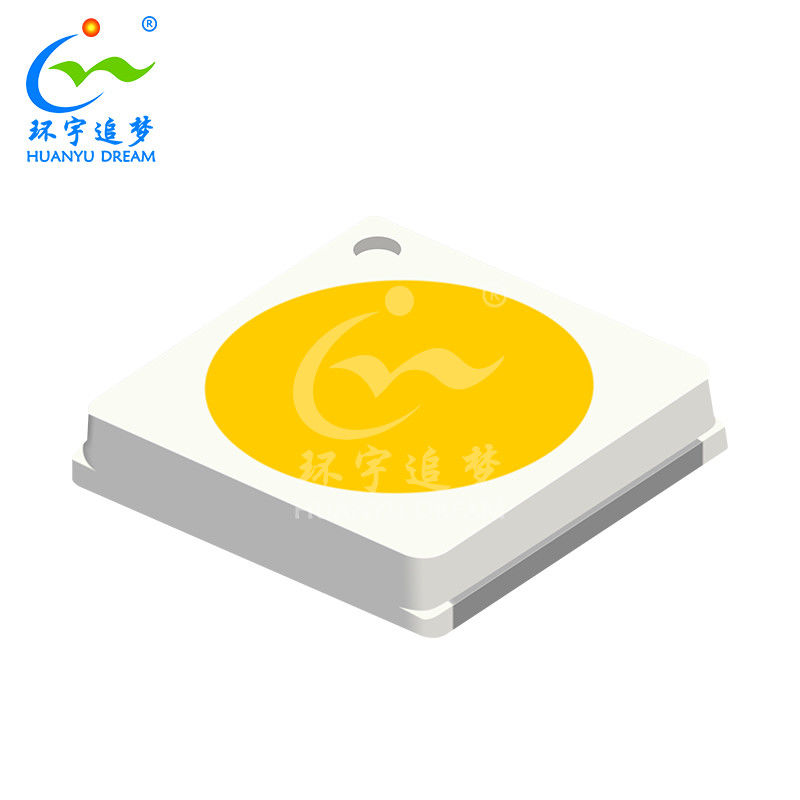

EMC3030 SMD LED Chip 200lm/W-210lm/W With Excellent Heat Dissipation

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-3030W40A140-2S
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 5000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
CRI: 80Ra LED Type: EMC 3030 SMD LED Chip
Voltage: 3.0-3.2V IF: 300mA
Lumen: 170-180LM Efficiency: 180-195LM/W
Color(CCT): 6000-6500K Life Span: 50000hrs
Warranty: 3years Customized: Availabe
High Light:



3030 SMD LED Chip 200lm/


RoHS 3030 SMD LED Chip

Product Description

EMC 3030 High Light Efficieny 200-210lm/W SMD Chip Leds With Excellent Heat Dissipation


3030 EMC 1W 3V 6V SMD LED Chip with Low Energy Consumption


       HuanYu Dream EMC 3030 SMD LED Chip with high efficiency 200-210lm/W, passing a series of environmental and    mechanical stress testes.It is the economic light source for lighting applications.




  • EMC Pacakage with high quality

  • Super High efficiency 200-210lm/W

  • Long life-solid quality reliability

  • Suitable for all SMT assembly methods

  • 99.9% Pure gold wire

  • Round LES

  • RoHS Compliant


Product Specifications:


Color     CCT(K)     VF(V)




   CRI Luminous Flux(lm) Luminous Efficiency(lm/w)  Part number


Warm White


2800-3200K 3V/6V 300/150mA 70/80 140-150 150-160 HY-3030W28A140-2S


Natural White


4000-4500K 3V/6V 300/150mA 70/80 150-160 170-180 HY-3030W40A150-2S




4800-5200K 3V/6V 300/150mA 70/80 160-170 180-190 HY-3030W48A160-2S




5500-6000K 3V/6V 300/150mA 70/80 180-200 200-210 HY-3030W55A170-2S


Cool White


6000-6500K 3V/6V 300/150mA 70/80 160-180 180-200 HY-3030W60A160-2S


Product Dimmensions(Tolerance:+/-0.1, Unit:mm)

EMC3030 SMD LED Chip 200lm/W-210lm/W With Excellent Heat Dissipation 0



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.


Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places


Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.


Q8: What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .
