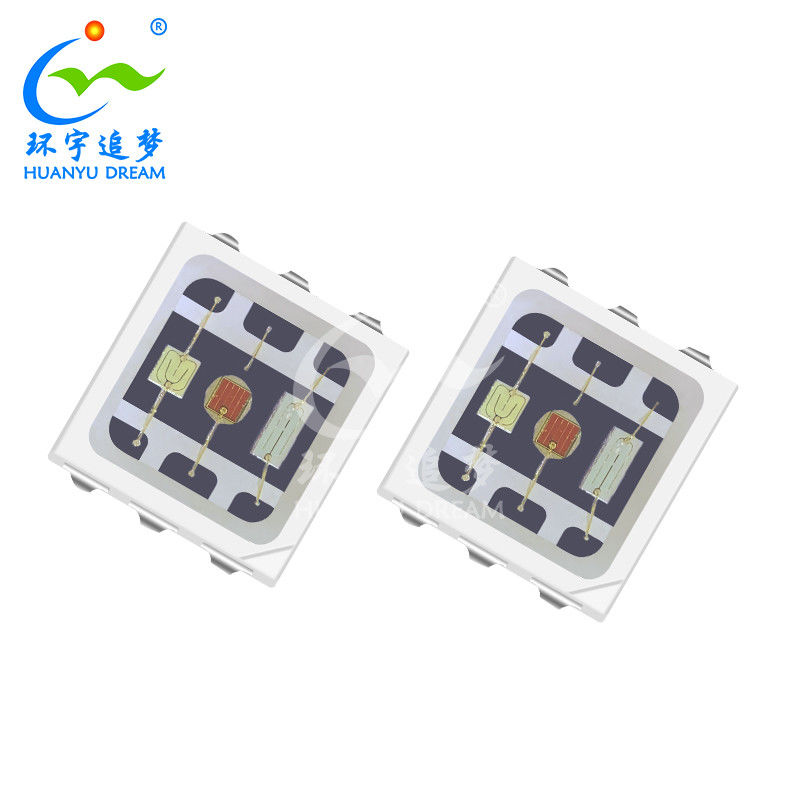

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle
1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle
Basic Information
Place of Origin: Guangdong,China
Brand Name: Huanyu Dream
Certification: RoHS
Model Number: HY-3030RGB
Minimum Order Quantity: 100
Price: negiotated
Packaging Details: 5000 pcs/reel
Delivery Time: 10-15 Working Days
Supply Ability: 200KKpcs/Month
Get Best Price Contact Now
Detail Information
Type: 3030 RGB Power: 1.5W
Wavelength: Red: 620-630nm, Green: 520-530nm, Blue: 460-470nm Viewing Angle: 120°
Storage Temperature: -40℃~+100℃ Current: 150*3mA
High Light:

1.5W Multi Color SMD LED

,

Multi Color SMD LED 3030

,

RGB SMD LED Chip 3030

Product Description



1.5 Watts 3030 LED Chip 3 IN 1 RGB SMD LED 3030 Rgb Smd Led



3030 Rgb Smd Led introduction



  • 1.5W version and 1.5W Version 3030 RGB SMD LED Chip are available
  • 3 in 1 3030 RGB SMD LED with Good color consistency
  • Low power consumption, cost effective
  • Package Size:3.0(L)x3.0(W)x0.6(H)mm
  • 99.99% gold wire welding





3030 Rgb Smd Led Specification

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 01.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 1

Models

HY-3030RGBL30-3S-0.5W

 HY-3030RGBL65-3S-1.5W
Electronic power 0.5W 1.5W
Wavelength Red: 620-630nm Blue: 460-470nm Green: 520-530nm Red: 620-630nm Blue: 460-470nm Green: 520-530nm
VF 3.0-3.4V 3.0-3.4V
IF 60mA*3 150mA*3
Lumen R:8-10LM    G:15-20LM     B:4-5LM R:20-25LM   G:35-45LM   B:10-14LM
Bracket types PCT EMC
WHOLE SIZE 3.0*3.0mm 3.0*3.0mm
CHIP Sanan/Epistar/Epileds Epileds/Sanan/Epistar
View angle 120° 120°
Warranty 3years 3years
Leading time 7-15Days 7-15Days





Electrical - Optical Characteristics at Ta=25℃



Type

Symbol

Test condition

Value

Unit



Mix

Typ

Max

Forward Voltage

VF

IF=150*3mA

G

2.8



3.2

V

R

2.0



2.4

B

2.8



3.2

Luminous Flux

φ

IF=150*3mA

G

35

40

45

Lm

R

15

20

25

B

10

12

14

Dominant Wavelength

λD

IF=150*3mA

G

520

525

525

nm

R

620

625

630

B

455

460

465

Reverse Current

IR

VR=5V









uA

Viewing Angle

2θ1/2







120



Deg

Thermal resistance

Rth(j-s)











℃/W



Absolute Maximum Ratings at Ta=25℃

Parameter

Symbol

Rating

Units

Power Dissipation

Pd

1500

mW

Forward Current

IF

150*3

mA

Peak Forward Current

IFP

180*3

mA

Reverse Voltage

VR

5

V

Junction temperature

Tj

115

℃

Solder temperature

Ts

260

℃

Operating Temperature

Topr

-40 ~ + 85

℃

Storage Temperature

Tstg

-40 ~ + 100

℃

Electrostatic Discharge(HBM)

ESD

2000

V



Optica Characteristic curve

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 2





Product Dimmensions(Tolerance:+/-0.1, Unit:mm)





1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 3







Packaging Specifications

  • The LEDs are packed in cardboard boxes after taping
  • Carrier Tape Dimensions(Uns:mm)

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 4



  • Reel Dimension

1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 5



3030 RGB Appliation

  • Buliding/Outdoor lighting

    Downlight, Wall lamp, Garden lighting
  • Stage lighting, Strip light, Signal light
  • Spot lighting, Ceiling lighting
  • Decorative Lighting, Lighting Engineering
  •



1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 6







About US





1.5W Multi Color SMD LED 3 IN 1 RGB SMD LED Chip 3030 120° Viewing Angle 7









Service

· Reply your inquiry within 12 working hours
· Well-trained and experienced staffs to answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Delivery the goods to our customer all over the world with speed and precision.



Advantages



1. Good quality guarantee, 50000 hours lifespan, 3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.
