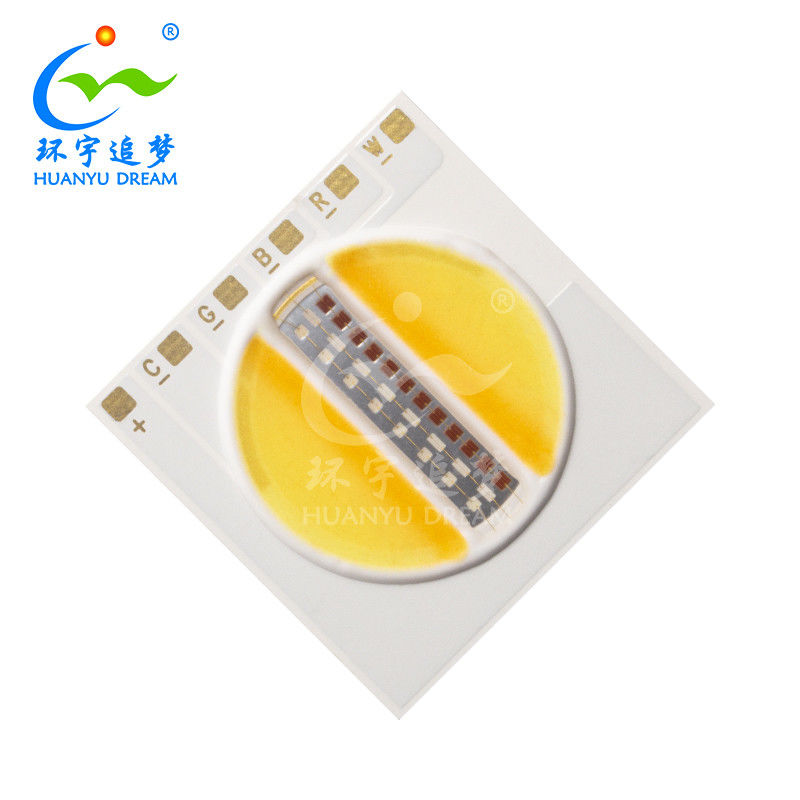

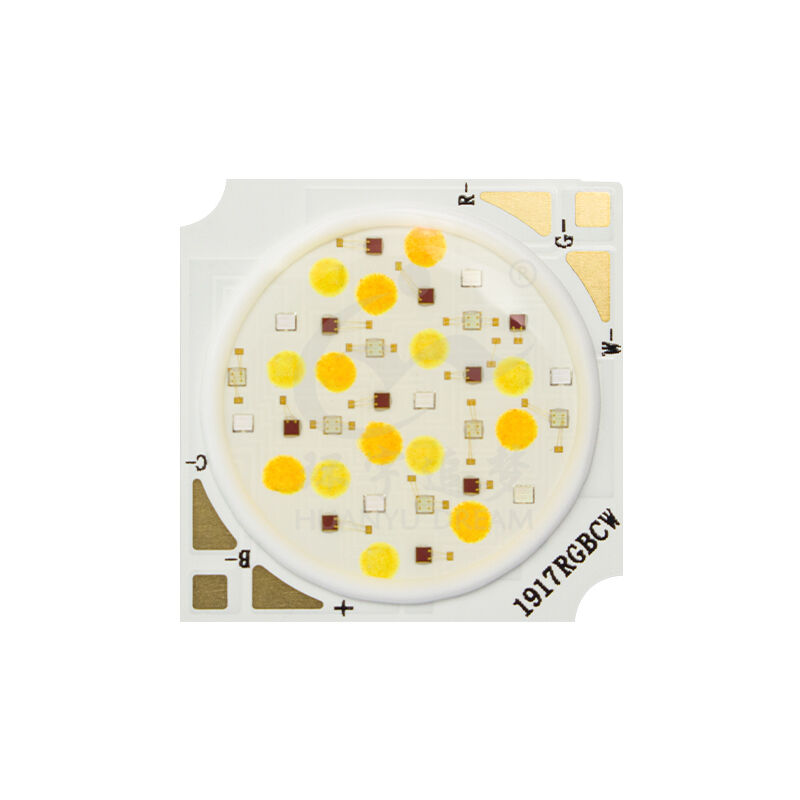

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip
High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip
Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-1917RGBCW-3060-25-01-D5
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 25pcs/Tray
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500K/Month
Get Best Price Contact Now
Detail Information
Type: 1919 RGBCW LED COB Chip Size: 19*19mm
Color Temperature: RGB+2700/6500K Voltage: 20-24V
Current: RGB:150mA/ W:300mA Led Light Source: COB
Power: 25W
High Light:

High Power Tunable COB LED

,

Tunable COB LED RGBCW

,

24V LED COB Chip

Product Description



1919 Cob Rgbcw Cob Led Chip 5 In 1 Cob High Power Cob 25W 20-24V



1919 rgbcw cob led chip 5 in 1 cob high power cob Features



This RGBCW COB led strip has both RGB color and tunable CCT white light color with the LED color temperature range from 2800K soft white to 6500K daylight (also called pure white). Multi colors in one.



High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 0

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 1







  • RGBCW COB LED Chip combined 5 colors in 1 LED Chip
  • RGBCW COB LED is with Common Anode design and it's more convenient for color dimming
  • Adjustable CCT Dynamic COB LED Chip have advantages in space utilization, efficiency, control, diversity and reliability, and can better meet the needs of different applications
  • Availiable with 1313/ 4021/ 4026 RGBW
  • Ra80 Ra90 Ra95, max Ra98
  • Customize made according to your request





High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 2





















Package Dimension

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 3

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 4











  Green 7S1P
Red 10S1P
Blue7S1P
WW 7S2P
CW  7S2P







Electrical - Optical Characteristics at Ta=25℃

Type

Symbol

Test condition

 Value

Unit
Min. Typ. Max.
WaveLength(B) λd IF=150mA 460 -- 465 nm
WaveLength(R) λd IF=150mA 620 -- 630 nm
WaveLength(G) λd IF=150mA 520 -- 530 nm
Correlated Colour Temperature cw CCT IF=300mA 6000   6500 k
Correlated Colour Temperature w CCT IF=300mA 2900   3100 k
Luminous Flux(B) φv IF=150mA 50   70 LM
Luminous Flux(R) φv IF=150mA 180   220 LM
Luminous Flux(G) φv IF=150mA 220   260 LM
Luminous Flux(W) φv IF=300mA 700   900 LM
Luminous Flux(CW) φv IF=300mA 800   1000 LM
Forward Voltage(B) VF IF=150mA 20   24 V
Forward Voltage(R) VF IF=150mA 20   24 V
Forward Voltage(G) VF IF=150mA 20   24 V
Forward Voltage(W) VF IF=300mA 20   24 V
Forward Voltage(CW) VF IF=300mA 20   24 V
Power(B) PD IF=150mA 3   4 W
Power(R) PD IF=150mA 3   4 W
Power(G) PD IF=150mA 3   4 W
Power(W) PD IF=300mA 6   7 W
Power(W) PD IF=300mA 6   7 W
Thermal resistance Rth(j-s) IF=150mA -- -- 1 ℃/W








Absolute Maximum Ratings at Ta=25℃



Parameter  Symbol Rating Units
Junction temperature  Tj 115 ℃
Solder temperature  Ts 350 ℃
Operating Temperature  Topr -40 ~ + 85 ℃
Storage Temperature  Tstg -40 ~ + 100 ℃







Application



High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 5









Production Process

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 6

High Power Tunable COB LED RGBCW 25W 20V-24V LED COB Chip 7







Advantages


1. Good quality guarantee, 50000 hours lifespan, 3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.



Service

· Reply your inquiry within 12 working hours
· Well-trained and experienced staffs to answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Delivery the goods to our customer all over the world with speed and precision.
