Detail Information

Types:	HY-3528Green	Wavelength:	520-525nm
Voltage:	3.0-3.2V	IF:	20mA
IFP:	50mA	Lumens:	7-9lm
Customized:	Availabe
High Light:	Green 3528 LED Chip , RoHS 3528 LED Chip , Brightest LED Chip 3528

Product Description

Ultra Brightness 3528 SMD Green 520-525nm 0.06W Shipping By DHL

Name: Brightest Green 3528 LED Chip 520nm-525nm Customized Availabe
Brand: HuanYu Dream
SKU: HY-3528Green
Rating: 4.7 (129 reviews)

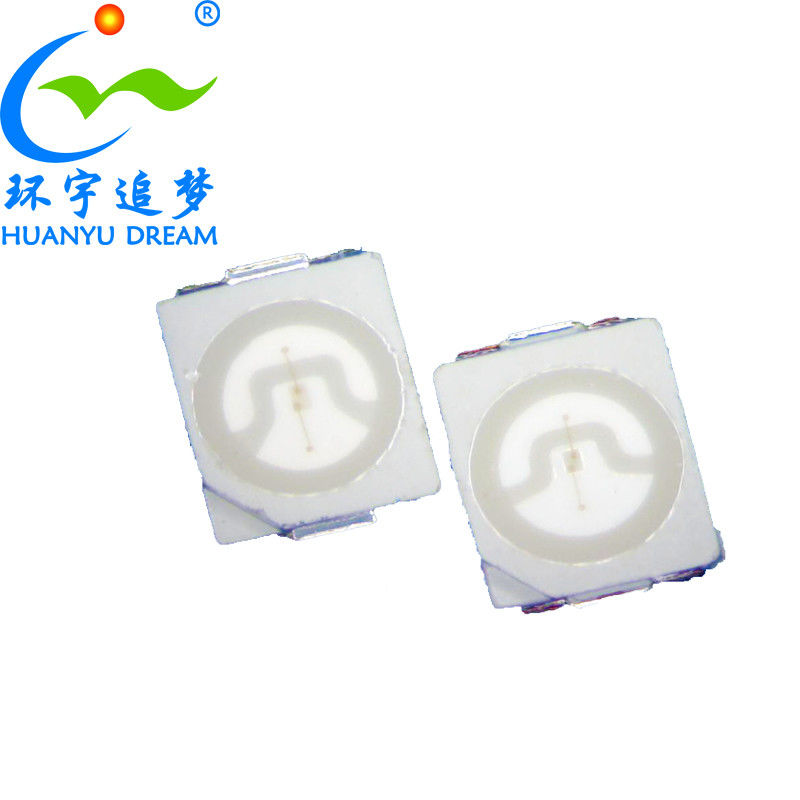

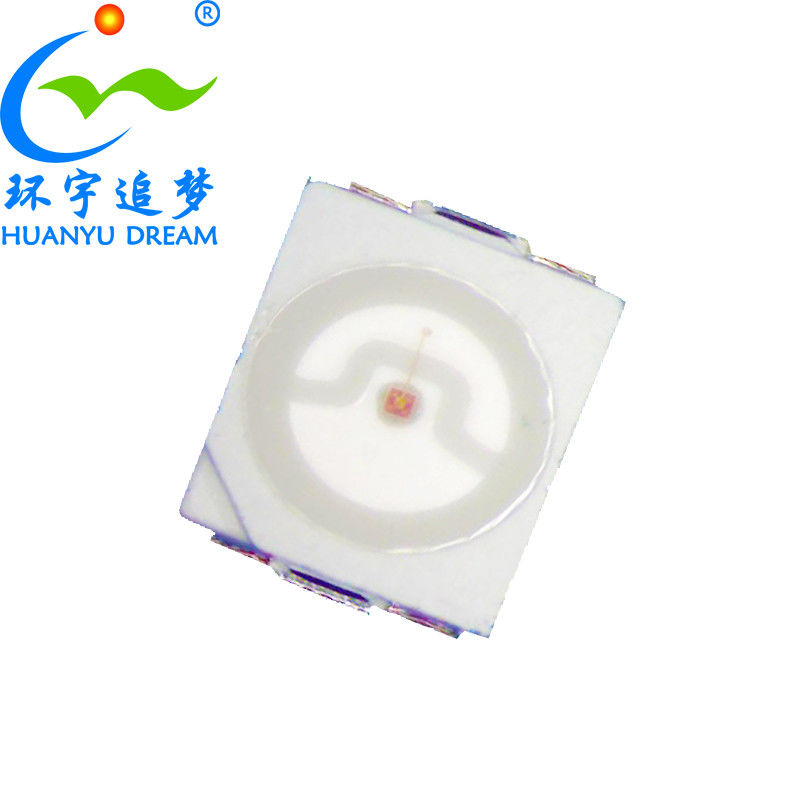

3528 0.06W Green Colors 520-525nm SMD LED Chip

HuanYu Dream 3528 SMD LED Chip is the price/performance leader for commercial indoor slutions compare to the cost and efficiency. Typical PLCC-2 type white smd led, Compact SMD design with high brightnes, Consistent Color and Smooth environment, Widely apply in Decorative lighting, Light Strip,Commercial Illuminate and displays: Advertising words, light box; Garden lighting; Led back lighting; and fit for different working environment

Product Features

Package Size:3.5(L)x2.8(W)*1.8(H)mm
Wide colors: Red; Green; Blue; UV; Orange; Yellow; Amber.. Also provide 3528RGB
Copper base with ultra stability
Super long lifetime:>30000hrs

Product Specifications

Electronic power	0.06W
Color	Green (520-525nm)
VF	3.0-3.2V
IF	20mA
Chip Brand	Sanan
LUMINUOUS EFF	7-9lm
Chip size(mil)	8*15mil

Absolute Maximum Ratings (TA=25ºC)

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	20	mA
Pulse Forward Current	IFP	50	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	100	mW
Operating Temperature	Topr	-40ºC To +85ºC	°C
Storage Temperature	Tstg	-40ºC To +85ºC	°C
Soldering Temperature	Tsld	Reflow Soldering: 260ºC Hand Soldering : 350ºC	for 10sec. for 3sec.

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Test Report

Brightest Green 3528 LED Chip 520nm-525nm Customized Availabe 1

Packaging(Units:mm)

Taping Specifications

Brightest Green 3528 LED Chip 520nm-525nm Customized Availabe 2

Reel Dimension

Brightest Green 3528 LED Chip 520nm-525nm Customized Availabe 3

FAQ

Q1. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .

Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.

Q4. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Brightest Green 3528 LED Chip 520nm-525nm Customized Availabe 4

Tag:

Place of Origin:	China
Brand Name:	HuanYu Dream
Certification:	RoHS
Model Number:	HY-3528Green

Minimum Order Quantity:	2000pcs
Price:	Negotiable
Packaging Details:	2000pcs/Reel
Delivery Time:	7-9 Work Days
Payment Terms:	T/T, Paypal,Ali Pay
Supply Ability:	500kpcs/Day
