Detail Information

Type:	3528 Smd Led Chip	Voltage:	2.8-3.2V
Current:	20mA	Ra:	70
Color:	3000-3500K	Viewing Angle(°):	120
High Light:	High Power 3528 LED Chip , 3528 LED Chip 0.06W , 20mA 3V LED CHIP

Product Description

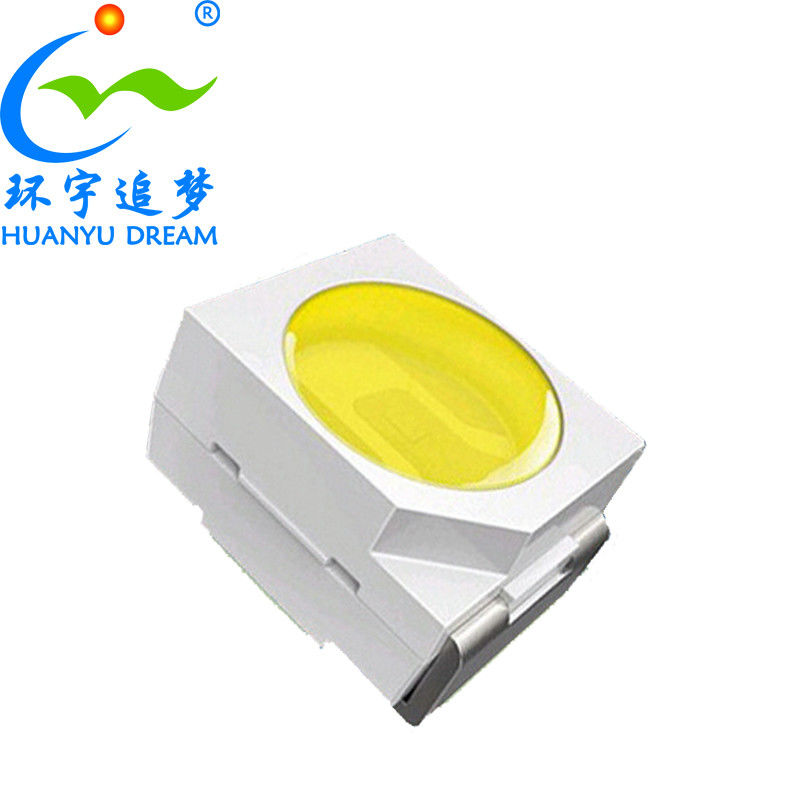

3528 Smd Led Chip 0.06W 20mA 3V White Smd Led

3528 Smd Led Chip Features

Package Size:3.5(L)x2.8(W)*1.8(H)mm
Compact SMD design with high brightness
Copper base with ultra stability
Consistent Color and Smooth environment
Super long lifetime:>30000hrs

3528 Smd Led Chip Specification

HuanYu Dream 3528 SMD LED Chip is the price/performance leader for commercial indoor slutions compare to the cost and efficiency. CRI from 80-95Ra.
Typical PLCC-2 type white smd led
Wide CCT Range 2300K-20000K
Rohs compliant
Suitable for different working environment

3528 Smd Led Chip Details

Electronic power	0.06W
Color temperature	3000-3500K	4000-4500K	6000-6500K	6500-7000K
VF	2.8-3.0V	2.7-2.9V	3.0-3.2V	3.0-3.2V
IF	20mA	20mA	20mA	20mA
CRI	70	70	80	70
LUMINUOUS EFF	8-10lm	8-10lm	8-10lm	8-9lm
Warranty	3 years

3528 Smd Led Chip Product Dimension (Tolerance:+/-0.1mm. Unit:mm)

High Power 3528 LED Chip 0.06W 20mA 3V LED CHIP White 3 Years Warranty 2

Electrical / Optical characteristics

(1) Absolute Maximum Ratings (TA=25±5ºC)

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	20	mA
Pulse Forward Current	IFP	50	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	100	mW
Operating Temperature	Topr	-40ºC To +85ºC	°C
Storage Temperature	Tstg	-40ºC To +85ºC	°C
Soldering Temperature	Tsld	Reflow Soldering: 260ºC Hand Soldering : 300ºC	for 10sec. for 3sec.

(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol	Item	Units	Min.	Typ.	Max.	Test Conditions
VF	Forward Voltage	V	3.0	3.2	3.4	IF=20mA
IR	Reverse Current	uA	-	-	5	VR=5V
2θ½	Viewing Angle	º	-	120º	-	IF=20mA
ø	Luminous flux	lm	7		8	IF=20mA
IV	Light intensity	mcd	2200		2500	IF=20mA
WLD	Color Temperature	K	6000		6500	IF=20mA

3528 Smd Led Chip Application

High Power LED Lamp
Indoor lighting: Fluorescent lamp, tube
Commercial Illuminate and displays: Advertising words, light box
Decorative Lighting: Light Strip
Other illuminations
Led back lighting

High Power 3528 LED Chip 0.06W 20mA 3V LED CHIP White 3 Years Warranty 4

High Power 3528 LED Chip 0.06W 20mA 3V LED CHIP White 3 Years Warranty 5

High Power 3528 LED Chip 0.06W 20mA 3V LED CHIP White 3 Years Warranty 6

High Power 3528 LED Chip 0.06W 20mA 3V LED CHIP White 3 Years Warranty 7

FAQ

Q1: Are you a factory or a trade company?
A: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?

A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?

A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?

A4: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?

A: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: How to process the order?

A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.

2. We will send you the quotation and check the stock.

3. We will send you proformer invoice after you confirm the samples.

4. You make the payment after checking the details.

5. We will arrange the delivery and continue to provide you the best service.

Tag:

Place of Origin:	China
Brand Name:	HuanYu Dream
Certification:	RoHS
Model Number:	HY-3528W60A7-1S

Minimum Order Quantity:	2000pcs
Price:	Negotiable
Packaging Details:	2000pcs/Reel
Delivery Time:	7-9 Work Days
Payment Terms:	T/T, Paypal,Ali Pay
Supply Ability:	500kpcs/Day
