products

Flip Chip 24V Constant Voltage 3-12W 2700-6500K COB LED High Luminous Eff 130-140lm/W

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-1310W40-7C1B-3-D0
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 49pcs/carton
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 50000pcs/Day
Detail Information
Type: HY-1310W40-7C1B-3-D0 Color Temperature: 4000K
Voltage: 24V CV Current: 150mA
Power: 3W CRI: 80
Luminous Eff: 130-140Lm/W
High Light:

24V Constant Voltage COB LED

,

2700-6500K Constant Voltage COB LED

,

3-12W Constant Voltage COB LED


Product Description

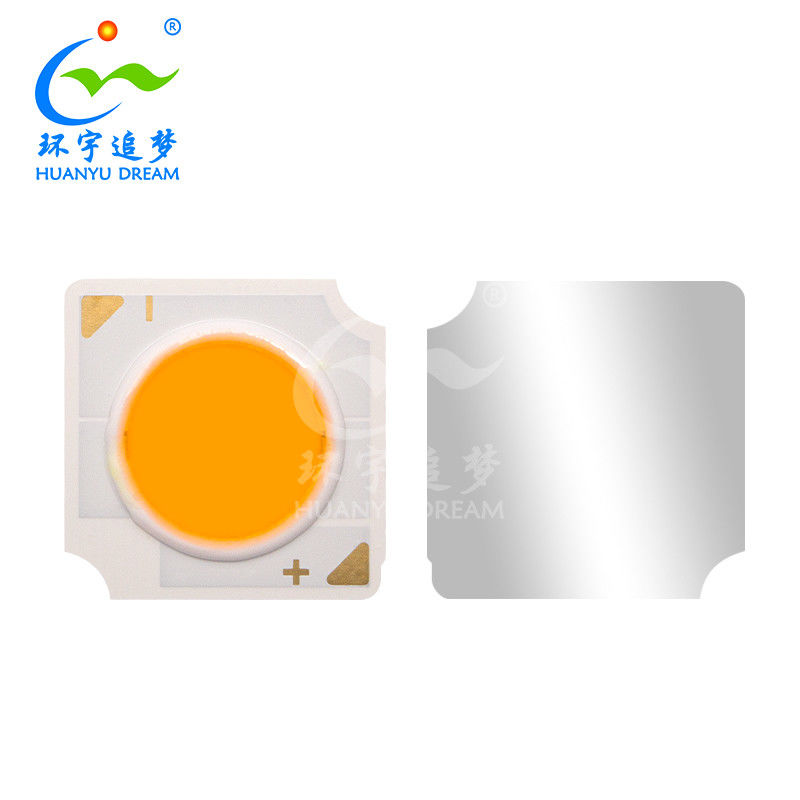

Flip Chip 24V Constant voltage 3-12W 2700-6500K COB LED

Product Features

  • Long service life
  • Use Radiation Free
  • Flip chip , easy to install
  • Small size, low power consumption, good directivity
  • Down light/ Spot light/ pendant light/ so on



Product Specification

Model No.

Power

Voltage Current(mA) CRI CCT
 HY-1310W40-7C1B-3-D0 3W 24 150mA 80Ra 4000K
HY-1310W30-7C2B-6-D0 6W 24 250mA 80Ra 3000K
HY-1310W65-7C2B-9-D0 9-10W 24 400mA 80Ra 6500K
HY-1310W50-7C4B-12-D0 12W 24 500mA 80Ra

5000K







Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Flip Chip 24V Constant Voltage 3-12W 2700-6500K COB LED High Luminous Eff 130-140lm/W 0

Flip Chip 24V Constant Voltage 3-12W 2700-6500K COB LED High Luminous Eff 130-140lm/W 1

Flip Chip 24V Constant Voltage 3-12W 2700-6500K COB LED High Luminous Eff 130-140lm/W 2

Service
· Reply your inquiry within 12 working hours
· Well-trained and experienced staffs to answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Delivery the goods to our customer all over the world with speed and precision.
