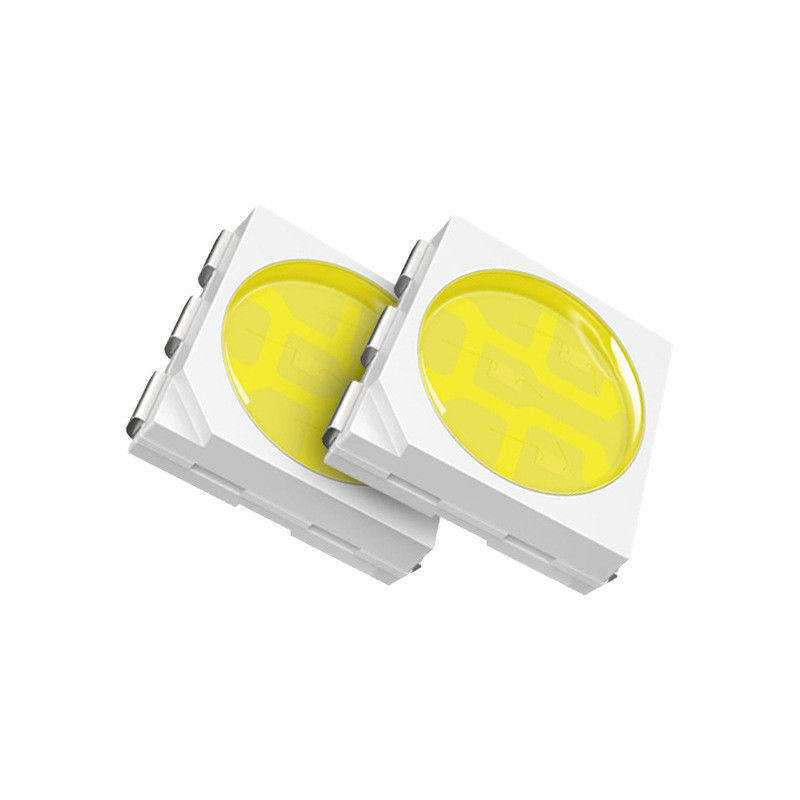

Name: White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5050W
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: RoHS

Model Number: HY-5050W

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 1000pcs/Roll

Delivery Time: 7-9 Work Days

Supply Ability: 500Kpcs/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                5050 SMD LED Chip 0.2W, White 5050 SMD LED Chip, White LED CHIP  60mA


Type:	5050 Smd Led	Power:	0.2W
Current:	60mA	Wire:	Gold Wire Material
Colloid Color:	Yellow	Emission Color:	White

Type:	5050 Smd Led
Power:	0.2W
Current:	60mA
Wire:	Gold Wire Material
Colloid Color:	Yellow
Emission Color:	White

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light

Led SMD 5050 0.2W 60mA White Color 5050 Smd Led For Smart Led Light

5050 SMD led Features

Size:5.0(W)*5.0(L)*1.55(H)
0.2W 6pins, 3chip inside
High Luminous Efficiency
Factory Price
White colors are available in 2600-100000K
RoHS Certification
Consistent Color
Suitable at different working environment

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light 0

5050 SMD led Specifications

(1) Absolute Maximum Ratings (TA=25±5ºC)

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	60	mA
Pulse Forward Current	IFP	90	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	300	mW
Operating Temperature	Topr	-40ºC To +85ºC	°C
Storage Temperature	Tstg	-40ºC To +85ºC	°C
Soldering Temperature	Tsld	Reflow Soldering: 260ºC Hand Soldering : 350ºC	for 10sec. for 3sec.

(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol	Item	Units	Min.	Typ.	Max.	Test Conditions
VF	Forward Voltage	V	3.0		3.4	IF=60mA
IR	Reverse Current	uA	-	-	10	VR=5V
2θ½	Viewing Angle	º	-	120º	-	IF=60mA
ø	Luminous flux	lm	14		16	IF=60mA
TC	Colour Temperature	k	2400		2600	IF=60mA
RA	Color Rendering Index	Ra	70		75	IF=60mA

5050 SMD led Measurement

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light 2

Package (1000PCS/Reel)

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light 3

Application

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light 5

White 5050 SMD LED Chip 0.2W 60mA White For Smart Led Light 6

FAQ

Q1: What is the MOQ?

A: Our MOQ is 1 piece .We can do OEM/ODM if you need.

Q2: How can I order samples?

A:We can send you samples if you need.You should paythe sample fee and freight. Shen

The sample fee will be refunded after order Manu

Q3: How to process the order?

A: 1. Let us know your requirement.

2.We make a quotation and provide our advice

3.We will make a PI after you confirm the quotation.

4. You make the payment after check the details.

5. We arrange the delivery asap.

Q4: How many days do you need for preparing order?

A:We need 5-7 days for normal order,Custom product cycle is 10-15 days

Q5: How many years of warranty of your products?

A: We offer 3 year warranty time. If there is any problem (No man-made damage) during the warranty time, please contact us and we will change or repair them for you for free.
