Detail Information

Type:	7070 Smd Led Chip	Voltage:	9.0-9.3V
Current:	350mA	Lumen:	550-570LM
Color:	3900-4100K	Power:	5W
Feature:	High Efficiency	Warranty:	3 Years
High Light:	High Efficiency 7070 LED Chip , 7070 LED Chip 4000K , SMD CHIP LED 5W

Product Description

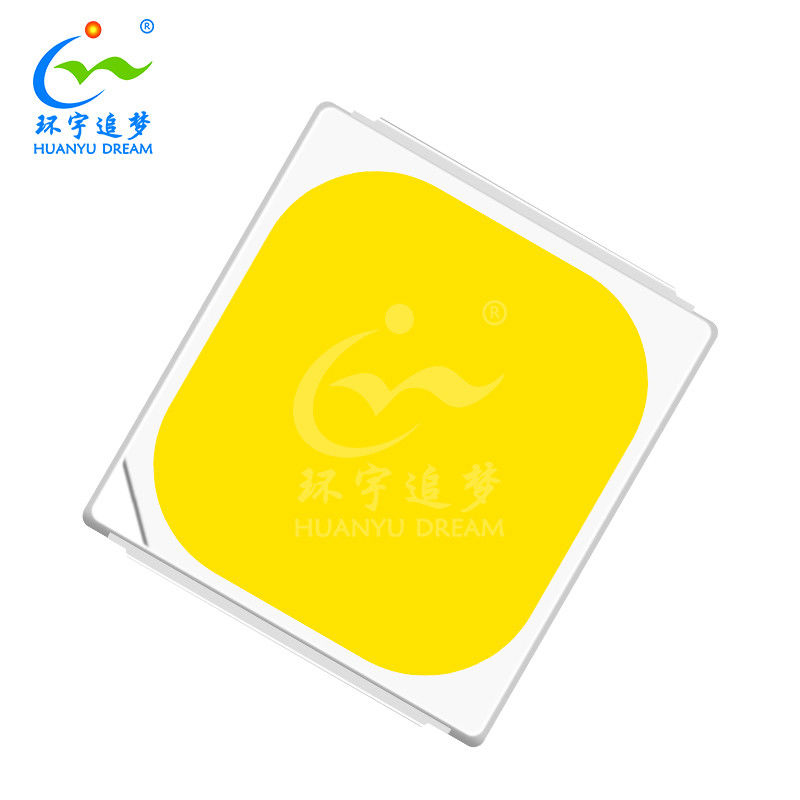

High Efficiency High Light 7070 Smd Led Chip With Wide Range Of CCTs

High Efficiency 7070 Smd Led Chip

High light output and efficacy in a robust multi-die package, enabling cost-effective system designs for demanding applications.

FEATURES

Superior lm/W enables outstanding efficacy in end application
Extremely reliable package design affirms long lifetime in harsh environments
Low Rth enables effective thermal dissipation design for higher efficiency
3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformity
Offered in different voltage options for customer design flexibility
Wide range of CCTs from 2700K to 20000K and CRI from 80-97Ra.
Power available in 4-15W

Specifications

Electronic power	3W
Current(IF)	@350mA
VF	9.0-9.3V
Lminous	550-570lm
CRI	80
Color temperature	4000K
Luminous Efficiency	190-200lm/W
WHOLE SIZE	7.0*7.0mm
CHIP	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years
Leading time	7-10days

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

High Efficiency 7070 LED Chip 4000K 550lm-570lm With CCTs Wide Range 0

Product Application

Street light
Indoor lighting: Fluorescent lamp, tube
Commercial Illuminate and displays: Advertising words, light box
Decorative Lighting: Light Strip
Retrofit lighting or Other illuminations

FAQ

Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2013.

Q: Would you offer free samples?
A:Yes, We would offer free samples for test quality at first.

Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.

Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.

Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Tag:

Place of Origin:	China
Brand Name:	HuanYu Dream
Certification:	Rohs
Model Number:	HY-7070W40-2235-33-L550-

Minimum Order Quantity:	4000pcs
Price:	Negotiable
Packaging Details:	4000pcs/Reel
Delivery Time:	7-9 Work Days
Payment Terms:	T/T, Paypal,Ali Pay
Supply Ability:	500000pcs/Day
