High Brightness 2835 SMD LED Chip 160LM -170LM 1W White Color

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-2835W40L160-2S
Minimum Order Quantity: 4000pcs
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Package: 2835 Color: 4000K
Lumen: 160-170LM CRI: Ra80
Voltage: 3V Current: 300mA
Customized: Availabe Viewing Angle(°): 120
High Light:

High Brightness 2835 SMD LED Chip

,

2835 SMD LED Chip 160LM

,

SMD LED Chip 1W


Product Description

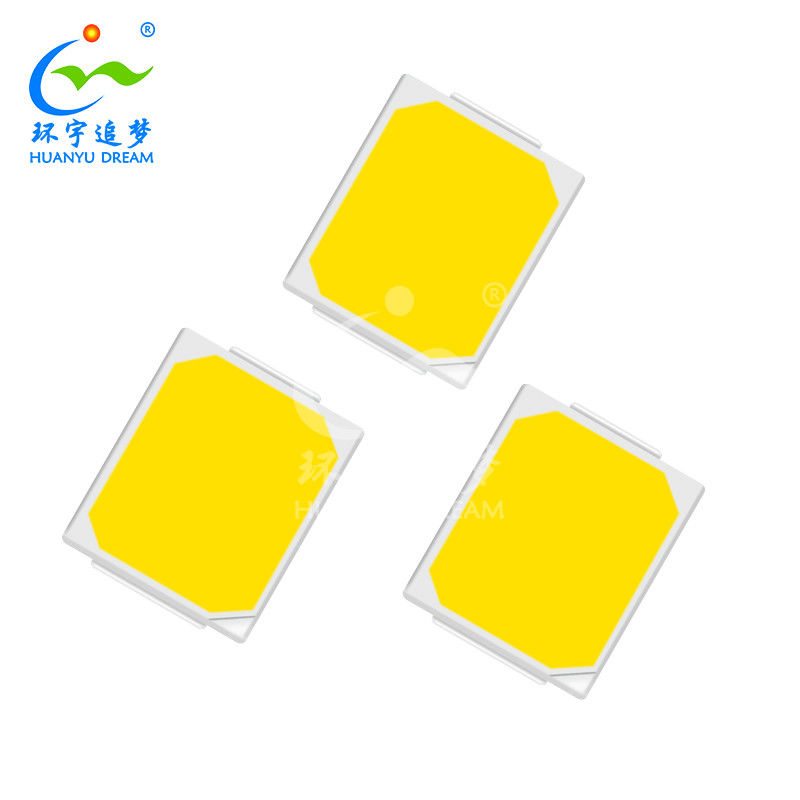

2835 High Brightness 160-170LM 1W White Color SMD LED Chip

  • 2835 SMD LED Chip 0.5W CRI80 75-85LM / 1W CRI80 160-170LM
  • Industry Standard SMD Package 2835 0.2W 0.5W 1W with various voltage choices 3V 6V 9V 18V 36V
  • HuanYu Dream 2835 SMD LED Chip is the price/performance leader for commercial indoor slutions compare to the cost and efficiency. They are available in CCTs from 2700K to 7000K and CRI from 80-95Ra.
  • Complete CCT/CRI offering for various application.
  • Industry standard footprint for replaceable
  • Reliable package design for Commercial Applications
  • 2 and 6 SDCM MacAdam Ellipse enables better color control





Product Features

  • Compact SMD design with high brightness
  • Copper base with ultra stability
  • PCT lead frame for better heat transfer
  • 0.2W 0.5W 1W available
  • Package Size:2.8(L)x3.5(W)*0.7(H)mm
  • Super long lifetime:>30000hrs



Product Application

  • High Power LED Lamp
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial Illuminate and displays: Advertising words, light box
  • Decorative Lighting: Light Strip
  • Other illuminations



Product Specifications

Models HY-2835W**L75-1S HY-2835W**L160-2S
Electronic power 0.5W 1W
Color temperature 2700-6500K 2700-6500K
VF 3.0-3.4V 3.0-3.4V
IF 150mA 300mA
LUMINUOUS EFF 75-85lm 160-170lm
WHOLE SIZE 2.8*3.5mm 2.8*3.5mm
CHIP Sanan/Epistar Sanan/Epistar
VIEW ANGLE 120° 120°
Warranty 3 years 3 years
Leading time 7-10days 7-10days



Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

High Brightness 2835 SMD LED Chip 160LM -170LM 1W White Color 0



Package Specifications(Tolerance:+/-0.1mm. Unit:mm)

High Brightness 2835 SMD LED Chip 160LM -170LM 1W White Color 1

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
