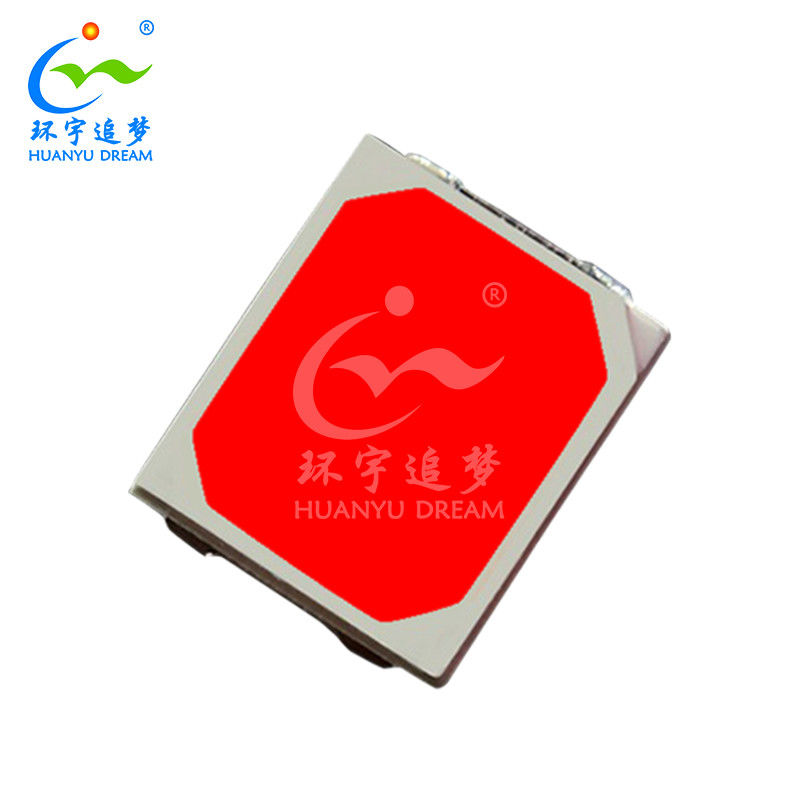

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red

Name: High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-2835
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: RoHS

Model Number: HY-2835

Payment & Shipping Terms

Minimum Order Quantity: 4000pcs

Price: Negotiable

Packaging Details: 4000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 500000pcs/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                High Voltage 2835 SMD LED Chip, 2835 SMD LED Chip 18V, High Voltage LED CHIP 36V


Name:	High Voltage LED CHIP	Feature:	High Voltage
Color:	Red	Voltage:	18V
Current:	50mA	Power:	1W
Lumen:	20-30LM

Name:	High Voltage LED CHIP
Feature:	High Voltage
Color:	Red
Voltage:	18V
Current:	50mA
Power:	1W
Lumen:	20-30LM

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red Smd 2835 Led Chips

High Voltage 2835 SMD LED Chip Features

2835 LEDs combine good luminous efficacy, low power consumption and a wide beam angle into a compact package (2.8mm * 3.5mm). SMD 2835 LEDs are optimal for applications where high efficacy and smooth appearance are critical, such as troffers, high bay fixtures or panel lights.

Type:2835
3V 9V 18V 36V 54V 72V are available
Compact SMD design with high Voltage
Available in Red, Blue, Green,White
Copper base with ultra stability
Super long lifetime:>50000hrs

High Voltage 2835 SMD LED Chip Specifications(Phosphor red)

Models	HY-2835R65-9V1S HY-2835R120-9V2S	HY-2835P620-18V	HY-2835P620-36V	HY-2835P620-54V	HY-2835P620-72V
Electronic power	0.5W/1W	1W	1W	1W	1W
CCT	620-625nm
VF	9V	18V	36V	54V	72V
IF	--mA	50mA	30mA	20mA	15mA
LUMINUOUS EFF		8-10lm	20-30lm	20-30lm	20-30lm
WHOLE SIZE	2.8*3.5mm
CHIP Brand	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years

High Voltage 2835 SMD LED Chip Application

Smart Lighting
Pilot Lamp
Commercial Illuminate and displays: Advertising words, light box
Decorative Lighting: Light Strip
Other illuminations

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red 2

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red 3

High Voltage 2835 SMD LED Chip 18V 36V 54V 72V Phosphor Red 4

FAQ

1. Are you factory or trade company?
We are a professional manufacturer of smd and cob led chips. Welcome to visit the factory online or offline anytime!

2. Do you support OEM/ODM service?
Yes,we do support. With more than 10 years of industry experience R&d team and design team

3. Any guarantee for your products?
√Strict quality control system
√Independent reliability testing laboratory
√All of our products with 3 years warranty

4. Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality. we can Minus sample cost after mass order.
