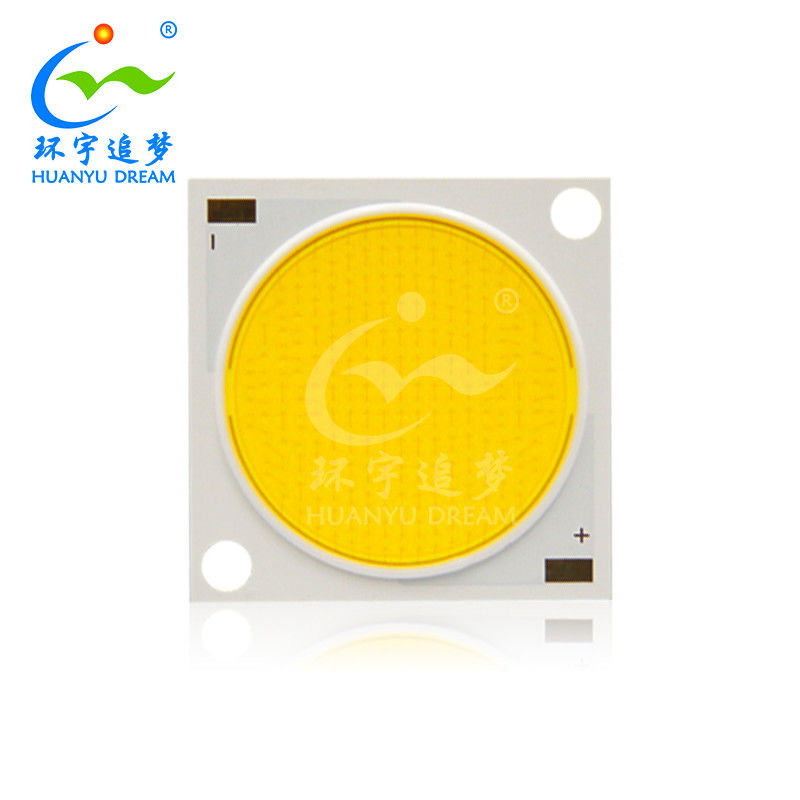

High Lumens 2828 COB LED Chip High Power 100W For Commercial Lighting
High Lumens 2828 COB LED Chip for commercial lighting
Description
HuanYu dream 2828COB Led Chip100W with high CRI, High lumens(10000-12000lm), Providing reliable and stable performance, The COB2828 LED is widely used to Film/Video camera lighting, Exhibition lighting Flood light, Spot light, High light, Resure light, Spot light, Track light and so on.
Features
- Mirror aluminum lead frame
- Excellent color reproduction
- 2828 COB LED series
- Available in a broad range of CCTs from 2600K to 7000K
- Environment-friendly
- Long life span and high reliability
- RoHS compliant > 30000 hrs
Product Details
| Model No. |
HYZM-2825-55D3-1814B |
| Pacakaging Dimension |
28*28mm φ24.5mm |
| Structure |
Aluminum Base Chip on Board |
| Input Voltage(V) |
52-56V |
| Current |
1800mA |
| CCT Range |
3100K-5700K |
| Typical Power |
100W |
|
Lumens
|
10000-12000 |
|
CRI
|
>80Ra |
| Emitting Color |
Warm White/Neutral White/Cool White |
| Viewing angle |
120° |
| Operating Temperature |
-40 ~ + 85
|
| Storage Temperature |
-40 ~ + 100
|
Package Dimension (Units:mm)
Electrical - Optical Characteristics at Ta=25℃
Absolute Maximum Ratings at Ta=25℃
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But our clients need to cover the freight.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 7-15days according to the order quantity .
Q3. What's the Payment way ?
A:We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7days to arrive.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.(such as size, color, power, voltage, CCT, CRI...)
Secondly We send you the Technique data for you reference. and quote you
Thirdly customer confirms the samples and we can check the freight for customer, then we will send the PI for you
Fourthly customer places an order , then we will arrange the produce and delievey.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
