Highlight:
5047 High Power COB LED
, High Power COB LED 7200mA
, High Power LED COB 500W

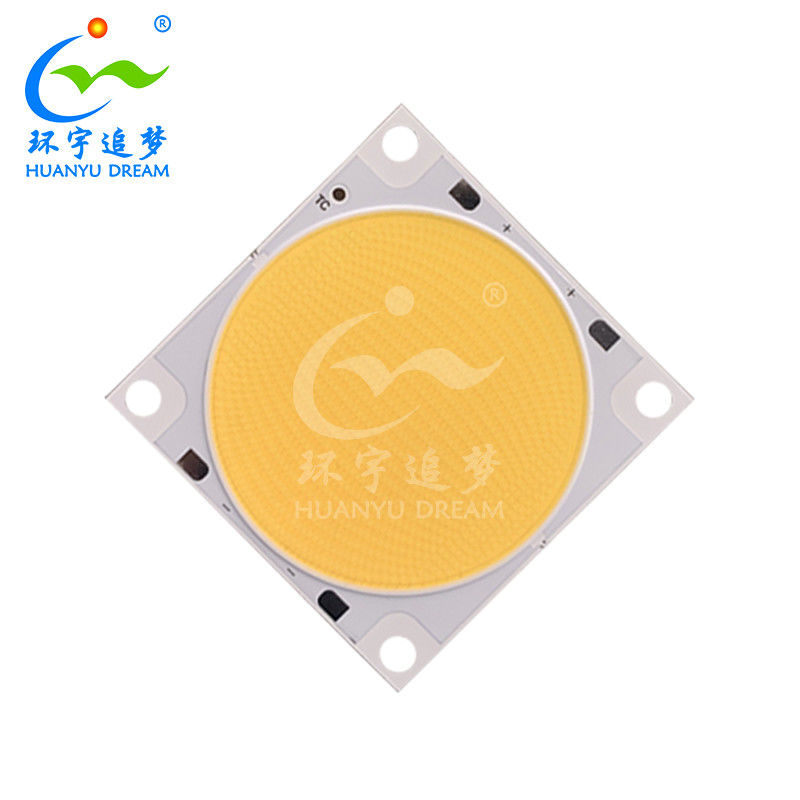

5047 High Power COB LED 500W Ra98 7200mA 3000K 4000k 5000k 6000K
High Power 500 Watts 5047 Cob Led Chip Ra98 7200mA
500W 5047 COB led Chip Specification
* Dimension 50.0 mm×50.0 mm×2.4 mm
* Wide viewing angle : 120°
* CRI: 97
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
5047 500W COB LED Details
Electrical - Optical Characteristics at Ta=25℃
|
Type
|
Symbol
|
Test condition
|
Value |
Unit
|
| |
|
|
Min. |
Typ. |
Max. |
|
| Forward Voltage |
VF |
IF=7200mA |
72 |
74 |
76 |
V |
| 3100-3300K |
φ |
IF=7200mA |
40000 |
-- |
50000 |
Lm |
| 5500-5700K |
φ |
IF=7200mA |
50000 |
-- |
60000 |
Lm |
| Viewing Angle |
2θ1/2 |
IF=7200mA |
|
120 |
|
Deg |
| Color Rendering Index |
CRI |
IF=7200mA |
97-- |
|
--98 |
-- |
| Thermal resistance |
Rth(j-s) |
IF=7200mA |
-- |
-- |
0.67 |
℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter |
Symbol |
Rating |
Units |
| Power Dissipation |
Pd |
500 |
W |
| Forward Current |
IF |
7200 |
mA |
| Peak Forward Current |
IFP |
7400 |
mA |
| Junction temperature |
Tj |
115 |
℃ |
| Solder temperature |
Ts |
350 |
℃ |
| Operating Temperature |
Topr |
-40 ~ + 85 |
℃ |
| Storage Temperature |
Tstg |
-40 ~ + 100 |
℃ |
Optica Characteristic curve
500W 5047 COB led Chip Package Dimension
4PCS/Tray
10Tray/ESD Shieding Bag:40pcs
500W 5050 COB Led Chips Applications
* Indoor/outdoor lighting.
* Spot light
* Down light
* General use.
