2828 200W LED COB High Power LED White 3200K 5600K 3 Year Warranty

Basic Information
Place of Origin: China
Brand Name: HYZM
Certification: RoHS
Model Number: HY-F2823-1040B-200W
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 16pcs/Trau
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 10000pcs/Day
Detail Information
Dimension: 28*28mm Type: 2825 Flip Chip Led
Input Voltage(V): 30-34V Color Temperature: 5600K(+/-200K)
Current: 6670mA CRI: 97Ra
Wide Viewing Angle: 120° Warranty: 3 Year
CCT Range: 2400-6500K Lifespan: 50000 Hours
High Light:

2828 COB High Power LED

,

200W COB High Power LED

,

2828 200W LED COB


Product Description

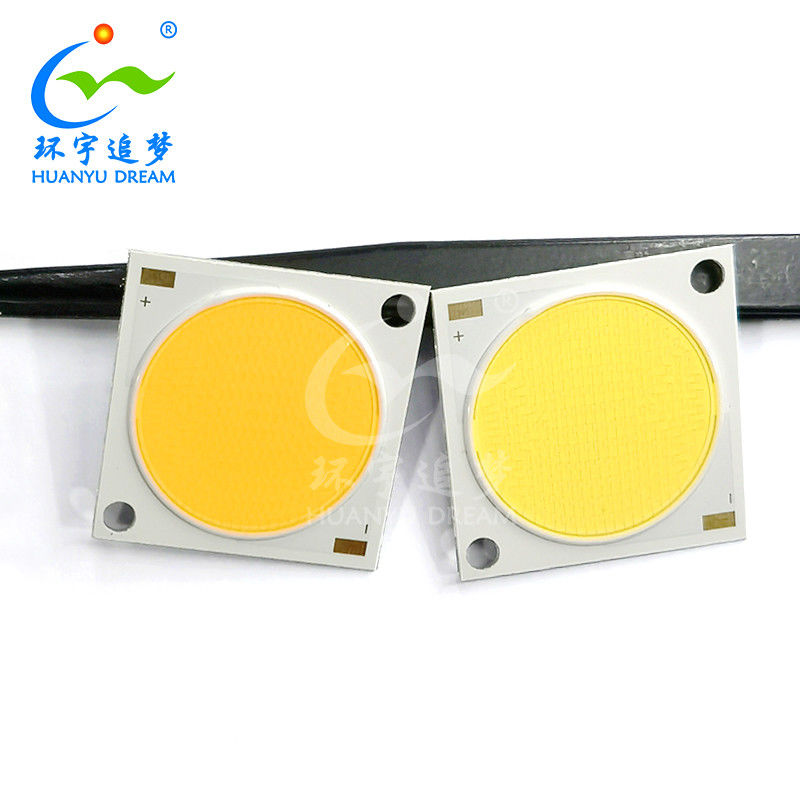

Flip Chip 2828 COB LED Chip High Power 200W



Description



HuanYu dream Flip chip 2828COB Led Chip200W with high CRI, Low Volatge(30-34V),  Moreover, it provides exceptionally high light intensity and even higher center beam candle power (CBCP). These offer compact and bright lighting solutions for spotlights as well as high bay lights. Providing 95+ high CRI, this high-power LED COB can be used in a variety of applications demanding high color quality and high density light output.



Features

  • CRI 95+ light quality
  • 100W nominal power consumption
  • 28mm x28mm x  mm chip-on-board Led
  • High Lumendensity utilizing flip-chip technnology
  • Available in a broad range of CCTs from 2600K to 7000K
  • Long life span and high reliability
  • RoHS compliant

2828 200W LED COB High Power LED White 3200K 5600K 3 Year Warranty 0





Product Details



Model No. HY-F2823-1040B-200W
Pacakaging Dimension 28*28mm φ24.5mm
Structure Aluminum Base Chip on Board
Input Voltage(V) 30-34V
Current 6670mA
CCT Range 5600K
Typical Power 200W

CRI

95Ra
Emitting Color Warm White/Neutral White/Cool White
Viewing angle 120°
Operating Temperature

-40 ~ + 85

Storage Temperature

-40 ~ + 100



Material Show



2828 200W LED COB High Power LED White 3200K 5600K 3 Year Warranty 1

Application



2828 200W LED COB High Power LED White 3200K 5600K 3 Year Warranty 2

FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But our clients need to cover the freight.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 7-15days according to the order quantity .



Q3. What's the Payment way ?

A:We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7days to arrive.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.(such as size, color, power, voltage, CCT, CRI...)

Secondly We send you the Technique data for you reference. and quote you

Thirdly customer confirms the samples and we can check the freight for customer, then we will send the PI for you

Fourthly customer places an order , then we will arrange the produce and delievey.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
