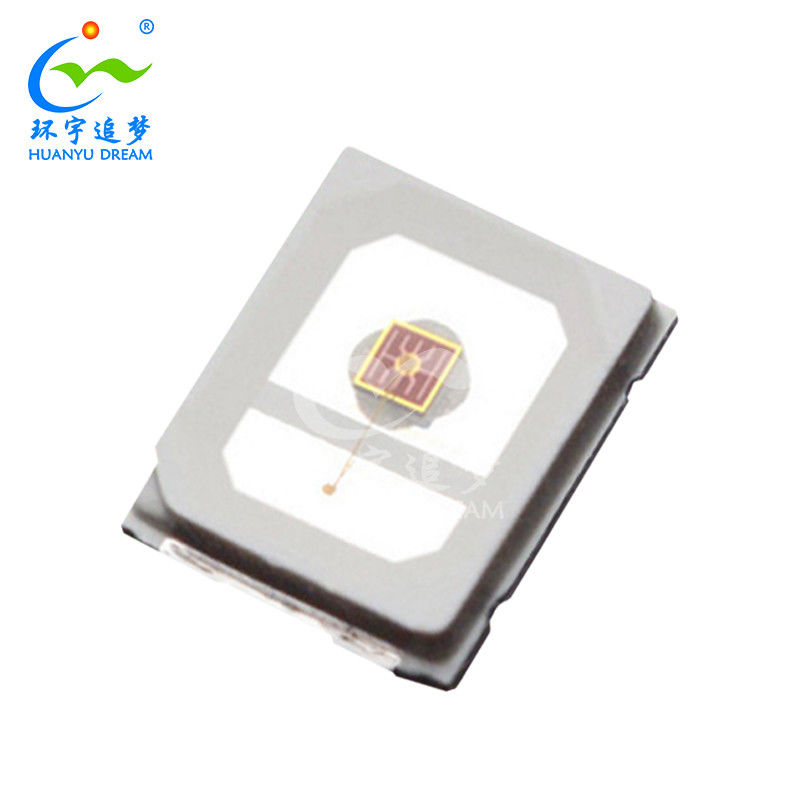

High Voltage 2835 SMD LED Chip

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-2835R620-
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Type: 2835 Red LED Chip Color: 620-630nm
Power: 0.2W Voltage: 2.0-2.4V
Brightness: 8-12LM
Highlight:

2835 SMD LED Chip 0.2W

,

High Voltage 2835 SMD LED Chip

,

RoHS SMD 2835 LED Chip


Product Description

2835 SMD LED Chip Red Green Blue PC Convert High Voltage SMD LED Chip



Good Performance, More Comprehensive Colors.



-Product Features

  • A broad range of color options both chip type and pc type
  • Full color with a wide range of spectrum options.
  • Copper base with utmost reliability.
  • High Efficiency- Up to 245LM/W, Low power comsumption, cost effective.
  • White Color 2200K-6500K with CRI 70-97Ra in industry-standard 2.8*3.5mm package.
  • Various Colors Red, Green, Blue, Yellow, Amber, Deep Red, Far Red, Violet, etc.
  • Phosphor Colored Red, Blue,Green with High Voltage 3V 6V 9V 18V 36V 54V 72V



0.2W Color 2835 SMD LED Chip Specifications



Color Wavelength
(nm)
Power VF(V) IF(mA) Luminous Flux(lm)
Red 620-630 0.2 2.0-2.4 60 8-12
Deep Red 660-670 0.2 2.0-2.4 60 4-6
Green 520-530 0.2 2.8-3.2 60 15-25
Blue 460-470 0.2 2.8-3.2 60 4-6
Yellow 580-590 0.2 2.0-2.4 60 7-9





0.5W Color 2835 SMD LED Chips Specifications



Color Wavelength
(nm)
Power VF(V) IF(mA) Luminous Flux(lm)
Red 620-630 0.5 2.0-2.4 150 20-25
Deep Red 660-670 0.5 2.0-2.4 150 10-15
Green 520-530 0.5 2.8-3.2 150 40-45
Blue 460-470 0.5 2.8-3.2 150 10-16
Yellow 580-590 0.5 2.0-2.4 150 10-20





PC Phosphor Converted Specifications



S/N. Item Dominant Wavelength Power Luminous Flux(lm) VF(V) IF/mA
1 2835 615-620nm 1 20-30LM 72V 15MA
2 2835 520-525nm 1 120-130 72V 15MA
3 2835 460-465nm 1 20-25LM 72v 15MA
4 2835 615-620nm 1 20-25LM 54V 20MA
5 2835 520-525nm 1 120-130LM 54V 20MA
6 2835 460-465nm 1 30-40LM 54V 20MA
7 2835 520-525nm 1 110-120LM 36v 30MA
8 2835 615-620nm 1 20-30lm 36v 30MA
9 2835 460-465nm 1 20-25LM 36v 30MA
10 2835 615-620nm 1 20-30LM 18V 50MA
11 2835 520-525nm 1 110-120LM 18V 50MA
12 2835 460-465nm 1 20-25LM 18V 50MA
13 2835 615-620nm 0.5W 8-10LM 18V 30MA
14 2835 520-525nm 0.5W 65-70LM 18V 30MA
15 2835 460-465nm 0.5W 10-15LM 18V 30MA





Both Chip Type and Phosphor-Converted Type,2835 SMD LED Chip for landscape lighting, horticulture lighting, emergency lighting, and decorative lighting.



High Voltage 2835 SMD LED Chip 0High Voltage 2835 SMD LED Chip 1

                 Chip Type 660nm                                                   Chip Type 620nm



High Voltage 2835 SMD LED Chip 2High Voltage 2835 SMD LED Chip 3



                        PC 590nm                                                          PC Ice Blue





Delivery:



High Voltage 2835 SMD LED Chip 4



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
