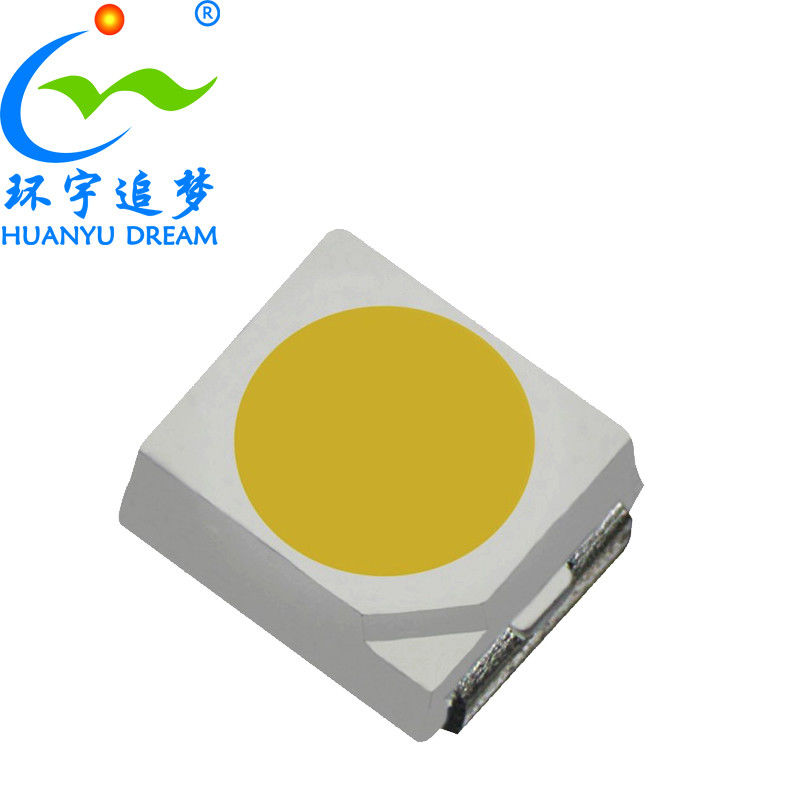

0.06W White 3528 LED Chip High Power 3000K-3500K For Light Strip

Name: 0.06W White 3528 LED Chip High Power 3000K-3500K For Light Strip
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-3528W30L8
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY-3528W30L8

Payment & Shipping Terms

Minimum Order Quantity: 2000pcs

Price: Negotiable

Packaging Details: 2000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 500kpcs/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                White 3528 LED Chip, 3528 LED Chip High Power, High Power LED Chip 3528


Size:	3.5*2.8mm	Voltage:	2.8-3.2V
Current:	20mA	Ra:	70
Color:	3000-3500K	Lumen:	8-10LM
Viewing Angle(°):	120	Customized:	Availabe

Size:	3.5*2.8mm
Voltage:	2.8-3.2V
Current:	20mA
Ra:	70
Color:	3000-3500K
Lumen:	8-10LM
Viewing Angle(°):	120
Customized:	Availabe

0.06W White 3528 LED Chip High Power 3000K-3500K For Light Strip

PLCC2 3528 0.06W White SMD LED Chip: High Stability & Long Lifetime For Light Strip

3528 0.06W White Color SMD LED Chip

HuanYu Dream 3528 SMD LED Chip is the price/performance leader for commercial indoor slutions compare to the cost and efficiency. CRI from 80-95Ra.
Typical PLCC-2 type white smd led
Wide CCT Range 2300K-20000K
Rohs compliant
Suitable for different working environment

Product Features

Package Size:3.5(L)x2.8(W)*1.8(H)mm
Compact SMD design with high brightness
Copper base with ultra stability
Consistent Color and Smooth environment
Super long lifetime:>30000hrs

Product Application

High Power LED Lamp
Indoor lighting: Fluorescent lamp, tube
Commercial Illuminate and displays: Advertising words, light box
Decorative Lighting: Light Strip
Other illuminations
Led back lighting

Product Specifications

Electronic power	0.06W
Color temperature	3000-3500K	4000-4500K	6000-6500K	6500-7000K
VF	2.8-3.0V	2.7-2.9V	3.0-3.2V	3.0-3.2V
IF	20mA	20mA	20mA	20mA
CRI	70	70	80	70
LUMINUOUS EFF	8-10lm	8-10lm	8-10lm	8-9lm
Warranty	3 years

Product Dimension(Tolerance:+/-0.1mm. Unit:mm)

Initial Electrical/Optical Characteristics (Ta=25±5ºC)
0.06W White 3528 LED Chip High Power 3000K-3500K For Light Strip 1
