Place of Origin: | China |
---|---|
Brand Name: | HuanYu Dream |
Certification: | Rohs, CE |
Model Number: | HY01917-XX |
Minimum Order Quantity: | 1pc |
Price: | Negotiable |
Packaging Details: | Anti-static Blister packing |
Delivery Time: | 10-15 Work Days |
Payment Terms: | T/T, Paypal,Ali Pay,, Western Union |
Supply Ability: | 2000, 000pcs per month |
Size: | 19*19mm( Dia17mm) | Power: | 12W/18W/24W |
---|---|---|---|
Circuit: | 12S2P/12S3P/ 12S4P | Color: | 2700-6500K |
Input Voltage: | 36-39V | Efficiency: | 120-140lm/W/ 110-120LM./W |
View Angel: | 120 | ||
High Light: | Chip COB LED Warm White,1919 Chip COB LED,Warm White COB LED Chip |

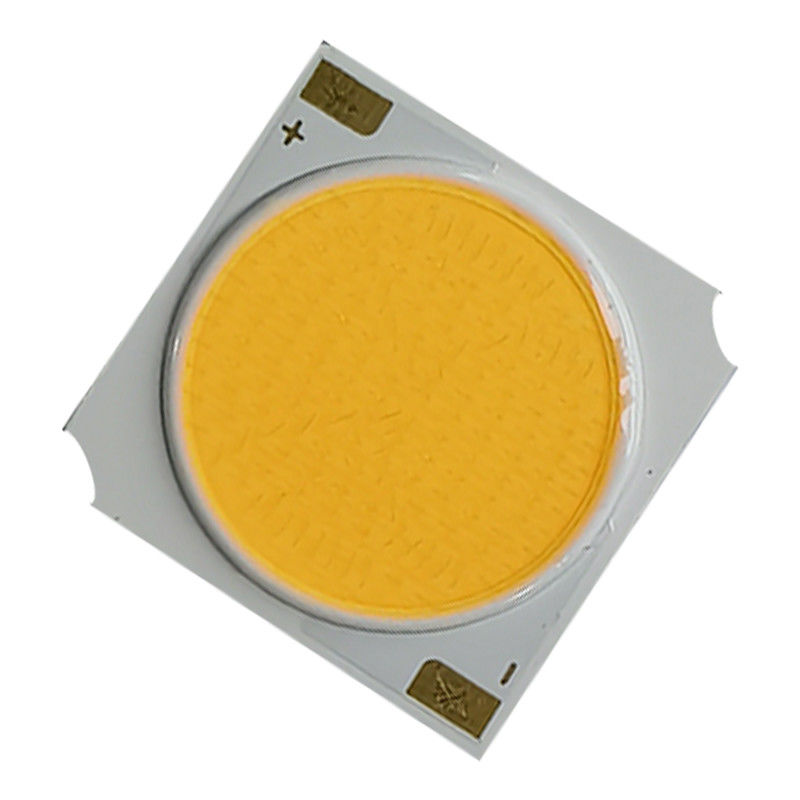

HuanYu Dream 1919 LES17mm Series COB LED Chips White 1700K 3000K 4000K 6000K 7000K
1919 Series COB LED Chips Warm white 3000K 4000K 6000K 7000K
Design Advantage
Hot selling COB LED 1919
(Customize CCT& CRI& Volt)
|
|||
Models
|
HY-1917-12W | HY-1917-18W | HY-1917-24W |
Electronic power
|
12W |
18W
|
24W |
Voltage
|
36V |
36V
|
36V |
Current
|
300mA |
300-450mA
|
400-600mA |
Series/Parallel
|
12S2P |
12S3P
|
12S4P |
Lumens |
130-140LM/W( Ra>80 ) |
140-160lm/W( Ra>80 )
|
140-160lm/W( Ra>80 ) |
100-120LM/W(Ra>90) |
110-130lm/W (Ra>90)
|
110-130lm/W (Ra>90) | |
CCT
|
WW: Warm white=2700-3000K
NW: Neutral white=4000-4500K
PW: Pure white=6000-6500K
|
||
CRI
|
Ra 97( CRI 70/ 80 /90/95 as choose)
|
||
Junction temperature
|
115 ℃
|
||
Solder temperature
|
350 ℃
|
||
Operating Temperature
|
-40 ~ + 85 ℃
|
Note:Pls cnontact us for Technique Data and more detail information
