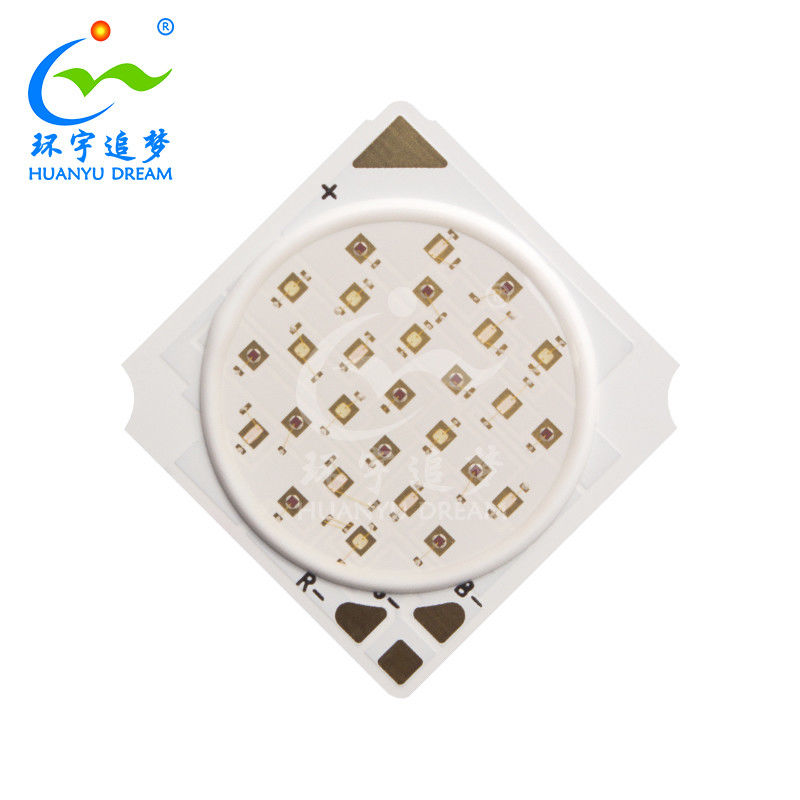

12w 25w 30w 50w Cob Led Chip Rgb Rgbw Rgbcw

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-1917RGB-12W-D5
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 25pcs/Tray
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Type: RGB LED COB Chip Power: 12W
Voltage: 11-13V Current: R/G/B:300mA
Luminous: R:150-200lm G:200-250lm B:40-70lm Color(CCT): R:620-630nm G:520-530nm B:460-470nm
Size: 19*19mm Les.: 17mm
High Light:

rgb 12w cob led chip

,

rgbw 50 watt cob led chip

,

rgbw chip led 30w


Product Description

12w 25w 30w 50w Cob Led Chip Rgb Rgbw Rgbcw 0



LED COB RGB CCT 12W 25W 30W 50W COB LED RGB RGBW RGBCW LED Chip



  • Aluminum Base
  • 99.9% Pure Gold Wire
  • 1917RGB available in 12W 30W 50W
  • RGB RGBW RGBCW are available
  • Supply customize size / Voltage / Watt / Current /Shape
  • Widly use for stage lights and other lighting fields.



Specifications



1917 RGB COB LED Chip -12W



12w 25w 30w 50w Cob Led Chip Rgb Rgbw Rgbcw 1 Item No. HY-1917RGB-12-D5
Size 19*19mm
Les φ17mm
Voltage 11-13V
Current R/G/B:300mA
Luminous R:150-200lm G:200-250lm B:40-70lm
Color(CCT) R:620-630nm G:520-530nm B:460-470nm
Power 12W





1917 RGB COB LED Chip-30/50W



12w 25w 30w 50w Cob Led Chip Rgb Rgbw Rgbcw 2 Item No. HY-1917RGB-30-D5 HY-1917RGB-50-D5
Size 19*19mm 19*19mm
Les φ17mm φ17mm
Power 30W 50W
Voltage 33-36V R:34-38V G/B:36-38V
Current R/G/B:300mA R:450mA
G/B:300mA
Luminous R:450-465lm
G:700-720lm
B190-195lm
R:800-850lm
G:700-720lm
B:200-300lm
Color(CCT) R:620-630nm G:520-530nm B:460-470nm



100W 200W RGBW COB LED Chip



12w 25w 30w 50w Cob Led Chip Rgb Rgbw Rgbcw 3 Item No. HY-4021RGBW56-100-D5 HY-4026RGBW40-200-D5
Size 40*40mm 40*40mm
Les. φ21mm φ26mm
Power 100W 200W
Voltage 26-30V 28-34V
Current 800mA 1600mA
Luminous R:600-800lm G:700-900lm B:300-400lm W:1500-1700lm R:1400-2000lm G:3000-3500lm B:700-900lm W:3200-3800lm
Color Red+Green+Blue+White(1800-7000K,Customized)
CRI 70/80/90/95/98



FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
