200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-4026RGBW-200W
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 9pcs/Tray
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500K/Month
Detail Information
Type: 200W RGBW COB LED Chip Dimension: 40*40mm
Lighting Area: 26mm Power: 200W
Voltage: 28-34V CRI(White): 98
Dimmable: Yes Warranty: 3 Years
High Light:

200W RGBW COB LED Chip

,

RGBW COB LED Chip 4026

,

COB LED RGBW DC28V


Product Description

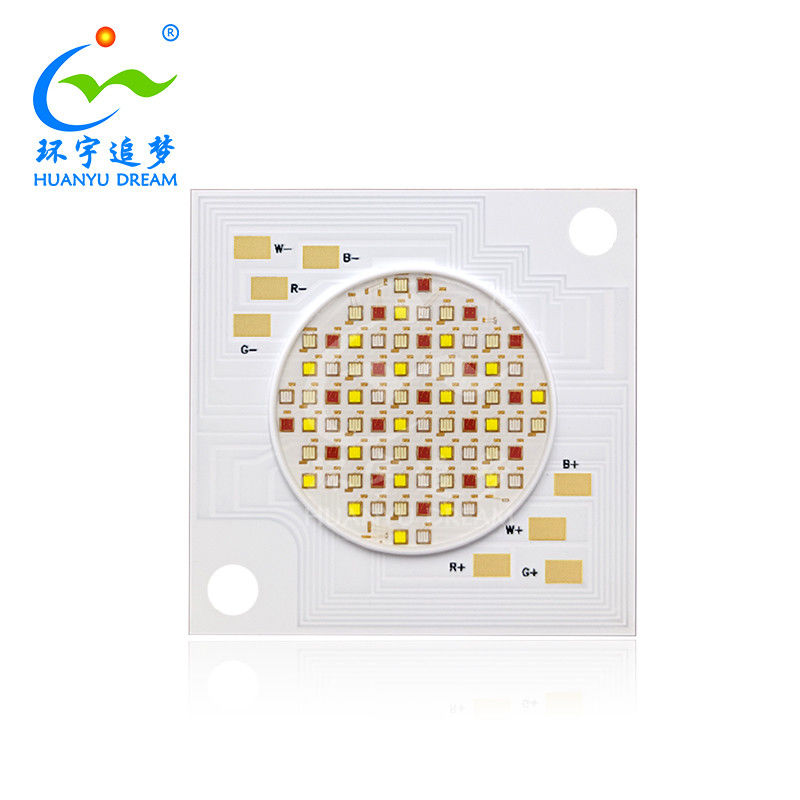

200W RGBW COB LED Chip 4 Colors in 1 φ26mm Tunable LED COB



4 in 1 RGBW LED COB Chip design advantages



  • RGBW COB LED Chip 10W 20W 50W 100W 200W are available
  • Great color consistency and quality
  • R, G, B,  W,  foue colors in 1 package
  • High Luminous output
  • CRI(Ra):Min:90
  • Better die arrangement for optics



RGBW Dimmable LED COB Chip

200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V 0 200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V 1
HY-4021RGBW-100W HY-4026RGBW-200W



RGBW LED COB Chip Specifications



Product Model Lighting Area Color

Wavelength(nm)

/CCT(K)

Voltage

(V)

Current

(mA)

Lumen Output(LM) Part Number
100W
RGBW COB
φ21 Red 620-630 22-26 800 600-800 HY-4021RGBW-100W
Green 520-530 27-30 800 700-900
Blue 460-470 27-30 800 300-400
White 3000K-8000K 27-30 800 1500-1700
200W
RGBW COB
φ26 Red 620-630 22-26 1600 1400-2000 HY-4021RGBW-100W
Green 520-530 28-34 1600 3000-3500
Blue 460-470 28-34 1600 700-900
White 3000K-8000K 28-34 1600 3200-3800




Dimension

200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V 2

4 in 1 RGBCW LED COB Chip Applications



  • Stage light, Film light, Photography light for studio
  • Indoor and Outdoor Lighting
  • Decorative Lighting,Adertising light, wall washer light
  • Other fields

200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V 3

200W RGBW COB LED Chip 4026 4 Colors Super Lighting LED DC28V 4
