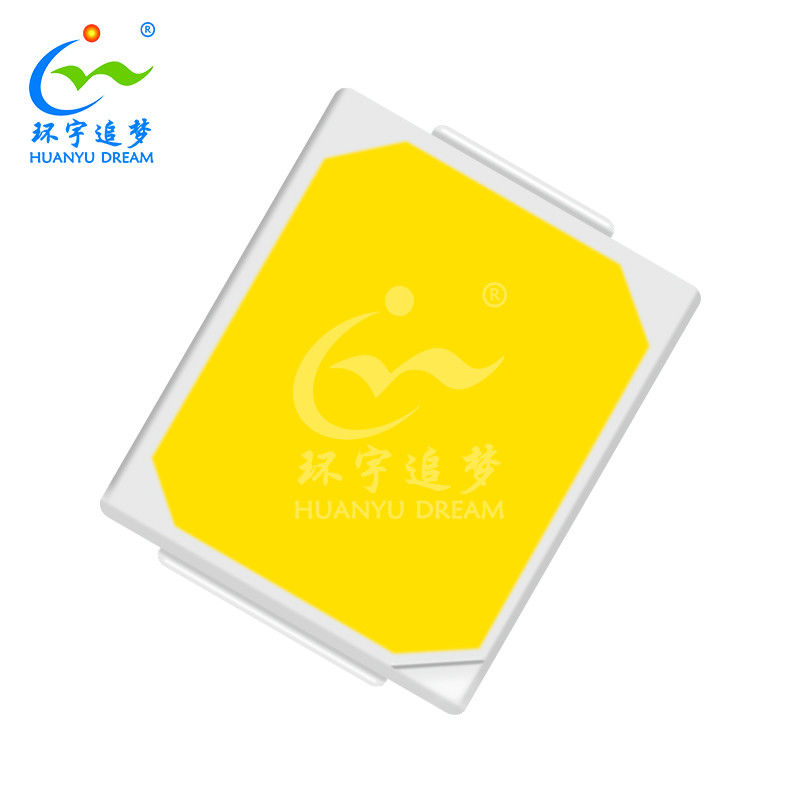

0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-2835W27B24-1S
Minimum Order Quantity: 4000pcs
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Size: 2.8*3.5*0.7mm Power: 0.2W
Current: 60mA/150mA Lumen: 24-38lm/60-85LM
CRI(Ra): 70/80/90/95 Chip Brand: Sanan
Color Temparture: 1700-20000K Warranty: 3 Years
High Light:

0.5W Sanan LED Chip

,

Sanan LED Chip 1700K


Product Description

Smd Led 0.2W/0.5W 2835 White 1700K/3000K/5700K/6500K/20000K Led Sanan Chip Factory Mass Production

2835 white 0.2W and 0.5W Series Smd led chip

1. Packaging: SMD (smd) package.

2. Chip Brand: Sanan(main); Epistar;Huacan; Epileds

4. Lifespan: Long lifespan, reaching up to several hundred thousand hours.

5. Color: Can be produced in various colors, including red, green, blue,purple; pink; ice blue; yellow; UV; Amber and white.

6. Flat packaging: Easy to integrate into various electronic devices.

7. Available on tape and reel. Suitable for all SMT assembly and solder process.

8.  RoHS compliant





0.2W/0.5W 2835 SMD LED Chip Full Series





  Model



   CCT  Voltage CRI(Ra)  Current Brightness(LM)
HY-2835-26-0.2W  2600-20000K  3.0-3.4V 70(80/90/95)     60mA 26-28LM
HY-2835-28-0.2W 28-30LM
HY-2835-30-0.2W 30-32LM
HY-2835-28-0.2W
HY-2835-30-0.2W 32-34LM
HY-2835-32-0.2W 32-34LM
HY-2835-34-0.2W 34-36LM
HY-2835-55-0.5W 150mA 55-60LM
HY-2835-60-0.5W 60-65LM
HY-2835-65-0.5W 65-70LM
HY-2835-70-0.5W 70-85LM
HY-2835-80-0.5W 80-85LM



(NOTE: Different models match the difference of Price)





0.2W 2835 White Led Chip Application



●LED Panel light

●LED bulb light

●LED tube light

●LED strip light

●LED spot light etc.

0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White 0



0.2W 2835 SMD LED Chip Dimension(Tolerance:+/-0.1mm. Unit:mm) (Mark is cathode)



0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White 1





2835 SMD LED Chip Package Specifications(Tolerance:+/-0.1mm. Unit:mm) The LEDs are packed in cardboard boxes after taping.



0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White 2





Reel Dimension



0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White 3

Production Process

0.2W 0.5W Sanan LED Chip 1700K 3000K 5700K 6500K 20000K White 4

Packing

64x64

FAQ

Q1.How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5.Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
