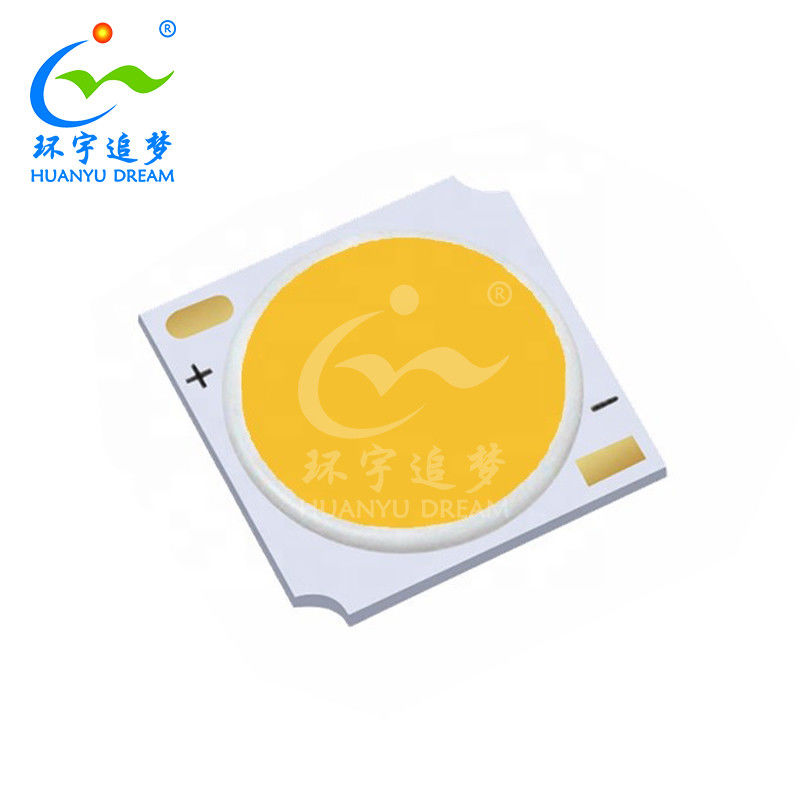

10W LED COB Chip CRI 80 2900K-3100K 1200lm-1300lm RoHS Compliant

Name: 10W LED COB Chip CRI 80 2900K-3100K 1200lm-1300lm RoHS Compliant
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-1311W30-10C2B-10-D5
Price: 1.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: RoHS

Model Number: HY-1311W30-10C2B-10-D5

Payment & Shipping Terms

Minimum Order Quantity: 1piece

Price: Negotiated

Packaging Details: 49pcs/Tray

Delivery Time: 10-15 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 30000 units per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                LED COB Chip 10W, 10W LED COB Chip, Chip LED COB 10W


Product Name:	1313 COB Led Chips	Series:	10C2P
Power:	10 W	Current:	300mA
Voltage:	30-33V	CCT:	2900K-3100K
CRI:	80	Brightness:	1200lm-1300lm
Chip Brand:	Bridgelux	Working Time:	50000 Hours

Product Name:	1313 COB Led Chips
Series:	10C2P
Power:	10 W
Current:	300mA
Voltage:	30-33V
CCT:	2900K-3100K
CRI:	80
Brightness:	1200lm-1300lm
Chip Brand:	Bridgelux
Working Time:	50000 Hours

10W LED COB Chip CRI 80 2900K-3100K 1200lm-1300lm RoHS Compliant

10W 1313 COB LED Chips, CRI 80, 120°View, RoHS Compliant, Corrosion Resistant

10W 1313 COB Led Chips Details

Features

* Dimension 13.50mm×13.50mm×1.5mm

* Available CRI: 70, 80, 90, 95, 97, 98

* Wide CCT Range:1700-20000K

* RoHS compliant

* Different colors in choose: Blue 450nm; Green; Red; Yellow; Full Spectrum

* The White LED which was fabricated using a blue chip and phosphor

Electrical - Optical Characteristics at Ta=25℃

Type	Symbol	Test condition	Value			Unit
Type	Symbol	Test condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=300mA	30	--	36	V
2900K-3100K	φ	IF=300mA	1200	--	1300	Lm
4000-4500K	φ	IF=300mA	1300	--	1400	Lm
6000-6500K	φ	IF=300mA	1400		1500	Lm
Viewing Angle	2θ1/2	IF=300mA	--	120	--	Deg
Color Rendering Index	CRI	IF=300mA	80	--	83	--
Thermal resistance	Rth(j-s)	IF=300mA	--	--	0.67	℃/W

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	10	W
Forward Current	IF	300	mA
Peak Forward Current	IFP	400	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

Package Dimension

10W LED COB Chip CRI 80 2900K-3100K 1200lm-1300lm RoHS Compliant 1

Packaging Specifications

10W LED COB Chip CRI 80 2900K-3100K 1200lm-1300lm RoHS Compliant 2

49 PCS/Tray 10Tray/ESD Shieding Bag:490pcs

FAQ

Q1: Are you a factory or a trade company?

A1: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: How to process the order?
A6: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
