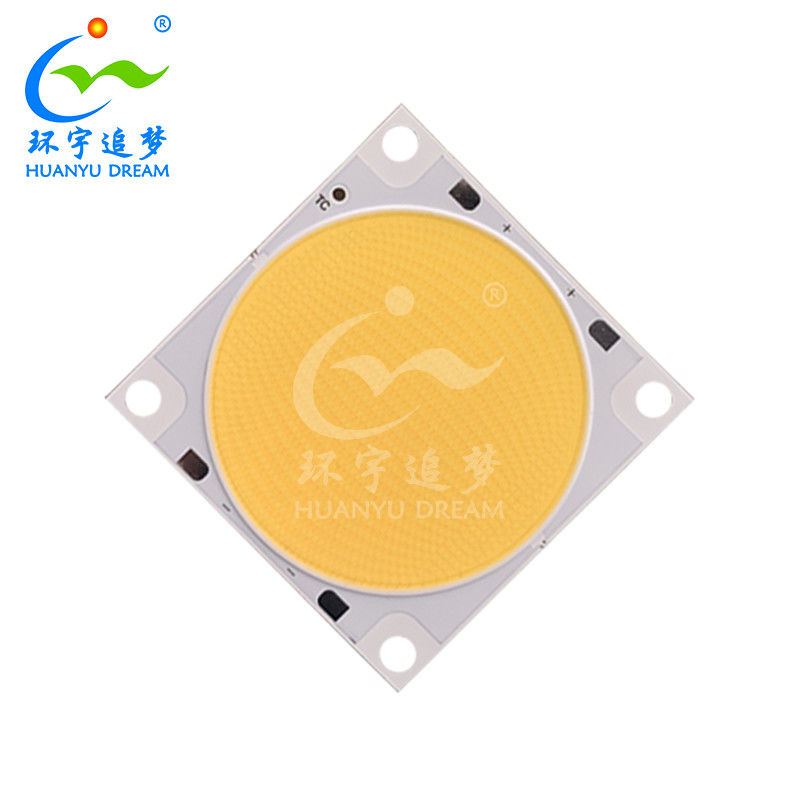

Super Bright 5050 COB LED Chip 500W White
Description
HuanYu dream 5050 COB LED chip 500W, high CRI 98Ra500W COB LED With Ultra Bright Daylight 5600K, reliable and stable performance, COB5050 LED is applied for DIY Camera light/ flashlight/projection light/photograph light/ home light etc
Features
- Dimmension:50.0mm*50.0mm*2.0mm
- Excellent color reproduction
- Available in a broad range of CCTs from 1700K to 7000K
- Material:Copper Brackets working
- Long life span and high reliability
- RoHS compliant > 50000 hrs
Specfication
| Model No. |
HY-5050-56A0-2448B-500W |
| Input Voltage(V) |
70-74V |
| Current |
7000mA |
| CCT |
5600K |
| Typical Power |
500W |
|
Lumens
|
48000-55000 |
|
CRI
|
97Ra |
| Emitting Color |
Neutral White |
| Viewing angle |
120° |
| Operating Temperature |
-40 ~ + 85
|
| Storage Temperature |
-40 ~ + 100
|
Package Dimension (Units:mm)
Electrical - Optical Characteristics at Ta=25℃
| Type |
Symbol |
Test condition |
Value |
Unit |
| |
|
|
Min. |
Typ. |
Max. |
|
| Forward Voltage |
VF |
IF=7000mA |
70 |
|
74 |
V |
| 4050K-7000K |
φ |
IF=7000mA |
48000 |
-- |
50000 |
Lm |
| Viewing Angle |
2θ1/2 |
IF=7000mA |
|
120 |
|
Deg |
| Color Rendering Index |
CRI |
IF=7000mA |
97 |
|
98 |
-- |
| Thermal resistance |
Rth(j-s) |
IF=7000mA |
-- |
-- |
0.67 |
℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter |
Symbol |
Rating |
Units |
| Power Dissipation |
Pd |
485 |
W |
| Forward Current |
IF |
7000 |
mA |
| Peak Forward Current |
IFP |
7500 |
mA |
| Junction temperature |
Tj |
120 |
℃ |
| Solder temperature |
Ts |
350 |
℃ |
| Operating Temperature |
Topr |
-40 ~ + 85 |
℃ |
| Storage Temperature |
Tstg |
-40 ~ + 100 |
℃ |
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But our clients need to cover the freight.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 7-15days according to the order quantity .
Q3. What's the Payment way ?
A:We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7days to arrive.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.(such as size, color, power, voltage, CCT, CRI...)
Secondly We send you the Technique data for you reference. and quote you
Thirdly customer confirms the samples and we can check the freight for customer, then we will send the PI for you
Fourthly customer places an order , then we will arrange the produce and delievey.
