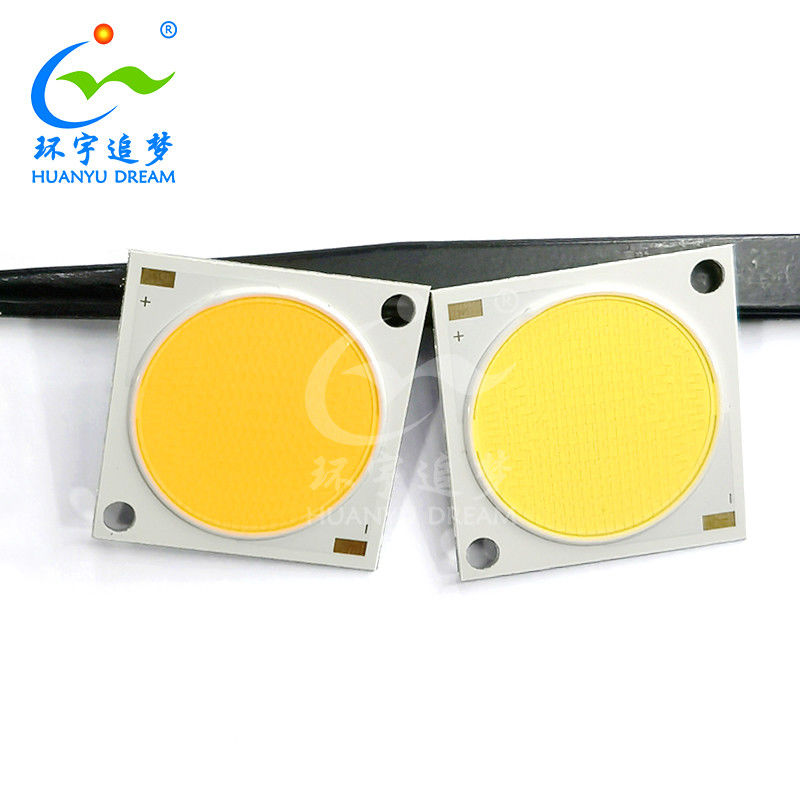

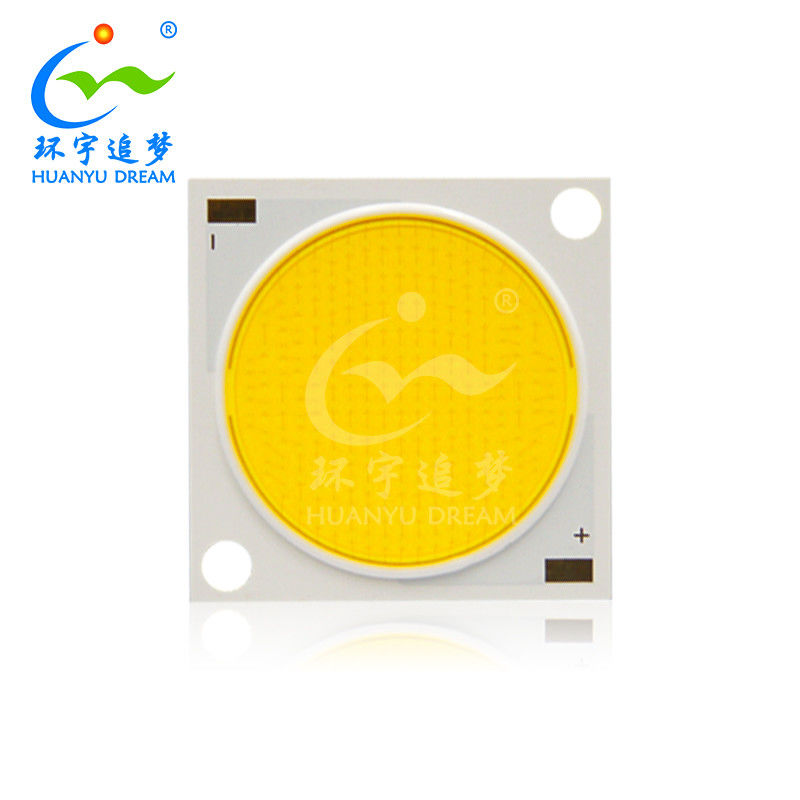

Mid Power 2828 LED COB Chip 24W 30W 36W 48W 60W 80W 100W

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs, CE
Model Number: HY-2828-White
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Anti-static Blister packing
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay,, Western Union
Supply Ability: 2000, 000pcs per month
Detail Information
Size: 28*28mm( Dia25mm) Power: 24-120W
Color: 2700-6500K Input Voltage: 36-39V
Material: Copper Structure View Angel: 120
High Light:

2828 LED COB Chip


LED COB Chip 24W


2828 LED COB 36W

Product Description

COB 2828 Led Mid-Power 24W 30W 36W 48W 60W 80W 100W 120W High Color Consistency COB


1919 Series COB LED Chips Warm white 3000K 4000K 6000K 7000K


Design Advantage

  • No glare light
  • Color consistance
  • Low life deacy
  • Low thermal resistance
  • High CRI 80/90/95/98(max)
  • Wide CCT Range from 1700K-6500K


  • Spot Light
  • Led car light
  • Downlight
  • Solar light
  • Ceiling light
  • Flood Lighting
  • Photography Lighting
  • other lighting area



Models Power(W) Size(mm)  Light Emitting Series&
Voltage CRI Current
HY02823-57D3-1219B 100W 28*28mm φ25mm 12S19P 36-39V 80 2800mA
HY02823-57D3-1215B 80W 12S15P 2200mA
HY02823-57D3-1210B 48-60W 12S10P 1200-1500mA
HY02823-57D3-1208B 42-48W 12S8P 1050-1200mA
HY02823-57D3-1207B 36-42W 12S7P 900-1050mA
HY02823-57D3-1206B 30-36W 12S6P 750-900mA
HY02823-57D3-1205B 24-30W 12S5P 600-750mA


Packge Dimension(Units:mm)
Mid Power 2828 LED COB Chip 24W 30W 36W 48W 60W 80W 100W 0




Packaging Specifications

Mid Power 2828 LED COB Chip 24W 30W 36W 48W 60W 80W 100W 1                              Mid Power 2828 LED COB Chip 24W 30W 36W 48W 60W 80W 100W 2

Spec:16pcs/tray                                                 10Tray/ESD Shieding Bag:160pcs
