Detail Information

Power:	1W	Models:	HY-2835B460-54V
Current:	20mA	Emitting Color:	Blue
Wavelength:	460-465nm	Luminous:	30-40lm
Customized:	Availabe	Viewing Angle(°):	120
High Light:	Blue 2835 SMD LED Chip , 2835 SMD LED Chip 1W , 465nm Blue LED SMD Chip

Product Description

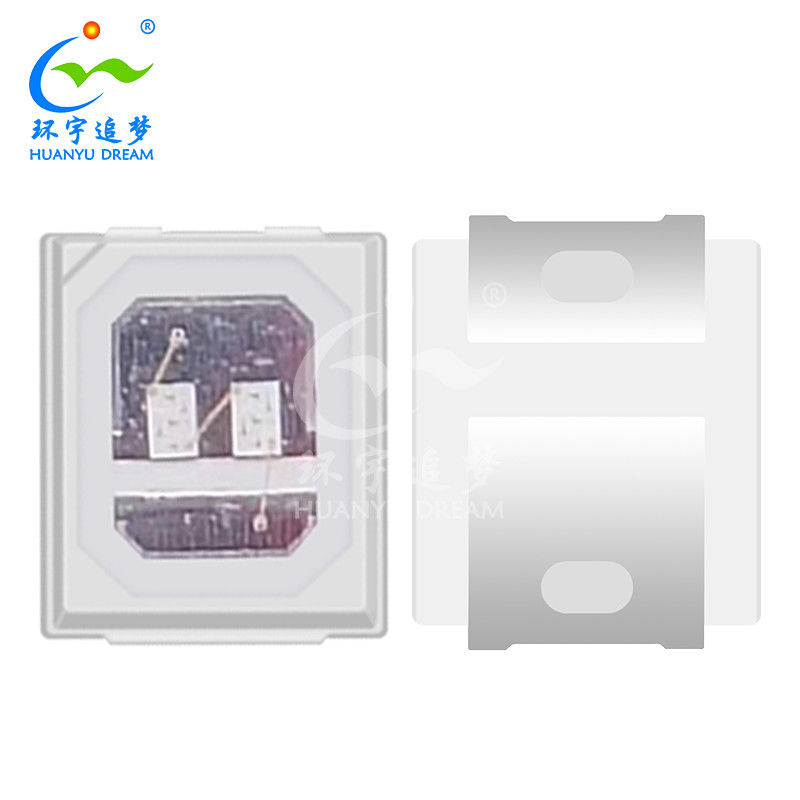

2835 High Voltage Blue 460-465nm SMD LED Chip 18V-72V With Low Power Consumption

Phosphor Blue High Voltage Series Smd Led Chips

Features

Pacakage Size:2.8(L)*3.5(W)*0.65(H)
Wide Voltage in 18V 36V 54V 72V
Colors are available in Red, Blue, Green,White
Long lifetime:>30000hrs
Compact SMD design with high Voltage
Copper base with ultra stability

Product Specifications(Phosphor Blue)

Models	HY-2835B620-18V-1S	HY-2835B620-36V-2S	HY-2835B620-54V-3S	HY-2835B620-72V-4S
Electronic power	0.5W/1W	1W	1W	1W
CCT	620-625nm
VF	18V	36V	54V	72V
IF	30mA/50mA	30mA	20mA	15mA
LUMINUOUS EFF	10-15lm/20-25lm	20-25lm	30-40lm	20-25lm
WHOLE SIZE	2.8*3.5mm
CHIP Brand	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years

Application

460nm-465nm Blue 2835 SMD LED Chip 18V-72V With Low Power Consumption 0

460nm-465nm Blue 2835 SMD LED Chip 18V-72V With Low Power Consumption 1

460nm-465nm Blue 2835 SMD LED Chip 18V-72V With Low Power Consumption 2

Delivery

460nm-465nm Blue 2835 SMD LED Chip 18V-72V With Low Power Consumption 3

Professional Product Progress

460nm-465nm Blue 2835 SMD LED Chip 18V-72V With Low Power Consumption 4

FAQ

Q1: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q2: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q3: How to process the order?

A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.

Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: Are you a factory or a trade company?
A6: We are the manufacturer specialize in smd and cob led chips since 2013.

As the manufacture of SMD/COB Led chips, We are confident for our quality of products because we have experienced R&D and advanced technique. Very hope to be one of your suppliers, Welocome to your inquiry.

Tag:

Place of Origin:	China
Brand Name:	HuanYu Dream
Certification:	Rohs
Model Number:	HY-High Voltage Blue Series

Minimum Order Quantity:	4000pcs
Price:	Negotiable
Packaging Details:	4000pcs/Reel
Delivery Time:	7-9 Work Days
Payment Terms:	T/T, Paypal,Ali Pay
Supply Ability:	500000pcs/Day
