1313 1919 2828 LED COB Chip 3W 10W 100W High Brightness

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-1311W60D3-3W
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Type: COB LED Chip Power: 3W/5W/7W/10W/15W/20W/30W/50W/100W
Voltage: DC12V/DC24V Color: White
Beam Angle: 120° CRI: Ra>80
SDCM: 3Steps Or 5Steps Warranty: 3 Years
High Light:

LED COB Chip 3W

,

2828 COB LED Chip

,

Chip COB LED 3W


Product Description

1313 1919 2828 COB LED Chip 3W 10W 100W COB LED With High Brigheness



Product Description:



COB LED Chip is an Ideal Solution for Indoor and Outdoor Lighting Applications. It Features High Reliability, High CRI, and High Luminous Efficacy. It Provides Excellent Color Consistency with SDCM in 3steps or 5steps, and it also has a long lifespan up to 50,000 hours and a 3-year warranty. Moreover, the package of COB LED Chip is customizable so that it can meet the needs of customers. Therefore, it is an ideal choice for professional lighting projects.



Product Features:
  • Product Name: COB LED Chip
  • CRI: Ra>80
  • SDCM in 3steps or 5steps
  • Application: Indoor/Outdoor Lighting
  • Lifespan: 50,000 Hours
  • Package: Customized
  • Voltage: DC12V/24V

COB LED Chips Specifications

S/N. Size
(MM)
Light Area
(mm)
Power
(W)
Voltage
(V)
Current
(mA)
Part No.

1

13*13 φ11 3W 9-10V 300mA HY01311-60D3-0303B
2 5W 15-17V HY01311-60D3-0503B
3 7W 21-23V HY01311-60D3-0702B
4 10W 30-34V HY01311-30D3-1002B
5 7-12W 36-39V HY01311-30D3-1202B
6 15W 45-45V HY01311-30D3-1502B
7 18W 54-58V HY01311-30D3-1802B
8 12-18W 36-39V 450mA HY01311-30D3-1203B
9 20-24W 36-39V 600mA HY01311-30D3-1204B
10 19*19 φ17 12W 36-39V 300mA HY01917-57D3-1202B
11 12-18W 450mA HY01917-57D3-1203B
12 18-24W 600mA HY01917-57D3-1204B
13 24-30W 750mA HY01917-57D3-1205B
14 30-36W 900mA HY01917-57D3-1206B
15 36-42W 1050mA HY01917-57D3-1207B
16 42-48W 1200mA HY01917-57D3-1208B
17 28*28 φ25 24-30W 36-39V 750mA HY02823-57D3-1205B
18 30-36W 900mA HY02823-57D3-1206B
19 36-42W 1050mA HY02823-57D3-1207B
20 42-48W 1200mA HY02823-57D3-1208B
21 48-60W 1500mA HY02823-57D3-1210B
22 80W 2200mA HY02823-57D3-1215B
23 100W 2800mA HY02823-57D3-1219B
24 38*38 φ34 200W 54-57V 3700mA HY03834-30D3-1826B
25 300W 5700mA HY03834-30D3-1838B
26 50*50 φ47 500W 72-76V 7200mA HY05047-30D3-2448B

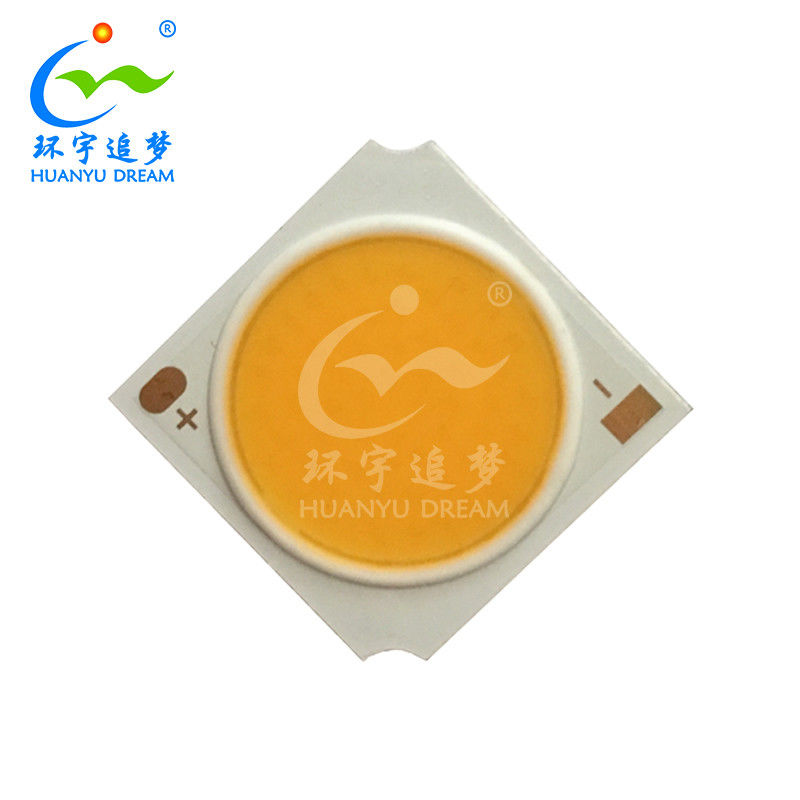

COB LED Chips Picture



1313 1919 2828 LED COB Chip 3W 10W 100W High Brightness 0 1313 1919 2828 LED COB Chip 3W 10W 100W High Brightness 1
1313 COB LED Chip 1919 COB LED Chip
1313 1919 2828 LED COB Chip 3W 10W 100W High Brightness 2 1313 1919 2828 LED COB Chip 3W 10W 100W High Brightness 3
2828 COB LED Chip 3838 COB LED Chip



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
