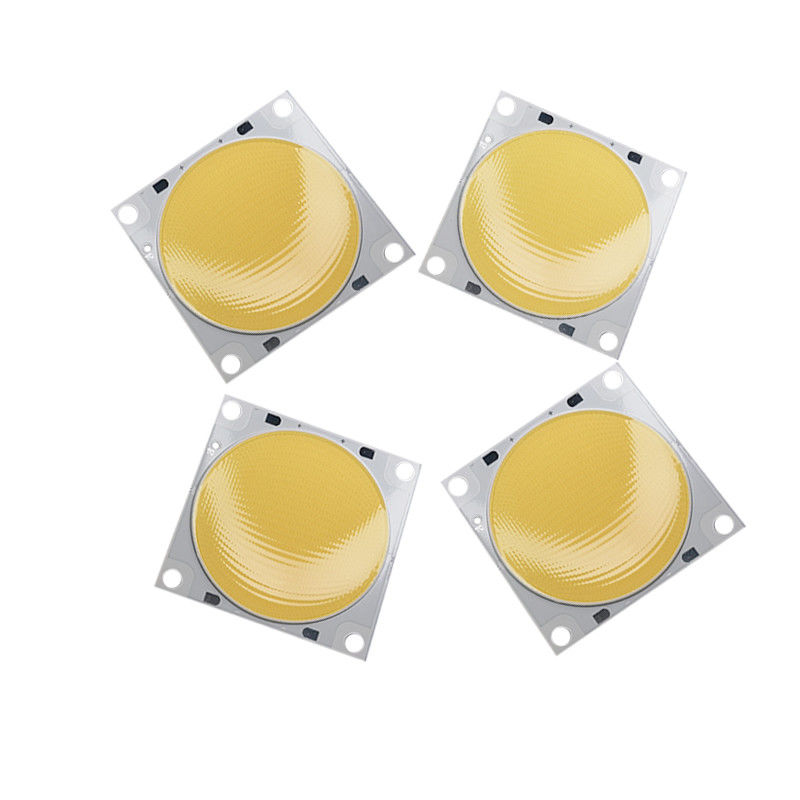

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: JC-5047
Minimum Order Quantity: 1piece
Price: Negotiated
Packaging Details: 4 pcs/Tray
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 30000 units per day
Detail Information
Name: 5047 COB Led Chips Power: 500 W
Series: 24S48P Current: 7000mA
Voltage: 70V-74V CRI: Above 95
CCT: 2700-7000K Size: 50*50(mm)
High Light:

cri95+ cob power led

,

500w cob power led

,

5047 high power cob


Product Description

High CRI CRI95+ 500W 5047 COB Led Chips F3000K F4000K F5600K F6500K







* Dimension 50.0 mm×50.0 mm×2.4 mm

* Wide viewing angle : 120°

* CRI: 95+

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

The White LED which was fabricated using a blue chip and phosphor





500W 5047 COB Led Chips

Model No. HY05047
Power 500W
Current 6800mA
Efficiency 100-110lm/w (RA>95) 130-140LM/W(RA>80)
Color Temp 2700-6000K
Voltage 72-76V
Size 50*50mm
Light Area
47mm
Series&Parallel 24S48P
SDCM ≤3
CRI Ra 95-98
Chip Brand Bridgelux/ Sanan
Substrate material Ceramics
Lifespan 50000h
Warranty 3years

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 0



Package Dimension





Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 1







Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 2













Optica Characteristic curve



Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 3

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 4



Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 5





















500W 5047 COB Led Chips Applications





Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 6



Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 7Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 8

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 9
