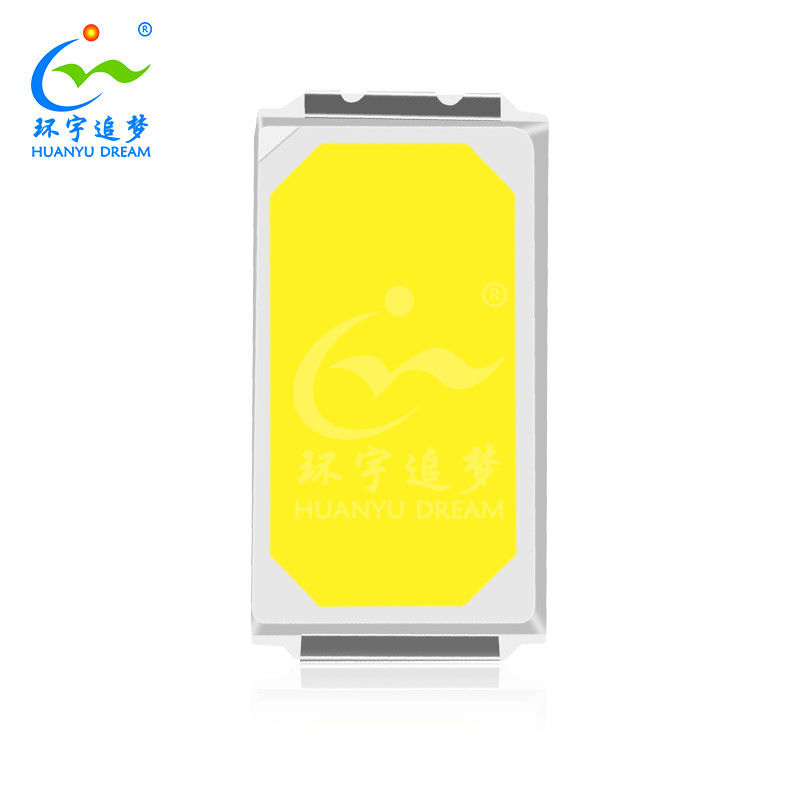

High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-5730W50A85-1S
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 4k/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 100KKpcs/Month
Detail Information
Type: 5730 SMD Chip LED Power: 0.5W
Current: 150mA Efficiency: 190-200LM/W
Color: 5000K CRI: 70
View Angle: 120degree Substrate: PCT
Highlight:

High Luminous 5730 SMD LED Chip

,

5730 SMD LED Chip 190LM/W

,

High Efficiency LED Chip 3V


Product Description

5730 High Efficiency SMD Chip LED 200LM/W at 150mA 0.5W





       HuanYu dream Mid-power 0.5w 5730 smd led offers super luminous efficacy 190-200lm/w at rated 150mA, which are the enviromental and economical light source solution for general lighting. Good quality material ensures high reliablity and long serving time.





Features

  • Great color uniformility
  • Reliability PLCC-2 package Design
  • Excellent dissipation
  • LED strip lights, down light, flood light, UAV light, panel light, grille light, led bulbs and other lighting fields.



Specification

Current voltage CCT CRI TYP Flux (lm) Efficiency Part number

150mA

2.8-3.0V 5000K 80 80-85lm @60mA, up to 180-190lm/w HY-5730W50A85-1S



























NOTE:

70Ra/90Ra/95Ra/98Ra is Available

CCT can be changable, such as 3000K,4000K, 6000K and others





Electrical - Optical Characteristics at Ta=25℃

Type Symbol Test condition Value Unit
      Min. Typ. Max.
Forward Voltage VF IF=150mA 2.8 -- 3.0 V
6000K-7000K φ IF=150mA 80   85 Lm
Reverse Current IR VR=5V -- -- 1 uA
Viewing Angle 2θ1/2 IF=150mA   120   Deg
Color Rendering Index CRI IF=150mA 80 -- 83 --
Thermal resistance Rth(j-s) IF=150mA -- -- 28 ℃/W




Test report

@60mA

High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light 0

@150mA

High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light 1



Measurement

High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light 2






Package Specifications

(1)The LEDs are packed in carboard boxes after taping

(2)Taping Specification(units:mm)



High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light 3



(3) Reel Dimension

High Luminous 5730 SMD LED Chip 190LM/W 3V 150mA For Flood Light 4

Package:4000Pcs/Reel





FAQ

Q1. Do you have any minimum order quantity (MOQ) for LED light orders? What is the payment method?

A: The MOQ for each model is 100pcs. We accept T/T, PayPal, and Western Union as payment methods.



Q2. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 2-5 days to arrive. We also offer airline and sea shipping as options.



Q3.Can I place an order for LED lights?

A: Yes, we are happy to accept sample orders for LED lights to test and verify quality. Mixed samples are acceptable.



Q4. What is the lead time for LED light orders?

A: The lead time for samples is 1-3 days, and it takes 3-7 days for mass production depending on the order quantity.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. How do I handle a faulty product?

A: Our products are produced under strict quality control system, and the defective rate is less than 0.2%. If you receive a faulty product, please first contact us and provide us with the fault details. We will send you a new product within the guarantee period.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: Is it allowed to print my logo on the LED light product?

A: Yes, it is allowed. Please inform us in advance before production, and we will confirm the design with you based on our sample.
