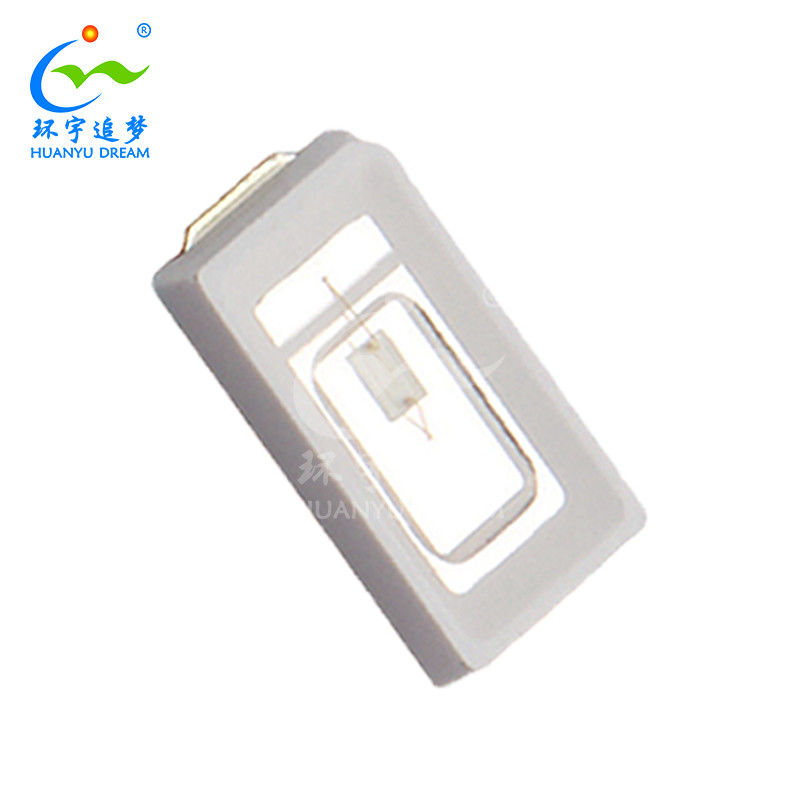

395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption

395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption
395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption 395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption 395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption 395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption
Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-5730U395-1021-2S
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Get Best Price Contact Now
Detail Information
Type: 5730 UV LED Current: 300mA
Voltage: 3.0-3.2V Wavelength: 395-405nm
Feature: High Reliability Warranty: 3 Years
High Light:

405nm UV LED Chip

,

Chip SMD LED 5730

,

LED SMD 5730 Chip

Product Description

High Reliability 5730 UV LED 1W 395-405nm Chip Smd Led With Low Power Consumption

5730 UV LED Specification

High Reliability, Copper Base smooth UV color, Great for performance stages, theatrical productions and special effects productions, lithography equipment, and more



5730 UV LED Features

  • Other colors available in  Red,  Green, Blue, Yellow, IR
  • Great Color Consistent and Smooth light quality
  • Surface Mount Device, PLCC-2
  • RoHS complaint
  • Gold Wire bond





5730 UV LED Details

Color Wavelength(nm) VF(V) IF(mA) Luminous Flux Part number
Red 620-630nm 2.0-2.4 150 12-16lm HY-5730R620
Plant Red 660-665nm 2.0-2.4 150 8-10lm HY-5730R660

Green

 520-530nm 2.8-3.2 150 35-50lm HY-5730G20
Blue 460-470nm 2.8-3.2 150

14-16lm

 HY-5730B460
Yellow 590-595nm 2.0-2.4 150 15-20lm HY-5730Y590
UV 395-405nm 3.0-3.2 150 1-2lm HY-5730UV395
IR 730-735nm 2.0-2.2 150 -- HY-5730R730









Package Dimension



395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption 0





Application

395nm-405nm UV LED Chip SMD LED 5730 Low Power Consumption 1







Company Service



1. 3 Years quality guarantee.

2. unconditional return back if unsatisfied with quality.

3. Provide lowest cost for goods' shippments.

4. Provide customized color temperature and CRI if needed.

5. Provide full data sheet and test report for every order every item.

7. Provide enough market and prices info for other accessories for your lamp manufacturers.

8. Provide VIP SPECIAL discounts for big orders and long-term cooperation customers.
