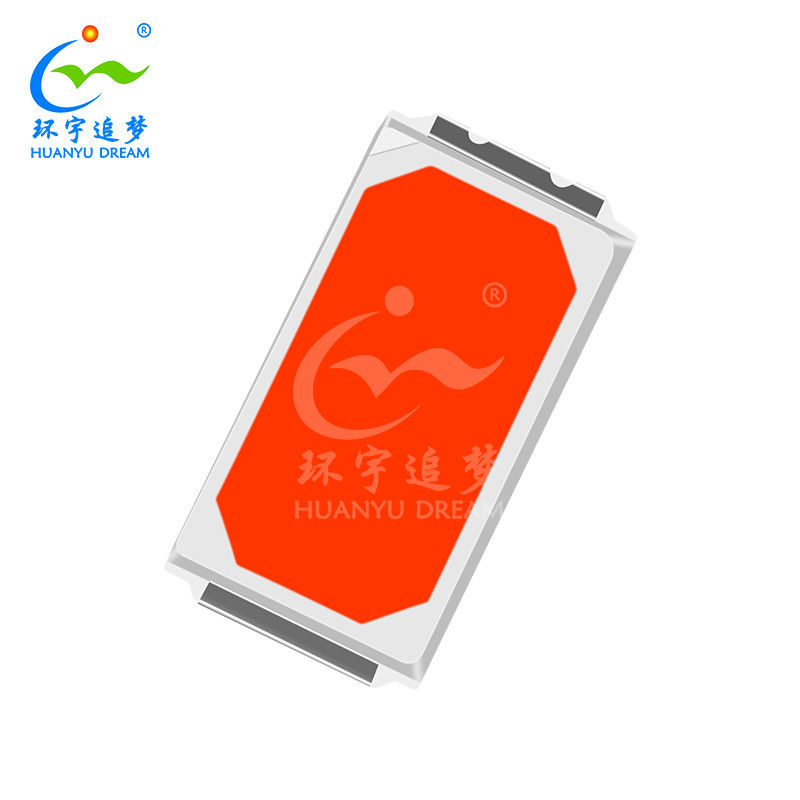

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle

Name: Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5730G520L30-1S
Price: 12.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: RoHS

Model Number: HY-5730G520L30-1S

Payment & Shipping Terms

Minimum Order Quantity: 2000pcs

Price: Negotiable

Packaging Details: 4000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 500kpcs/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                5730 SMD LED Chip 0.5W, Surface Mount 5730 SMD LED Chip, LED 5730 SMD Chip


Type:	5730 Green	Voltage:	3.0-3.4V
Color:	2700-6500	Lifespan:	50000 Hours
Warranty:	3 Years	Colloid Color:	Transparent
Emission Color:	Red	Current:	150 MA

Type:	5730 Green
Voltage:	3.0-3.4V
Color:	2700-6500
Lifespan:	50000 Hours
Warranty:	3 Years
Colloid Color:	Transparent
Emission Color:	Red
Current:	150 MA

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle

Surface Mount LEDs 5730 Smd Led Chip Red 3V 150mA 0.5W 5730 smd led diode

Led SMD 5730 Red Introduction

5730 SMD LED Diode, Plcc-2 Surface Mount SMT 5730,Gold wire, copper bracket, Epistar chip, long lifespan, Super high brightness, Wide Viewing Angle: 120 Degrees

Parameters: DC 3.0V-3.2V Volt 150mA; 2.0-2.2v 60mA (Red/Yellow), Size: 5.7 X 3.0 X 0.8 (mm), Anode and Cathode Polarity: Please Refer to A+ page, Surface-Mount Device, Pack of 100 Pieces LED diode(mini Chip)

CUSTOMIZE YOUR LIFE: Light up your dashboard with a unique pop of color unlike anyone else. Replace the LEDs in your car dash, truck, motorcycle instrument cluster, xbox controller, or anywhere else. Outstanding value for brightness.

ENDLESS POSSIBILITIES: 1000's of creative uses, whether you want to light up your car, truck, boat, house, our high quality Surface Mount SMD PLCC-2 5730/5630 LEDs are just what you need. The project ideas are endless, and we love seeing new ways our customers use our LEDs. Send us your application photos!

LIFETIME GUARANTEE: We sell products that last. Our rock-solid guarantee means we'll replace you it if there's ever a problem. Pass it on to the next generation with confidence.

Led SMD 5730 Red Dimension (Tolerance:+/-0.1mm. Unit:mm)

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle 1

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle 2

Led SMD 5730 Red Details

Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol	Item	Units	Min.	Typ.	Max.	Test Conditions
VF	Forward Voltage	V	2.0		2.4	IF=150mA
IR	Reverse Current	uA	-	-	5	VR=5V
2θ½	Viewing Angle	º	-	120º	-	IF=150mA
ø	Luminous flux	lm	20		25	IF=150mA
IV	Light intensity	mcd	6500		8000	IF=150mA
WLD	Dominant wavelength	nm	620	625	630	IF=150mA

Absolute Maximum Ratings (TA=25±5ºC)

Item	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	150	mA
Pulse Forward Current	IFP	200	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	600	mW
Operating Temperature	Topr	-40ºC To +85ºC	°C
Storage Temperature	Tstg	-40ºC To +85ºC	°C
Soldering Temperature	Tsld	Reflow Soldering: 260ºC Hand Soldering : 350ºC	for 10sec. for 3sec.

Led SMD 5730 Red Application

High Power LED Lamp
Indoor lighting: Fluorescent lamp, tube
Commercial Illuminate and displays: Advertising words, light box
Decorative Lighting: Light Strip
Other illuminations
Led back lighting

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle 3

About us

Surface Mount 5730 SMD LED Chip 0.5W 3V 150mA Wide Viewing Angle 4

FAQ

Q1: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q2: Are you a factory or a trade company?

A: We are the manufacturer specialize in smd and cob led chips since 2013.

Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: How to process the order?
A6: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
