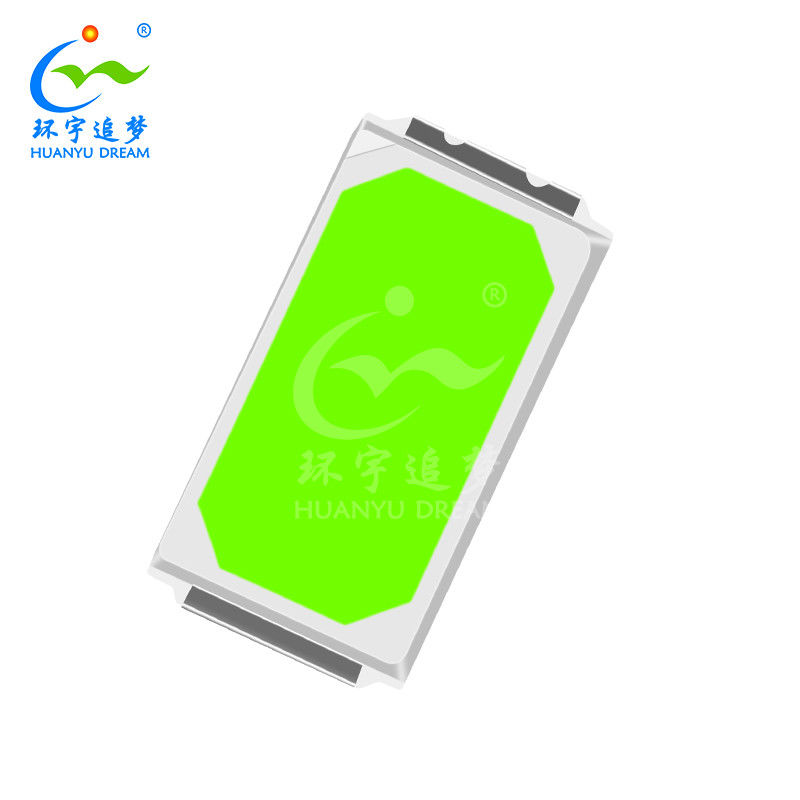

SMD5730 Green LED Chip 3V 150mA 0.5W 50000 Hours Lifespan

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-5730G520L30-1S
Minimum Order Quantity: 2000pcs
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500kpcs/Day
Detail Information
Type: 5730 Green Current: 150 MA
Voltage: 3.0-3.4V Color: 2700-6500
Lifespan: 50000 Hours Warranty: 3 Years
Colloid Color: Transparent Emission Color: Green
High Light:

SMD5730

,

5730 Green LED Chip

,

Green LED Chip 3V


Product Description

Gold Wire Copper Bracket 3V 150mA 0.5W SMD 5730 LED Green 5730 Chip Smd Led



5730 Green Smd Led Chip Features

Parameters: DC 3.0V-3.2V Volt 150mA; 2.0-2.2v 60mA (Red/Yellow), Size: 5.7 X 3.0 X 0.8 (mm), Anode and Cathode Polarity: Please Refer to A+ page, Surface-Mount Device, Pack of 100 Pieces LED diode(mini Chip)



5730 SMD LED Diode, Plcc-2 Surface Mount SMT 5730,Gold wire, copper bracket, Epistar chip, long lifespan, Super high brightness, Wide Viewing Angle: 120 Degrees





CUSTOMIZE YOUR LIFE: Light up your dashboard with a unique pop of color unlike anyone else. Replace the LEDs in your car dash, truck, motorcycle instrument cluster, xbox controller, or anywhere else. Outstanding value for brightness.



ENDLESS POSSIBILITIES: 1000's of creative uses, whether you want to light up your car, truck, boat, house, our high quality Surface Mount SMD PLCC-2 5730/5630 LEDs are just what you need. The project ideas are endless, and we love seeing new ways our customers use our LEDs. Send us your application photos!





SMD5730 Green LED Chip 3V 150mA 0.5W 50000 Hours Lifespan 0









5730 Green Smd Led Chip Dimension (Tolerance:+/-0.1mm. Unit:mm)



SMD5730 Green LED Chip 3V 150mA 0.5W 50000 Hours Lifespan 1



SMD5730 Green LED Chip 3V 150mA 0.5W 50000 Hours Lifespan 2







Electrical / Optical characteristics

(1) Absolute Maximum Ratings (TA=25±5ºC)

Item Symbol



Absolute Maximum Rating



Unit

Forward Current IF 150 mA
Pulse Forward Current IFP 200 mA
Reverse Voltage VR 5 V
Power Dissipation PD 600 mW
Operating Temperature Topr -40ºC To +85ºC °C
Storage Temperature Tstg -40ºC To +85ºC °C
Soldering Temperature Tsld

Reflow Soldering: 260ºC

Hand Soldering : 350ºC

for 10sec.

for 3sec.







(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbo

Item

Units

Min. Typ. Max.



Test Conditions

VF

Forward Voltage

V 3.0   3.4 IF=150mA
IR

Reverse Current

uA - - 5 VR=5V
2θ½ Viewing Angle º - 120º - IF=150mA
ø

Luminous flux

lm 30   35 IF=150mA
IV

Light intensity

mcd 9000   10000 IF=150mA
WLD

Dominant wavelength

nm 520 525 530 IF=150mA











5730 Green Smd Led Chip Application

  • High Power LED Lamp
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial Illuminate and displays: Advertising words, light box
  • Decorative Lighting: Light Strip
  • Other illuminations
  • Led back lighting

SMD5730 Green LED Chip 3V 150mA 0.5W 50000 Hours Lifespan 3
