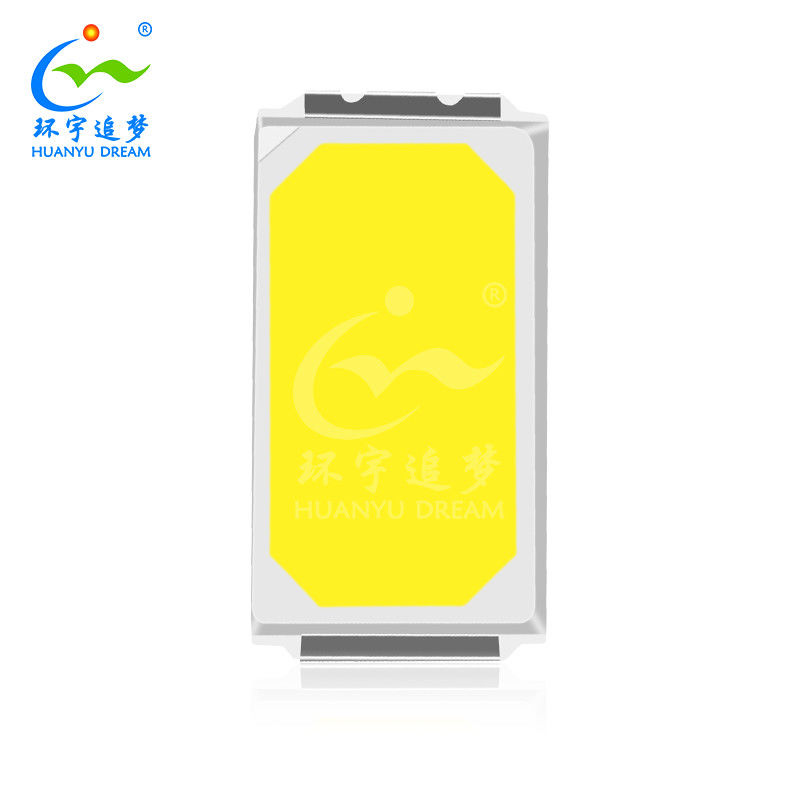

0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-5730W40B60-1S
Minimum Order Quantity: 2000pcs
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500kpcs/Day
Detail Information
Type: SMD 5730 LED CHIP Current: 150 MA
Voltage: 3.0-3.4V Ra: 80
Brightness: 55-60LM Lifespan: 50000 Hours
Viewing Angle: 120º CCT: 8000-10000K
High Light:

10000K SMD LED Chip

,

CRI 80 SMD LED Chip

,

SMD LED Chip 5730


Product Description

SMD 5730 LED Chip Features



  • Package Size:5.7(L)x3.0(W)
  • Compact SMD design with high brightness
  • Copper base with ultra stability
  • Consistent Color and Smooth environment
  • Super long lifetime:>30000hrs



0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 0





















SMD 5730 LED Chip Dimension (Tolerance:+/-0.1mm. Unit:mm)





0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 1

0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 2











Electrical / Optical characteristics



(1) Absolute Maximum Ratings (TA=25±5ºC)

Item Symbol



Absolute Maximum Rating



Unit

Forward Current IF 150 mA
Pulse Forward Current IFP 200 mA
Reverse Voltage VR 5 V
Power Dissipation PD 600 mW
Operating Temperature Topr -40ºC To +85ºC °C
Storage Temperature Tstg -40ºC To +85ºC °C
Soldering Temperature Tsld

Reflow Soldering: 260ºC

Hand Soldering : 350ºC

for 10sec.

for 3sec.







(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)

Symbol

Item

Units

Min. Typ. Max.

Test Conditions

VF

Forward Voltage

V 3.0   3.4 IF=150mA
IR

Reverse Current

uA -   5 VR=5V
2θ½  Viewing Angle º - 120º - IF=150mA
ø

Luminous flux

lm 55   60 IF=150mA
TC

Colour Temperature

k 8000   10000 IF=150mA
RA

Color Rendering Index

Ra 80   85 IF=150mA











SMD 5730 LED Chip Application

  • High Power LED Lamp
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial Illuminate and displays: Advertising words, light box
  • Decorative Lighting: Light Strip
  • Other illuminations
  • Led back lighting

0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 3

0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 4







0.5W 10000k CRI 80 SMD LED Chip 5730 For Decorative Lighting 5









FAQ
Q1: Are you a factory or a trade company?
A1: We are the manufacturer specialize in smd and cob led chips since 2013.




Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.




Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.





Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.




Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.



Q6: How to process the order?
A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
