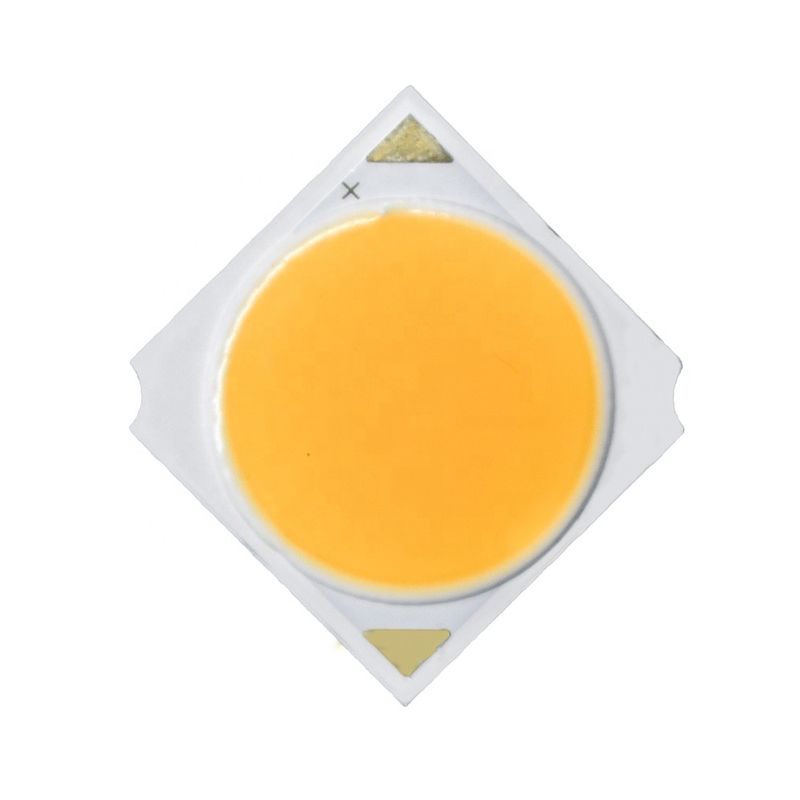

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W

Name: 3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY01917-W30-0805B
Price: 1.2 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY01917-W30-0805B

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD1.2/pc

Packaging Details: 49pcs/Tray

Delivery Time: 10-15 Work Days

Payment Terms: T/T, Paypal,Ali Pay,, Western Union

Supply Ability: 30000 units per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                4000K High CRI COB LED, High CRI COB LED 1919, High CRI LED Chip 20W


Power:	20W	Size:	19*19mm( Dia17mm)
CCT:	3000K	Voltage:	24-27V
CRI:	98Ra	Power Dissipation:	0.1
Warranty:	3years	Life Span:	50000Hrs

Power:	20W
Size:	19*19mm( Dia17mm)
CCT:	3000K
Voltage:	24-27V
CRI:	98Ra
Power Dissipation:	0.1
Warranty:	3years
Life Span:	50000Hrs

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W

High CRI Ra98 3000K/4000K COB LED Chip 1919 Hot Selling Chip On Board 20W

COB 1919 Warm White 3000K High CRI Ra98

High Reliability and Stability
Quality light with Super high CRI, Max. Up to 98Ra.
Regular models in stock
Pure gold wire bonding chips in circular array
High quality Aluminum or Copper substrate applied
Strict Chip Selection to maintain color consistency (Mac Adam 3 steps, 4 steps and 5 steps or customer defined binning X Y Coordinates range)

Hot selling COB LED 1919 (Customize CCT& CRI& Volt)
Power	30-36W (12-48W available)
Voltage	24-27V
Current	600-750mA
Series/Parallel	8S5P
Lumens	140-160lm/W( Ra>80 )
Lumens	110-130lm/W (Ra>90)
CCT	3000K ( customize available1800K-20000K)
CRI	Ra 98( CRI 70/ 80 /90/95 as choose)
Junction temperature	115 ℃
Solder temperature	350 ℃
Operating Temperature	-40 ~ + 85 ℃

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 0

Packge Dimension(Units:mm)

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 1

Available Watt for 1919mm

Size	Les(Dia)	Power	S&P	VF	IF	LM/W
19*19mm	17mm	42-48W	12S8P	36-39V	1050-1200mA	140-160LM/W(Ra>80) 110-130LM/W (Ra>95)
		36-42W	12S7P		900-1050mA
		30-36W	12S6P		750-900mA
		24-30W	12S5P		600-750mA
		18-24W	12S4P		450-600mA
		12-18W	12S3P		300-450mA
		12W	12S2P		300mA

Warm White Application

The Warm White has a very natural light colour, excellent colour rendering 98Ra, high visual fidelity and presents the illuminated object in a very bright, warm colour. Comfort, sense of space, high-end artistic effect is the key element of lighting design for art museum paintings hotels and other commercial places.

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 2

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 3

Factory Information

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 4

3000K 4000K 98Ra High CRI COB LED 1919 Chip On Board 20W 5

Contact Huanyu Dream to get the quote, We have the experience of than 10years, which is a professional led chip solutions manufacture that helps customer to get the highest levels of performance in LED Lighting.
