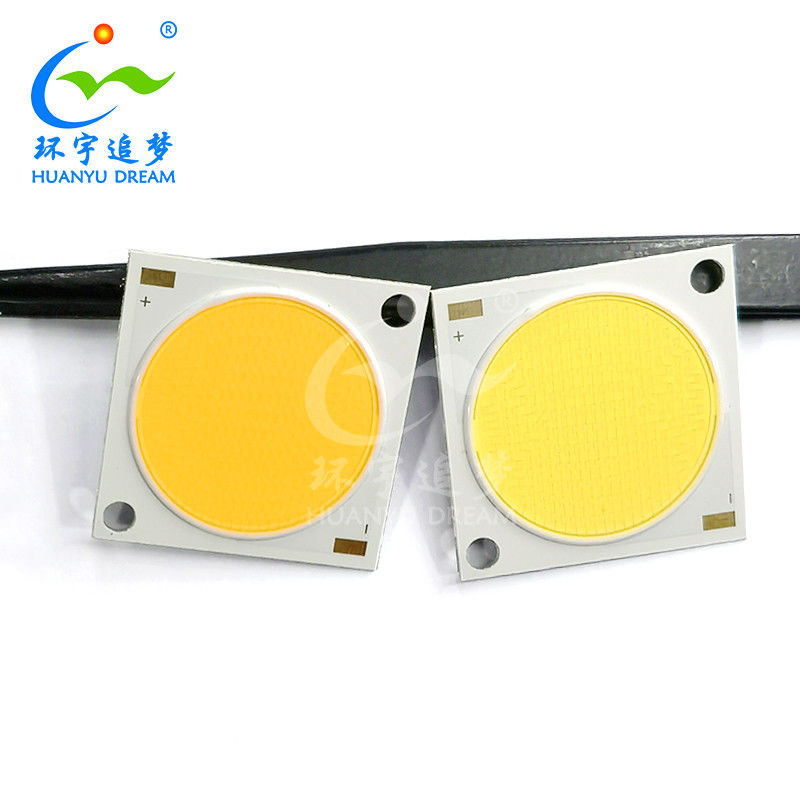

2828 High CRI COB LED 98Ra+ High Power 120W DC34-36V Customized

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY2825W56-12S25P-10C-J0
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 25pcs/Tray
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 30000 units per day
Detail Information
Models: High Cri Series 28*28mm Power: 120W
Voltage: 34-36V Current: 3200mA
LES: 25mm CCT: 5000-5500K
CRI: 98Ra LUMINOUS: 8000-9000LM
Customize: Support
High Light:

2828 High CRI COB LED

,

High CRI COB LED 98Ra+

,

High CRI LED COB 120W


Product Description

High CRI COB LED 98Ra+ High Power 120W DC34-36V Support The Customized Sevice



High Cri 98Ra LED COB 120W 2828 LES25



     HuanYu Dream high cri cob led chip takes into account the high visibility of lighting products, no dark spots, and uniform lighting.It is very suitable for indoor and outdoor lighting design, High CRI Series means that the color rendering index of artficial standard light source is close to that of sunlight.  The higher the color consistency of the same object ilumnated by the tested light source and the standard light source, the greater the Ra, the beter the color rendering performance,and vice versa.



Spec



Model No. HY-2825W50-12S25P-10C-J0 HY-2825W50-12S18P-100-J0-2235
Input Voltage(V) 34-36V 36-39V
Current 3200mA 2700mA
CCT 5000-5500K 5600K
Typical Power 120W 100W
Lumens(lm) 13000-14000 12000-13000lm
CRI 98Ra 98Ra
Viewing angle 120°
Operating Temperature -40 ~ + 85
Storage Temperature -40 ~ + 100



Note: The table is our popular models, we accept the customized according your current and voltage, and CCT,

          This 28*28mm size, the max power are 120W, and the CCT range from 1800K-6500K,



Dimension

2828 High CRI COB LED 98Ra+ High Power 120W DC34-36V Customized 0



High Cri Appliation Condition

2828 High CRI COB LED 98Ra+ High Power 120W DC34-36V Customized 1



2828 High CRI COB LED 98Ra+ High Power 120W DC34-36V Customized 2

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But our clients need to cover the freight.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 7-15days according to the order quantity .



Q3. What's the Payment way ?

A:We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7days to arrive.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.(such as size, color, power, voltage, CCT, CRI...)

Secondly We send you the Technique data for you reference. and quote you

Thirdly customer confirms the samples and we can check the freight for customer, then we will send the PI for you

Fourthly customer places an order , then we will arrange the produce and delievey.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
