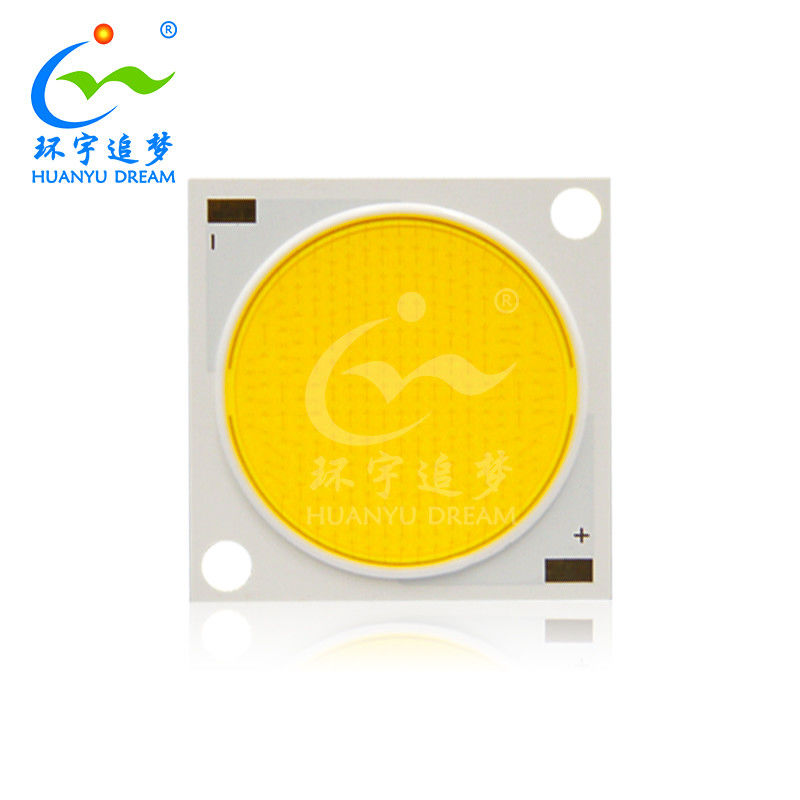

2828 30W COB LED Chip Warm White 3000K-3500K Ra96 Mirror Aluminium

Name: 2828 30W COB LED Chip Warm White 3000K-3500K Ra96 Mirror Aluminium
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-2825-W30-12S5B-30W
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HYZM

Certification: RoHS

Model Number: HY-2825-W30-12S5B-30W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Packaging Details: 4pcs/Trau

Delivery Time: 5-10 days

Payment Terms: T/T

Supply Ability: 10000pcs/Day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                30W COB LED Chip, 3500K COB LED Chip


Size:	28.0(W)28.0(L)1.5(H)	Power:	30W
Lumens:	3100-3300lm	Input Voltage(V):	35-37V
Color Temperature:	3000-3500K	CRI:	96
Warranty:	3 Years	Support:	Customizable

Size:	28.0(W)28.0(L)1.5(H)
Power:	30W
Lumens:	3100-3300lm
Input Voltage(V):	35-37V
Color Temperature:	3000-3500K
CRI:	96
Warranty:	3 Years
Support:	Customizable

2828 30W COB LED Chip Warm White 3000K-3500K Ra96 Mirror Aluminium

30W COB LED 2828 35-37VDC Warm White 3000-3500K Ra96 Mirror Aluminium

30W High CRI 96Ra 2828 3000-3500K COB LED Chip

Power range from 24 to 120W
Available in a broad range of CCTs from 1700K to 7000K and CRI from 80Ra to 98Ra
Material:Copper Brackets working
Excellent color reproduction
Long life span and high reliability
RoHS compliant > 50000 hrs

Specfication

Model No.	HY-2828-30A0-1205B-30W
Input Voltage(V)	35-37V
Current	750mA
CCT	3000-3500K
Typical Power	30W
Lumens	3100-3300lm
CRI	96Ra
Emitting Color	Warm White
Viewing angle	120°
Operating Temperature	-40 ~ + 85
Storage Temperature	-40 ~ + 100

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	36	W
Forward Current	IF	750	mA
Peak Forward Current	IFP	950	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

SIZE

2828 30W COB LED Chip Warm White 3000K-3500K Ra96 Mirror Aluminium 0

Application

2828 30W COB LED Chip Warm White 3000K-3500K Ra96 Mirror Aluminium 1

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But our clients need to cover the freight.

Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 7-15days according to the order quantity .

Q3. What's the Payment way ?

A:We accept T/T Paypal and Western Union three ways payment.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7days to arrive.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.(such as size, color, power, voltage, CCT, CRI...)

Secondly We send you the Technique data for you reference. and quote you

Thirdly customer confirms the samples and we can check the freight for customer, then we will send the PI for you

Fourthly customer places an order , then we will arrange the produce and delievey.
