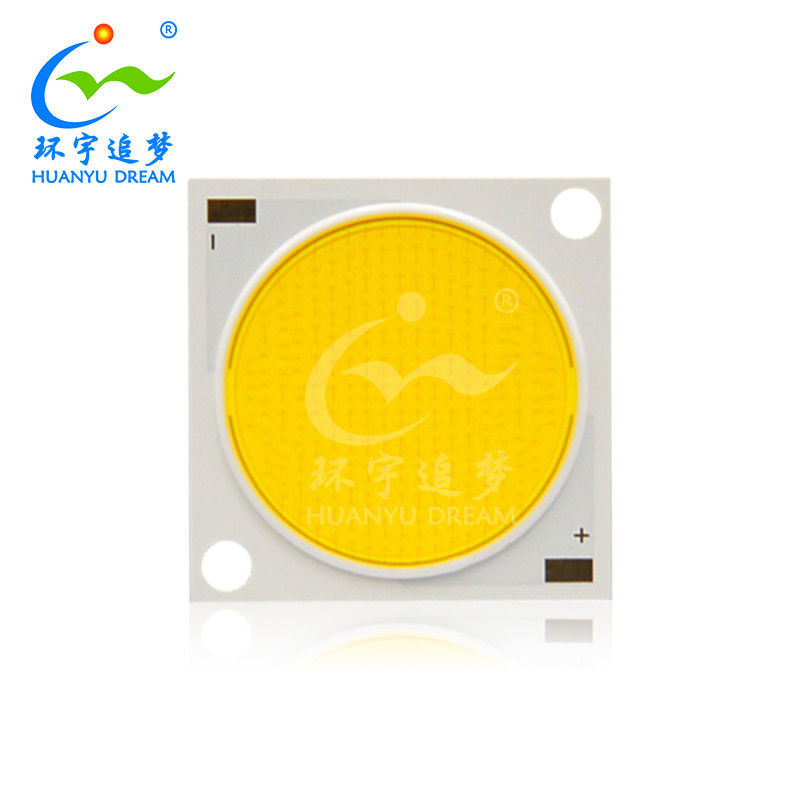

1917 1311 2825 COB LED CRI 95Ra+ Size For Indoor / Outdoor Lighting

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-1917-30W
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 49pcs/Tray
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay,, Western Union
Supply Ability: 30000 units per day
Detail Information
Size: 19*19mm( Dia17mm) Power: 30W
Voltage: 30-35V CCT: 5000K
CRI: 96Ra Warranty: 3years
Available CCT: 1800-7000K Power Dissipation: 0.1
High Light:

LED COB CRI 95Ra+

,

COB LED CRI 95Ra+


Product Description

High CRI COB LED 95Ra+ 1919( LES17mm) , 1313(Les11mm), 2828(Les11mm)



        HuanYu Dream high cri cob led chip takes into account the high visibility of lighting products, no dark spots, and uniform lighting.It is very suitable for indoor and outdoor lighting design, convenient for transportation and cutting, and has been widely used in hotels, exhibition halls, shops, car tail lights and other fields.



          In door lighting engineering, due to the diversity of iluminated obiects (such as people, prints, fabrics, etc.), rich colors, close viewing distance, and high reguirements for color reproduction accuracy, designers usualy choose high-definition products, requiring Ra> 90.



         High CRI means that the color rendering index of artficial standard light source is close to that of sunlight. The higher the color consistency of the same object ilumnated by the tested light source and the standard light source, the greater the Ra, the beter the color rendering performance,and vice versa.



1919 High Cri Series



   Item

Size

Les(Dia)
Power
S&P
VF
IF



LM/W



      CRI
HY-1917-42W






19*19mm









17mm



42-48W



12S8P






36-39V
1050-1200mA
140-160LM/W(Ra>80)

110-130LM/W (Ra>95)

90Ra+

96Ra/97Ra/98Ra

HY-1917-36W



36-42W



12S7P
900-1050mA
HY-1917-30W



30-36W



12S6P
750-900mA
HY-1917-24W



24-30W



12S5P
600-750mA
HY-1917-18W



18-24W



12S4P
450-600mA
HY-1917-3P



12-18W



12S3P
300-450mA
HY-1917-12W



12W



12S2P
300mA





1313High Cri Series



Size



Les

Power

Voltage(V)

IF(mA)

CCT(K)

LM/W

CRI

13*13mm

φ11mm



20-24W



36-39

500-600

2700-7000

140-160LM/W(Ra>80)



110-130LM/W (Ra>95)

90Ra+

95Ra/96Ra/97Ra/98Ra

12-18W

36-39

300-450



18W



54-58

300

15W

45-48

300

7-12W

36-39

180-300

10W

30-34

300

7W

21-23

5W

15-17



3W



9-10



2828 High Cri Series

Models Power(W) Size(mm) Light Emitting Series&
Parallel
Voltage CRI Current
HY02823-57D3-1219B 100W 28*28mm φ25mm 12S19P 36-39V

90Ra+

95Ra/96Ra/97Ra/98Ra

2800mA
HY02823-57D3-1215B 80W 12S15P 2200mA
HY02823-57D3-1210B 48-60W 12S10P 1200-1500mA
HY02823-57D3-1208B 42-48W 12S8P 1050-1200mA
HY02823-57D3-1207B 36-42W 12S7P 900-1050mA
HY02823-57D3-1206B 30-36W 12S6P 750-900mA
HY02823-57D3-1205B 24-30W 12S5P 600-750mA



Application

1917 1311 2825 COB LED CRI 95Ra+ Size  For Indoor / Outdoor Lighting 0

1917 1311 2825 COB LED CRI 95Ra+ Size  For Indoor / Outdoor Lighting 1



Contact Huanyu Dream to get the quote, We have the experience of than 10years, which is a professional led chip solutions manufacture that helps customer to get the highest levels of performance in LED Lighting.
