Detail Information

Type:	COB Led	Voltage:	9-10V
Power:	3-24W	Current:	300 MA
Color Temperature:	2700-6000K
High Light:	High Efficiency COB LED 6000K , Ra 95 High Efficiency COB LED , 3W LED COB 6000K

Product Description

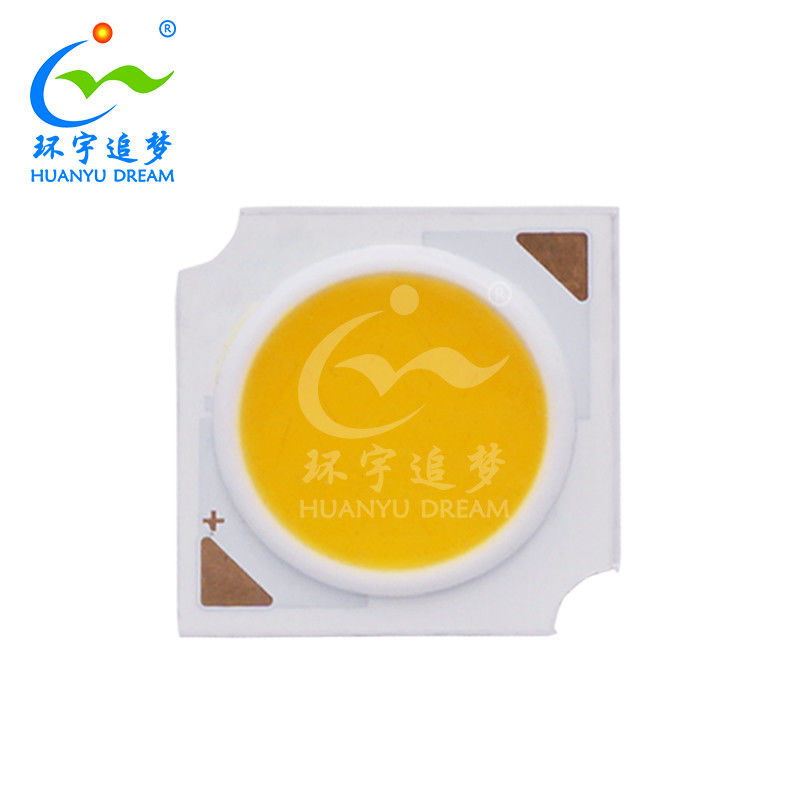

Ra 95 High Efficiency 1313 COB LED Chip 3W-20W CCT 2700K-6000K

1313 COB LED Chip Features

* High luminous efficacy
* Aluminum base
* High intensity circular chip array
* RoHS compliant
* Professional super
* high CRI commercial lighting
* Smooth light quality

This COB LED adopted high quality aluminum base, large luminous area with circular chip array design, is widely applied to high-end professional commercial lighting with ultimate highlight efficacy, CRl and heat conduction, CRI can go up to 98 with smooth and cozy light qualitywhich brings great experience of light. The COB1313 LED is optimized for down light, par lightspot light, track light and projector lamp etc,

Ra 95 High Efficiency COB LED 6000K 3W-20W RoHS Compliant 0

1313 COB LED Chip Specification

Size	Les	Power	Voltage(V)	IF(mA)	CCT(K)	CRI
13*13mm	φ11mm	20-24W	36-39	500-600	2700-7000	95Ra
		12-18W	36-39	300-450
		18W	54-58	300
		15W	45-48	300
		7-12W	36-39	180-300
		10W	30-34	300
		7W	21-23
		5W	15-17
		3W	9-10

Ra 95 High Efficiency COB LED 6000K 3W-20W RoHS Compliant 2

Electrical - Optical Characteristics at Ta=25℃

Type	Symbol	Test condition	Value			Unit
Type	Symbol	Test condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=300mA	7	9	11	V
2550K-310K	φ	IF=300mA	300	--	350	Lm
3100K-4050K	φ	IF=300mA	320	--	370	Lm
4050K-7000K	φ	IF=300mA	350	--	400	Lm
Viewing Angle	2θ1/2	IF=300mA		120		Deg
Color Rendering Index	CRI	IF=300mA	80	--	83	--
Thermal resistance	Rth(j-s)	IF=300mA	--	--	0.67	℃/W

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	3	W
Forward Current	IF	300	mA
Peak Forward Current	IFP	400	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

Packaging Specifications

Ra 95 High Efficiency COB LED 6000K 3W-20W RoHS Compliant 3

49 PCS/Tray 10Tray/ESD Shieding Bag:490pcs

Application

Ra 95 High Efficiency COB LED 6000K 3W-20W RoHS Compliant 4

FAQ

Q: Would you offer free samples?
A:Yes, We would offer free samples for test quality at first.

Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2013.

Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.

Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.

Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.

Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!

Tag:

Place of Origin:	China
Brand Name:	HuanYu Dream
Certification:	Rohs
Model Number:	HY1313-30D3

Minimum Order Quantity:	1piece
Price:	Negotiate
Packaging Details:	49pcs/Tray
Delivery Time:	10-15 Work Days
Payment Terms:	T/T, Paypal,Ali Pay
Supply Ability:	30000 units per day
