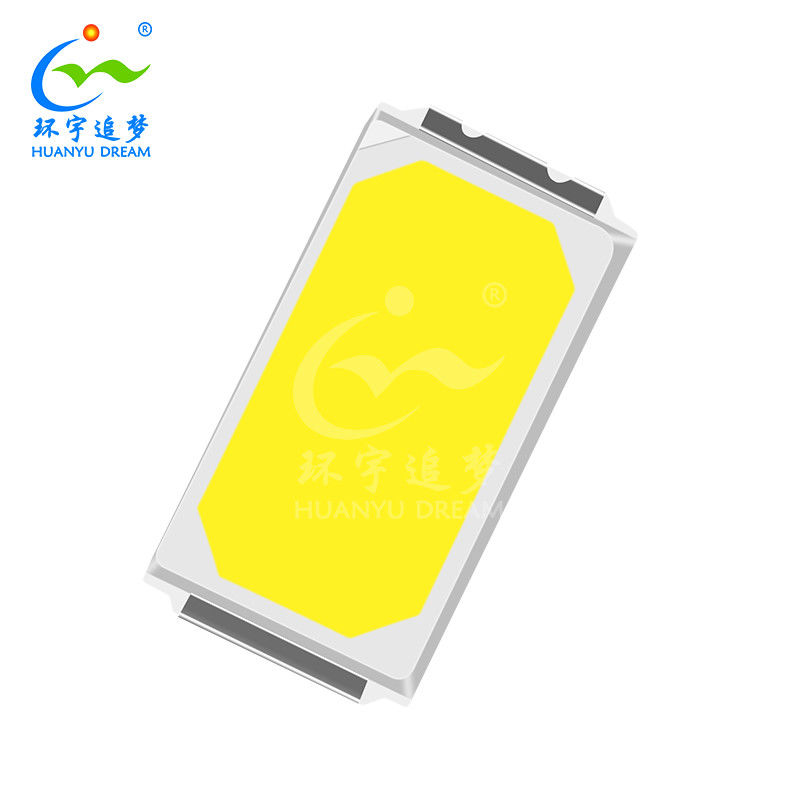

High Voltage 5730 SMD LED Chip 70LM-85LM Phosphor Convert Color

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-5730W60-1S
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 4000pcs/Reel
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500000pcs/Day
Detail Information
Type: LED SMD 5730 Power: 0.5W
Color Range: 2700-6500K CRI: Up To 97Ra
Lumen: 70-85LM Customized: Yes
High Light:

High Voltage 5730 SMD LED Chip

,

5730 SMD LED Chip 70LM

,

High Voltage LED Chip 5730


Product Description

Led SMD White 5730 Red Green Blue and Phosphor Convert Diode LED Chip



  • Full Colors available in Red,Green,Blue,Yellow, UV,IR and Phosphor Convert Color
  • Used for LED Strips, LED Tubes, Landscape Lightings, etc.



Product Features

  • Red, Green, Blue, Yellow, Amber, Deep Red, UV, IR Colors
  • Wide Range White Color 2700K-6500K with High CRI, the max is up to 98Ra
  • High Voltage are available:3V 6V 9V 18V 36V





LED SMD 5730 Specifications



Item Power Color Range(CCT) VF(V) IF(mA) Lumen
SMD5730

White
0.5W 2600-20000K 3.0-3.4V 150mA 55-60LM
60-65LM
65-70LM
70-85LM
SMD5730

Single Color
0.5W RED 620-630 2.0-2.4V 150mA 20-25LM
Plant growth Red 640-660 8-10LM
Yellow 590-600 18-20LM
20-25LM
Green 520-530 3.0-3.4V 30-35LM
Blue 460-470 9-11LM
12-14LM
UV 390-400 2-3LM
Pink 35-40LM
Ice Blue 35-40LM
Amber/Gold Yellow1700-1900K 50-55LM



High Voltage 5730 SMD LED Chip Specifications



Voltage(VF) Power (W) CCT(K)) Current(mA) Brightness
(LM))
6V 0.5W 2800-6500K 90mA 65-70LM
1W 150mA 120-130LM
1W 150mA 130-140LM
1W 150mA 140-160LM
9V 0.5W 60mA 65-70LM
1W 100mA 120-130LM
18V 0.5W 30mA 65-70LM
1W 60mA 120-130LM
36V 1W 30mA 120-130LM





High Efficiency LED SMD 5730 0.5W Test Report @65mA 90Ra



High Voltage 5730 SMD LED Chip 70LM-85LM Phosphor Convert Color 0



Delivery



High Voltage 5730 SMD LED Chip 70LM-85LM Phosphor Convert Color 1



FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .



Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
