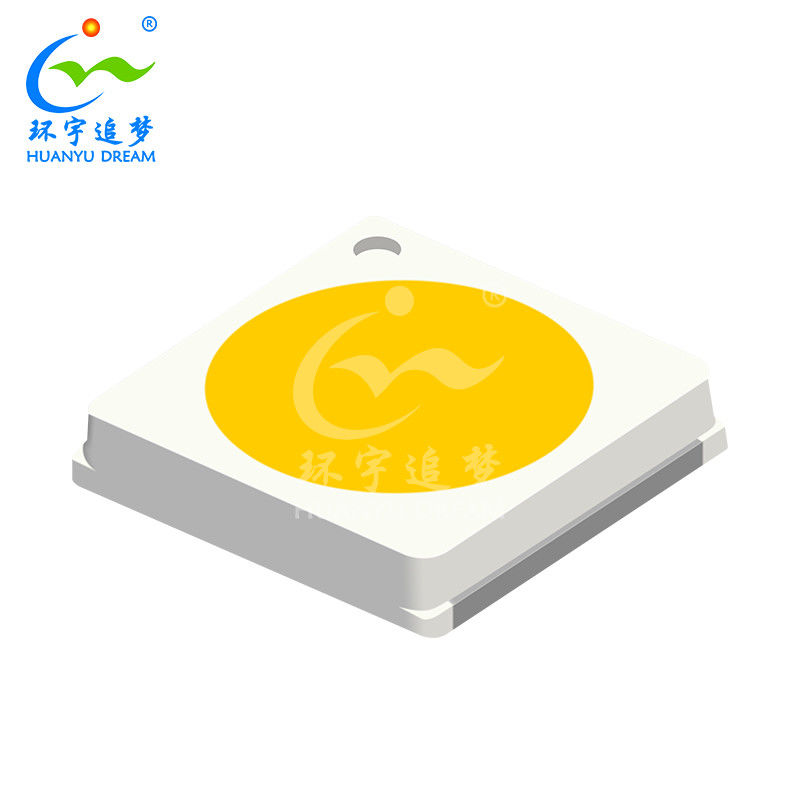

3030 Smd Led Features
The White LED which was fabricated using a blue chip and phosphor.
* PLCC-2 Package.
* Extremely wide viewing angle.
* Available on tape and reel.
* Suitable for all SMT assembly and solder process.
* RoHS compliant.
* Package:5000pcs/reel.
* Moisture sensitivity level: 3.
3030 Smd Led Package Dimension
NOTES:
1.All dimensions units are mm.
2.All dimensions tolerances are 0.1mm unless otherwise noted.
3030 Smd Led Details
Electrical - Optical Characteristics at Ta=25℃
| Type |
Symbol |
Test condition |
Value |
Unit |
| Min. |
Typ. |
Max. |
| Forward Voltage |
VF |
IF=150mA |
6.0 |
-- |
6.4 |
V |
| 3000K-3100K |
φ |
IF=150mA |
140 |
-- |
150 |
Lm |
| 3100K-4050K |
φ |
IF=150mA |
150 |
-- |
165 |
Lm |
| 4050K-7000K |
φ |
IF=150mA |
165 |
-- |
175 |
Lm |
| Reverse Current |
IR |
VR=10V |
-- |
-- |
1 |
uA |
| Viewing Angle |
2θ1/2 |
IF=150mA |
|
120 |
|
Deg |
| Color Rendering Index |
CRI |
IF=150mA |
80 |
-- |
83 |
-- |
| Thermal resistance |
Rth(j-s) |
IF=150mA |
-- |
-- |
28 |
℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter |
Symboy |
Rating |
Units |
| Power Dissipation |
Pd |
1080 |
mW |
| Forward Current |
IF |
150 |
mA |
| Peak Forward Current |
IFP |
180 |
mA |
| Reverse Voltage |
VR |
20 |
V |
| Junction temperature |
Tj |
115 |
℃ |
| Solder temperature |
Ts |
260 |
℃ |
| Operating Temperature |
Topr |
-40 ~ + 100 |
℃ |
| Storage Temperature |
Tstg |
-40 ~ + 100 |
℃ |
| Electrostatic Discharge(HBM) |
ESD |
2000 |
V |
3030 Smd Led Applications
* Indoor/outdoor lighting.
* Bulb lighting.
* fluorescent lamp
* General use.
