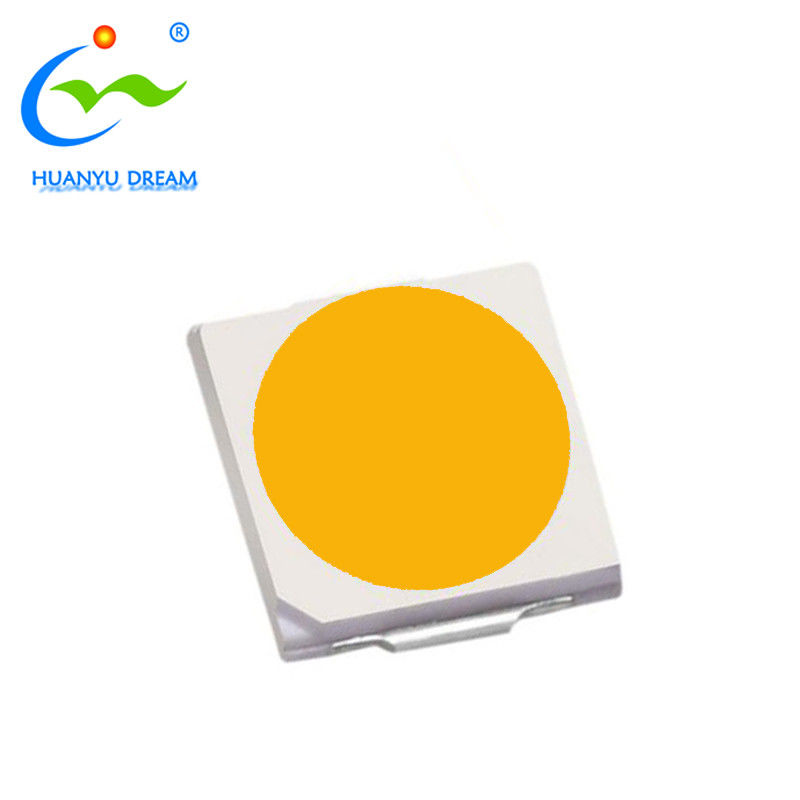

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip

Basic Information
Place of Origin: Guangdong,China
Brand Name: Huanyu Dream
Certification: RoHS
Model Number: HY-3030Y590L130-2S
Detail Information
Product Name: 3030 SMD Led Chips Yellow Lifespan: 50,000 Hours
Application: Indoor/outdoor Lighting Material: Aluminum
Current: 300 MA Wave Length: 590-959 Nm
Package: 5000pcs/reel
High Light:

1W Light Emitting Diode Chip

,

595nm Light Emitting Diode Chip

,

3030 LED CHIP 1W 3V


Product Description

1W 590-595 Nm Yellow 3030 Smd Led 3v 300mA With 3 Years Warranty

The 3030 SMD LED Chip Specification

It is a light emitting diode (LED) chip designed for use in a wide range of indoor outdoor lighting applications. It features a voltage range of 3.0-3.4V and a 3-year warranty, making it the ideal solution for indoor lighting projects. This 3030 SMD LED Chip is available in a range of color temperatures, ranging from 2700K to 6500K, making it a versatile and energy-efficient lighting solution.

The 3030 SMD LED Chip offers a number of advantages, including its small size and low power consumption. This makes it perfect for applications where space is limited and energy efficiency is paramount. The chip also offers superior light output, making it ideal for applications such as area lighting, task lighting, and accent lighting.

The 3030 SMD LED Chip is an ideal option for any indoor lighting project. It is designed to provide superior light output, a wide range of color temperatures, and a long-lasting 3-year warranty. This chip is perfect for any indoor outdoor lighting application, from task lighting to area lighting and accent lighting.







3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 0

The 3030 SMD LED Chip Features:

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 1

  • Product Name: 3030 SMD LED Chip
  • View Angle: 120°
  • Material: Aluminum
  • Warranty: 3 Years
  • Voltage: 3.0-3.4V




​The 3030 SMD LED Chip Technical Parameters:

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 2

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 3

Electrical - Optical Characteristics at Ta=25℃

Type

Symbol

Test condition

Value

Unit

Min. Typ. Max.
Forward Voltage VF IF=300mA 3.0 -- 3.4 V
Luminous Flux φ IF=300mA 110 -- 130 Lm
Dominant Wavelength λD IF=300mA 590 -- 595
Reverse Current IR VR=5V -- -- 1 uA
Viewing Angle 2θ1/2 IF=300mA   120   Deg
Thermal resistance Rth(j-s) IF=300mA -- -- 28 ℃/W





Absolute Maximum Ratings at Ta=25℃

Parameter  Symbol Rating Units
Power Dissipation  Pd 1000 mW
Forward Current  IF 300 mA
Peak Forward Current  IFP 350 mA
Reverse Voltage  VR 5 V
Junction temperature  Tj 115
Solder temperature  Ts 260
Operating Temperature  Topr -40 ~ + 100
Storage Temperature  Tstg -40 ~ + 100
Electrostatic Discharge(HBM)  ESD 2000 V







Package Dimension

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 4





Packaging Specifications



  • The LEDs are packed in cardboard boxes after taping



  • Carrier Tape Dimensions (Units:mm)



3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 5



Reel Dimension

3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 6







The 3030 SMD LED Chip Applications:


Product Application
Garden lights
Landscape lightingSecurity lighting
Amber warning lights
Ambulance light
Police car lights
Signal lights
Phosphor-converted amber (pca) led street lights





3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 7



3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 8










3030 LED CHIP 1W 3V 590-595nm Light Emitting Diode Chip 9
