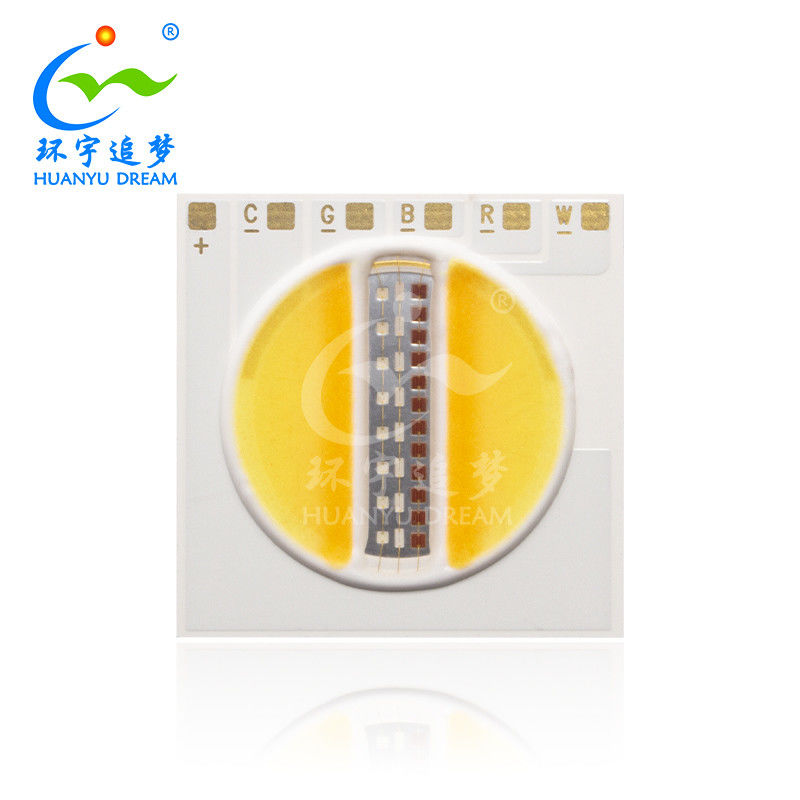

RGBCW RGBWW Dimmable COB LED 25W 19*19mm Customizable

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: Rohs
Model Number: HY-1917RGBCW-25W
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 25pcs/Tray
Delivery Time: 7-9 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 500K/Month
Detail Information
Type: 1919 RGBCW LED COB Chip Power: 25W
Size: 19*19mm Color Temperature: RGB+2700/6500K
Voltage: 20-24V Warranty: 3 Years
Customizable: Support
High Light:

RGBWW Dimmable COB LED

,

Dimmable COB LED 25W


Product Description

RGBWW RGBCW COB LED 1919 25W Tunable Led Chip



5 in 1 RGBCW LED COB Chip design advantages

  • RGBCW COB LED Chip combined 5 colors  in 1 LED Chip
  • RGBCW COB LED is with Common Anode design and it's more convenient for color dimming
  • Adjustable CCT Dynamic COB LED Chip have advantages in space utilization, efficiency, control, diversity and reliability, and can better meet the needs of different applications
  • Availiable with 1313/ 4021/ 4026 RGBW
  • Ra80 Ra90 Ra95, max Ra98
  • Customize made according to your request



Item
Power
Color
Voltage
Current
Wd/CCT
Series/
Parallel
Brighness
CRI



1919
RGB+WW
       +CW
COB LED






25W
Red






20-24V





150mA
620-625nm
10S1P
190-220LM
/
Green
520-525nm
7S1P
200-250LM
/
Blue
460-465nm
7S1P
50-70LM
/



WW




300mA



2700K

 7S4P

700-900LM
80
CW
6500K
7S4P
800-1000LM
80



Details



RGBCW RGBWW Dimmable COB LED 25W 19*19mm Customizable 0
RGBCW RGBWW Dimmable COB LED 25W 19*19mm Customizable 1



FAQ:

Q1: the price are based on FOB price?

A1: Sorry, The quote are based on EXW,Shipping Cost is not included.



Q2: How to proceed an otder for led light

A2: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.



Q3: What about the production times?

A3: The regular models are in stock, it can be shipped within 2days. Mass Production about 7-10work days.



Q4:How to deal with faculty?

A4:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q4: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-6 days to arrive. but if you have the agent in China , it will be better.
