Detail Information

Product Name:	1919 Bi-color COB	Series:	CW: 8S2P WW:8S2P
CRI:	90	Current:	300 MA
Voltage:	20-24	CCT:	2100K-2300K/65000K-6900K
Power:	8W+8W	Warranty:	3 Years
High Light:	1919 Bi-Color COB LED , Bi-Color COB LED Chip

Product Description

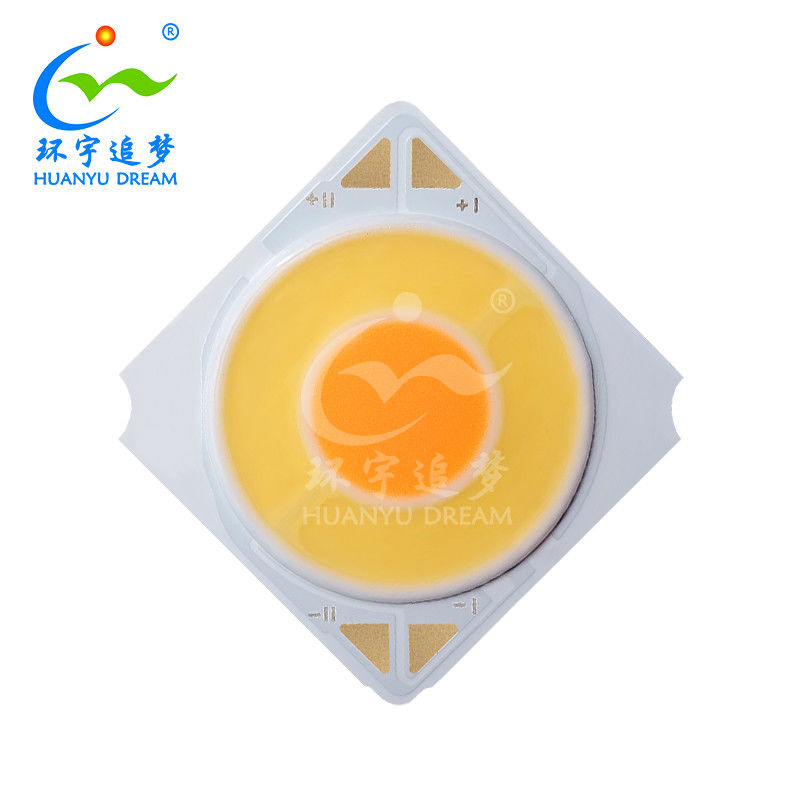

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA With 800-1100lm Output

1919 Bi-color COB Led Chip

* The White LED which was fabricated using a blue chip and phosphor

* Size (mm):19.×19.0×1.5

* CRI: 90

* Wide viewing angle : 120°

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

1919 Bi-color COB Led Chip Package Dimension

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 0

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 2

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 3

25PCS/Tray 4Tray/ESD Shieding Bag:100pcs

1919 Bi-color COB Led Chip Details

Electrical - Optical Characteristics at Ta=25℃

Type	Symbol	Test condition	Value			Unit
			Min.	Typ.	Max.
Forward Voltage	VF	IF=300mA	20	22	24	V
2100K-2300K	φ	IF=300mA	550	--	750	Lm
65000K-6900K	φ	IF=300mA	800	--	1100	Lm
Viewing Angle	2θ1/2	IF=300mA		120		Deg
Color Rendering Index	CRI	IF=300mA	90	--	83	--
Thermal resistance	Rth(j-s)	IF=300mA	--	--	0.67	℃/W

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 4

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	8*2W	W
Forward Current	IF	300	mA
Peak Forward Current	IFP	400	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

Optica Characteristic curve

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 6

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 7

8W+8W 1919 Bi-Color COB LED Chip High CRI 90 300mA 800lm-1100lm 8

1919 Bi-color COB Led Chip Applications
