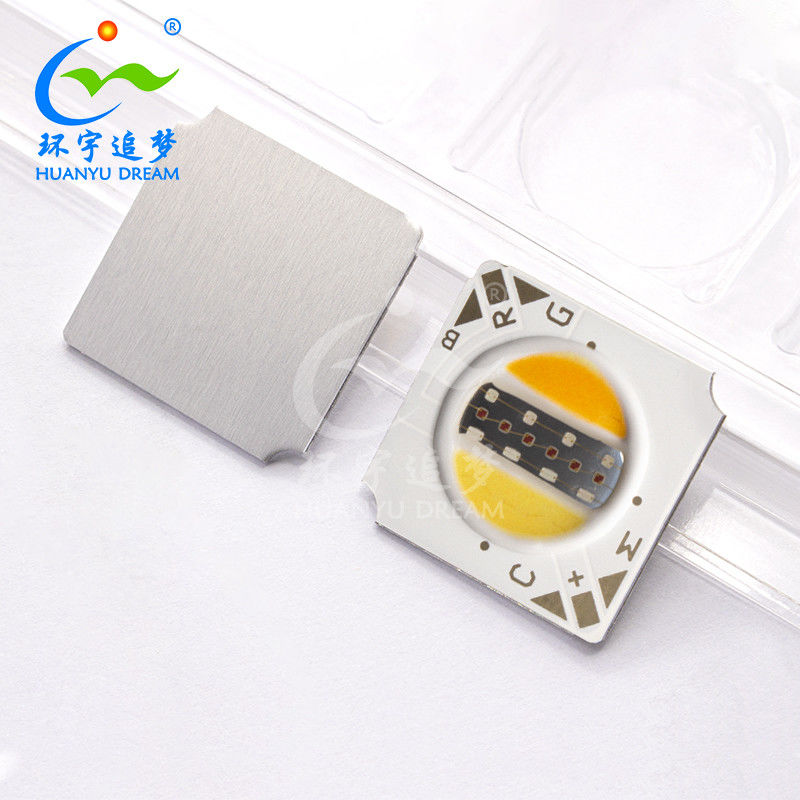

13*13mm RGBCW COB LED Chip 10W 12V 5 Colors In 1 COB Package
Product Features
Dimension 13.5mm×13.5mm×1.5mm
Wide viewing angle : 120°
RoHS compliant
sulphation corrosion resistance
Manual Soldering
RGBCW COB LED Chips Specification
| Item |
Power |
Color |
Voltage |
Current |
Wd/CCT |
Series/
Parallel
|
Brighness |
CRI |
|
1313 COB LED
RGB+WW+CW
|
9W
|
Red |
10-12V
|
150mA
|
620-625nm |
6S1P |
110-120LM |
/ |
| Green |
520-525nm |
4S1P |
120-130LM |
/ |
| Blue |
460-465nm |
4S1P |
40-50LM |
/ |
| WW |
2700K |
4S1P |
210-230LM |
90 |
| CW |
6000K |
4S1P |
190-210LM |
90
|
|
1919 COB LED
RGB+WW+CW
|
|
Red |
20-24 |
150mA |
620-630nm |
10S1P |
190-220LM |
/ |
| Green |
520-530nm |
7S1P |
220-250LM |
/ |
| Blue |
460-465nm |
7S1P |
50-70LM |
/ |
| WW |
300mA |
2700K |
7S2P |
700-900LM |
90 |
| CW |
6000K |
7S2P |
800-1000LM |
90 |
 |
|
|
1313 COB LED RGB+WW+CW
|
1919 COB LED RGB+WW+CW
|
Product Details
| Product Name |
1313 RGBCW COB |
| Model Number |
JC-1311RGBCW-2760-9-F0 |
| Dimension |
13.5mm×13.5mm×1.5mm |
| Color Temperature |
2700K+6000K |
| Input Voltage(V) |
12V |
| CCT |
R+G+B+CW+WW |
| Application |
Smart lighting |
Electrical - Optical Characteristics at Ta=25℃
|
Type
|
Symbol
|
Test condition
|
Value
|
Unit
|
|
Min.
|
Typ.
|
Max.
|
|
WaveLength(B)
|
λd
|
IF=150mA
|
460
|
--
|
465
|
nm
|
|
WaveLength(R)
|
λd
|
IF=150mA
|
620
|
--
|
625
|
nm
|
|
WaveLength(G)
|
λd
|
IF=150mA
|
520
|
--
|
525
|
nm
|
|
Correlated Colour Temperature
|
CCT
|
IF=150mA
|
2600
|
2700
|
2800
|
k
|
|
5800
|
6000
|
6200
|
|
Luminous Flux(B)
|
φv
|
IF=150mA
|
40
|
|
50
|
LM
|
|
Luminous Flux(R)
|
φv
|
IF=150mA
|
110
|
|
120
|
LM
|
|
Luminous Flux(G)
|
φv
|
IF=150mA
|
120
|
|
130
|
LM
|
|
Luminous Flux(C)
|
φv
|
IF=150mA
|
190
|
|
210
|
LM
|
|
Luminous Flux(W)
|
φv
|
F=150mA
|
210
|
|
230
|
|
|
Forward Voltage(B)
|
VF
|
IF=150mA
|
12
|
|
14
|
V
|
|
Forward Voltage(R)
|
VF
|
IF=150mA
|
12
|
|
14
|
V
|
|
Forward Voltage(G)
|
VF
|
IF=150mA
|
11
|
|
13
|
V
|
|
Forward Voltage(C)
|
VF
|
IF=150mA
|
12
|
|
14
|
V
|
|
Forward Voltage(W)
|
VF
|
IF=150mA
|
12
|
|
14
|
V
|
|
Color Rendering Index
|
CRI
|
IF=150mA
|
90
|
--
|
93
|
--
|
|
Power(B)
|
PD
|
IF=150mA
|
|
2
|
|
W
|
|
Power(R)
|
PD
|
IF=150mA
|
|
2
|
|
W
|
|
Power(G)
|
PD
|
IF=150mA
|
|
2
|
|
W
|
|
Power(C)
|
PD
|
IF=150mA
|
|
2
|
|
W
|
|
Power(W)
|
PD
|
IF=150mA
|
|
2
|
|
W
|
|
Thermal resistance
|
Rth(j-s)
|
IF=150mA
|
--
|
--
|
0.85
|
℃/W
|
Absolute Maximum Ratings at Ta=25℃
|
Parameter
|
Symbol
|
Rating
|
Units
|
|
Junction temperature
|
Tj
|
115
|
℃
|
|
Solder temperature
|
Ts
|
350
|
℃
|
|
Operating Temperature
|
Topr
|
-40 ~ + 85
|
℃
|
|
Storage Temperature
|
Tstg
|
-40 ~ + 100
|
℃
|
Packaging Specifications
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
