Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color

Basic Information
Place of Origin: China
Brand Name: HuanYu Dream
Certification: RoHS
Model Number: HY-1917D2170
Minimum Order Quantity: 1piece
Price: Negotiated
Packaging Details: 25 pcs/Tray
Delivery Time: 10-15 Work Days
Payment Terms: T/T, Paypal,Ali Pay
Supply Ability: 30000 units per day
Detail Information
Product Name: 1919 COB Double CCT Series: CW: 8S4P WW:8S4P
CRI: 90 Current: 450 MA
Voltage: 22-26 CCT: 2100K-5000K/5000K-7000K
Power: 10W*2 Warranty: 3 Years
High Light:

each channel 10w chip cob led

,

1919 chip cob led

,

bi color 10w cob led chip


Product Description

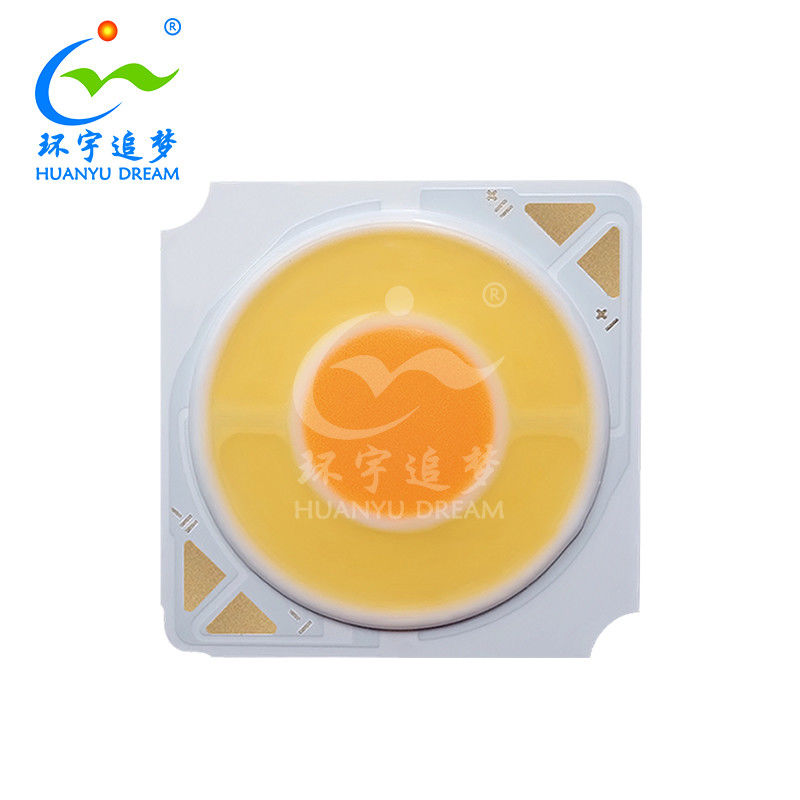

COB LED Each channel 10W double CCT 2100-7000K 1919 Bi-Color COB





1919 Bi-Color COB



* Size (mm):19.×19.0×1.5

* CRI:  90

* Wide viewing angle : 120°

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

The White LED which was fabricated using a blue chip and phosphor

Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 0



1919 Bi-Color COB Package Dimension



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 1Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 2



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 3



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 4





       25PCS/Tray                                           4Tray/ESD Shieding Bag:100pcs















1919 Bi-Color COB Details



Electrical - Optical Characteristics at Ta=25℃



Type Symbol Test condition Value Unit
      Min. Typ. Max.
Forward Voltage VF IF=300mA 20 22 24 V
2100K-2300K φ IF=300mA 550 -- 750 Lm
65000K-6900K φ IF=300mA 800 -- 1100 Lm
Viewing Angle 2θ1/2 IF=300mA   120   Deg
Color Rendering Index CRI IF=300mA 90 -- 83 --
Thermal resistance Rth(j-s) IF=300mA -- -- 0.67 ℃/W













Absolute Maximum Ratings at Ta=25

Parameter  Symbol Rating Units
Power Dissipation  Pd 8*2W W
Forward Current  IF 300 mA
Peak Forward Current  IFP 400 mA
Junction temperature  Tj 115
Solder temperature  Ts 350
Operating Temperature  Topr -40 ~ + 85
Storage Temperature  Tstg -40 ~ + 100

















Optica Characteristic curve

Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 5





Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 6



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 7



















1919 Bi-color COB Led Chip Applications



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 8



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 9



Each Channel 10w Chip Cob Led Double Cct 2100-7000k 1919 Bi Color 10
