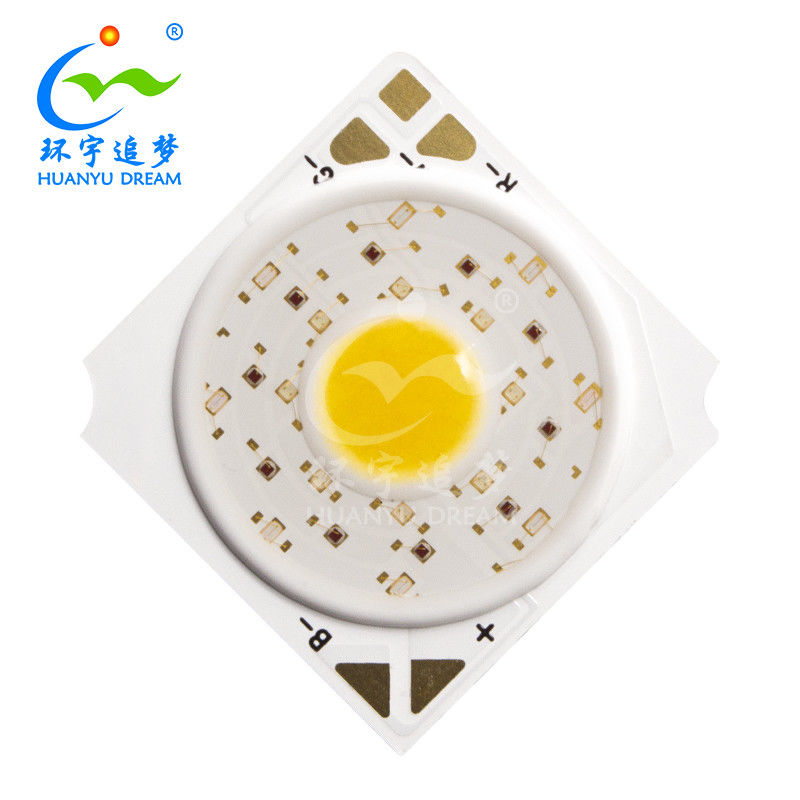

Name: 1919 RGBW 4IN1 COB LED Chip 20-24V 20W 120 Degree View Angle
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-1917RGBW-63-20W
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HuanYu Dream

Certification: Rohs

Model Number: HY-1917RGBW-63-20W

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: 25pcs/Tray

Delivery Time: 7-9 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 500K/Month

Get Best Price

Product Details

Product Description

Highlight:

Size:	19*19mm	Type:	RGBW LED COB Chip
Power:	20W	Voltage:	20-24V
White CCT:	6300-6700K	CRI:	80
View Angle:	120 Degree	Warranty:	3 Years

Size:	19*19mm
Type:	RGBW LED COB Chip
Power:	20W
Voltage:	20-24V
White CCT:	6300-6700K
CRI:	80
View Angle:	120 Degree
Warranty:	3 Years

1919 RGBW 4IN1 COB LED Chip 20-24V 20W 120 Degree View Angle

Package Dimension(Units:mm)

1919 RGBW 4IN1 COB LED Chip 20-24V 20W 120 Degree View Angle 0

RGBW LED COB Chip Specifications

Type	Symbol	Test condition	Value			Unit
			Min.	Typ.	Max.
WaveLength(B)	λd	IF=150mA	460	--	465	nm
WaveLength(R)	λd	IF=150mA	620	--	630	nm
WaveLength(G)	λd	IF=150mA	520	--	530	nm
Correlated Colour Temperature W	CCT	IF=300mA	6300		6700	K
Luminous Flux(B)	φv	IF=150mA	50		100	LM
Luminous Flux(R)	φv	IF=150mA	150		200	LM
Luminous Flux(G)	φv	IF=150mA	190		240	LM
Luminous Flux(W)	φv	IF=300mA	550		650	LM
Forward Voltage(B)	VF	IF=150mA	20		24	V
Forward Voltage(R)	VF	IF=150mA	20		24	V
Forward Voltage(G)	VF	IF=150mA	20		24	V
Forward Voltage(W)	VF	IF=300mA	20		24	V
Thermal resistance	Rth(j-s)	IF=150mA	--	--	0.85-2	℃/W

4 in 1 RGBCW LED COB Chip Applications

Indoor and Outdoor Lighting
Decorative Lighting
Can also be applied in Smart Lights, Stage Lights and other fields

FAQ

Q1. Can I order a sample ?

A: Of course,if you need it,you can order a sample by Alibaba.we will ship this sample at once.

Q2. Do you have an approximate delivery date for me please?

A: Sure,we will check the situation of production line and get back to you with an approximate date.

Q3. What is the minimum order quantity limit for led chips?How can I pay?

A: Frist,we haven't MOQ limit.If you think our products are good,we will discuss the MOQ limit again.

We accept all ways payment.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx . It usually takes 4-5 days to arrive. Airline and sea shipping also optional.
